SMC Networks EX245-FPS1 User Manual

- 24 -
No.EX##-OMY0004
6. Valve Manifold
The EX245 PROFIsafe product series can be used with various valve manifolds.
For full details refer to the respective product documentation.
Pin No.
Valve Zone
Signal Name
Function
1
Common
M OUT 1
Common 0 V when non-error
2
3
Zone 1
P OUT 1
Power when zone 1 active
4
SOL 0
Power when zone 1 active and output 0
···
···
···
11
SOL 7
Power when zone 1 active and output 7
12
Zone 2
P OUT 2
Power when zone 2 active
13
SOL 8
Power when zone 2 active and output 8
···
···
···
20
SOL 15
Power when zone 2 active and output 15
21
Zone 3
P OUT 3
Power when zone 3 active
22
SOL 16
Power when zone 3 active and output 16
···
···
···
29
SOL 23
Power when zone 3 active and output 23
30
N. C.
N. C.
···
34

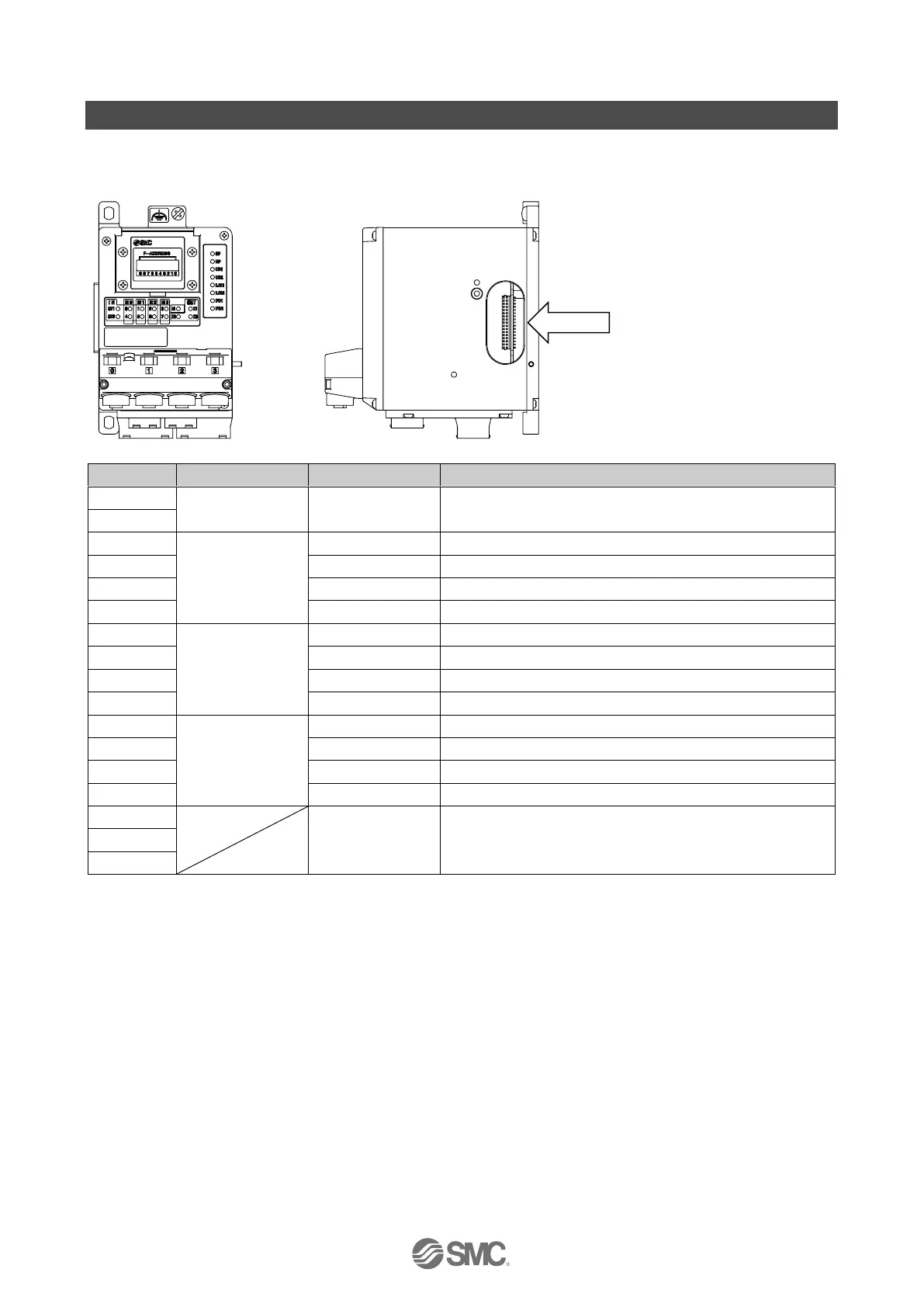

Fig. 6-1 Connector pin assignment for Valve manifold
Pin assignments for this connector
are shown in the table below
