- 72 -
No.EX##-OMY0004
11.3. Wiring
Caution
●To prevent damage, all power for the SI Unit and modules must be turned off (i.e. de-energized) before
the modules are installed or removed.
●For a protection rating of IP65 to be ensured, sockets that are not used must be closed with M12 covering
caps.
●For a protection rating of IP65 to be ensured, all covering caps must be screwed down correctly after
wiring and setting have been performed.

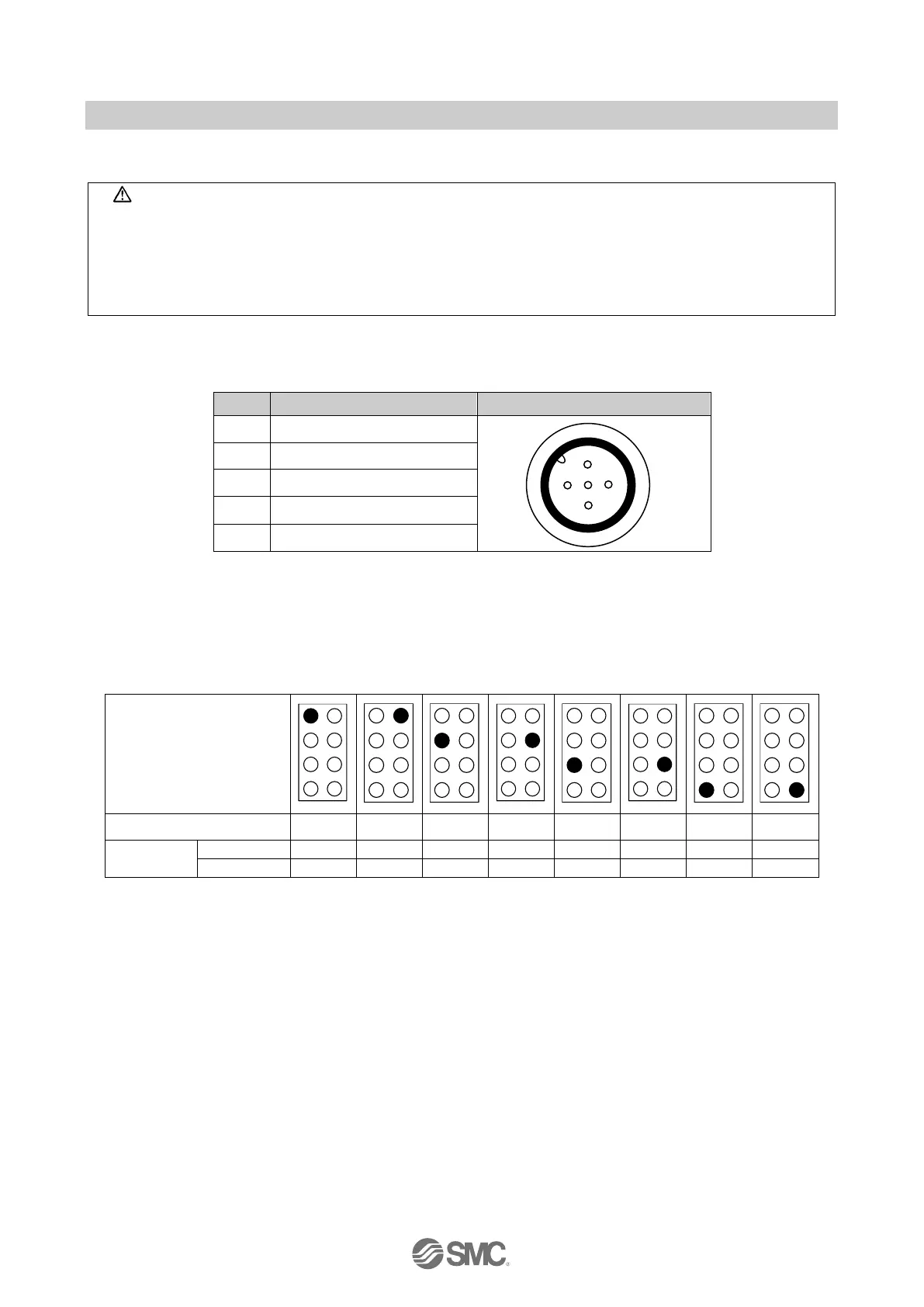

Pin allocation of the M12, 5-way socket connector as shown in the following table:
Table 11-2 Pin allocation of the connector for EX245-DX1
Pin
Allocation
View of connector (module side)
1
24 V
2
DI (input signal “n+1”)
3
0 V (US1)
4
DI (input signal “n”)
5
FE/Shield
11.4. Process data
The EX245-DX1 occupies 2 bytes of input data. The following table shows the allocation of the digital inputs
and the process image.
Table 11-3 Digital input allocation and the process data
Connector position
Connector designation
0
1
2
3
4
5
6
7
Input
Pin 2
Bit 1
Bit 3
Bit 5
Bit 7
Bit 9
Bit 11
Bit 13
Bit 15
Pin 4
Bit 0
Bit 2
Bit 4
Bit 6
Bit 8
Bit 10
Bit 12
Bit 14
1
2
4
3
5
