SMC Networks EX245-FPS1 User Manual

- 65 -
No.EX##-OMY0004

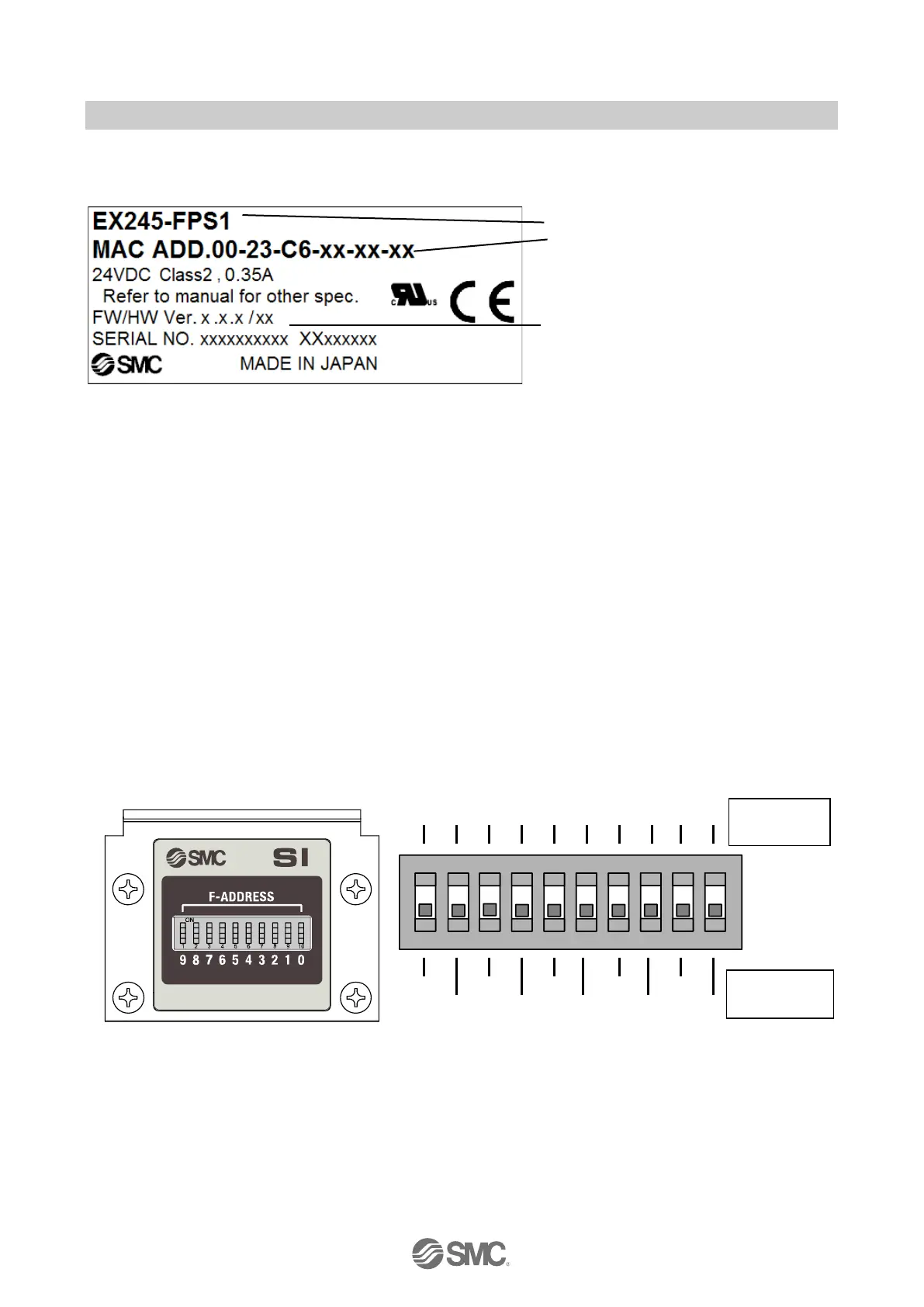

10.10. Production label
 Firmware version (FW) : 2.1.X
 Hardware version (HW): 03 and higher
Fig. 10-6 Production label
10.11. DIP Switches
10.11.1. PROFIsafe address switch
A ten bit DIP-Switch is provided for the safety address setting. The switch setting is only checked at
power-up. Any changes made during operation are ignored and may lead to problems during the next
power-up sequence
Using the DIP switches:
・ Unscrew the cover and hinge it upwards.
・ The DIP switches can be adjusted with a small flat-blade screwdriver.
・ Tighten the cover again, making sure that the seals are positioned correctly. (torque = 0.3 Nm)
Fig. 10-7 PROFIsafe address switch
Note:
The F-Address bit numbering shown on the label has priority over any numbers printed on the DIP switch e.g. in the example above
the DIP switch is printed with numbers 1 to 10 where 1 is on left and 10 is on the right. In this case the numbers are provided for
reference only and play no part in the address numbering.
The default state (factory setting) for this DIP switch is all OFF.
Product number
MAC address
Firmware and Hardware version
9
8
7
6
5
4
3
2
1
0
O N
1 2 3 4 5 6 7 8 9 10
512
256
128
64
32
16
8
4
2
1
F-Address
bit No.
F-Address
value
