SMC Networks EXW1-BMJA Series User Manual

-18-
No.EX※※-OMZ0016
LED

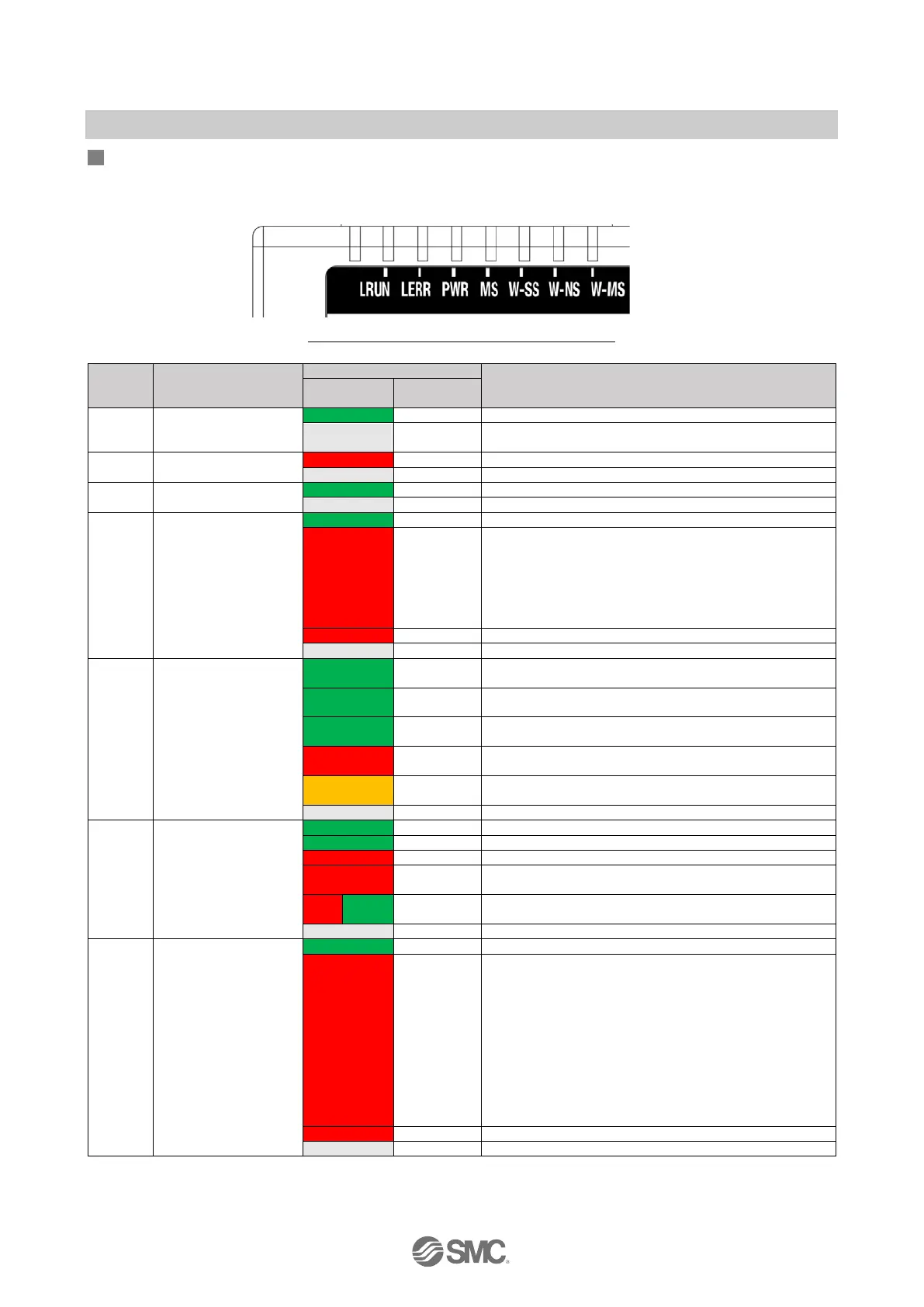

The LED indicators at the top left corner of the compact wireless Base indicate the power supply,
communication and diagnostic status.
LED indicators of the compact wireless Base
LED
name
Function
LED status
Description
Colour of
LED
ON/Flashing
LRUN
Data link status
indication
Green
ON
Communication is normal
- OFF
Communication is not established or the US1 (for control)
power supply is OFF
LERR Error status indication
Red
ON
A communication error has occurred
-
OFF
No communication error
PWR
US1 (for control) power
supply status indication
Green
ON
The US1 (for control) power supply is ON
-
OFF
The US1 (for control) power supply is OFF
MS
Base system
status indication
Green
ON
The compact wireless Base is operating normally
Red Flashing
Recoverable error is detected.
(LED flashes when more than one diagnostic information
item is detected.)
•US1 (for control) power supply voltage level is abnormal
•Number of system inputs/outputs setting error
•Network setting error
•Abnormal number of registered Remotes
Red
ON
Unrecoverable error is detected.
-
OFF
The US1 (for control) power supply is OFF
W-SS
Radio wave receiving
intensity
Green ON
The level of received radio wave power of all the connected
Remotes is 3
Green
Flashing
(1 Hz)
The level of received radio wave power of some connected
Remotes is 2
Green
Flashing
(2 Hz)
The level of received radio wave power of some connected
Remotes is 1
Red Flashing
All the Remotes that support protocol V.1.0 are not
connected
Orange Flashing
All the Remotes that support protocol V.2.0 are not
connected
-
OFF
Remote not registered
W-NS
Wireless
communication
connection status
indication
Green
ON
All the Remote connections are normal
Green
Flashing
Some Remotes are not connected
Red
Flashing
No Remotes are connected
Red ON
No Remotes are connected
(Unrecoverable error in wireless communication)
Red Green
Alternate
Flashing
Wireless communication connection is being configured
(Pairing)
-
OFF
Remote not registered
W-MS
Remote system status
indication
Green
ON
Wireless Remote is normal
Red Flashing
Recoverable error is detected.
(LED flashes when more than one diagnostic information
item is detected.)
•US1 (for control / input) power supply voltage level is
abnormal
•US2 (for output) power supply voltage level is abnormal
•Excessive I/O setting inputs/outputs
•Analog I/O upper setting limit exceeded
•Analog input range upper and lower limits exceeded
•Error in communication between units
•EX600 I/O unit detects diagnostic information
•Valve diagnostic information detected
Red
ON
Unrecoverable error is detected.
-
OFF
Remote not registered
