-20-
No.EX※※-OMZ0016
EXW1-RD*

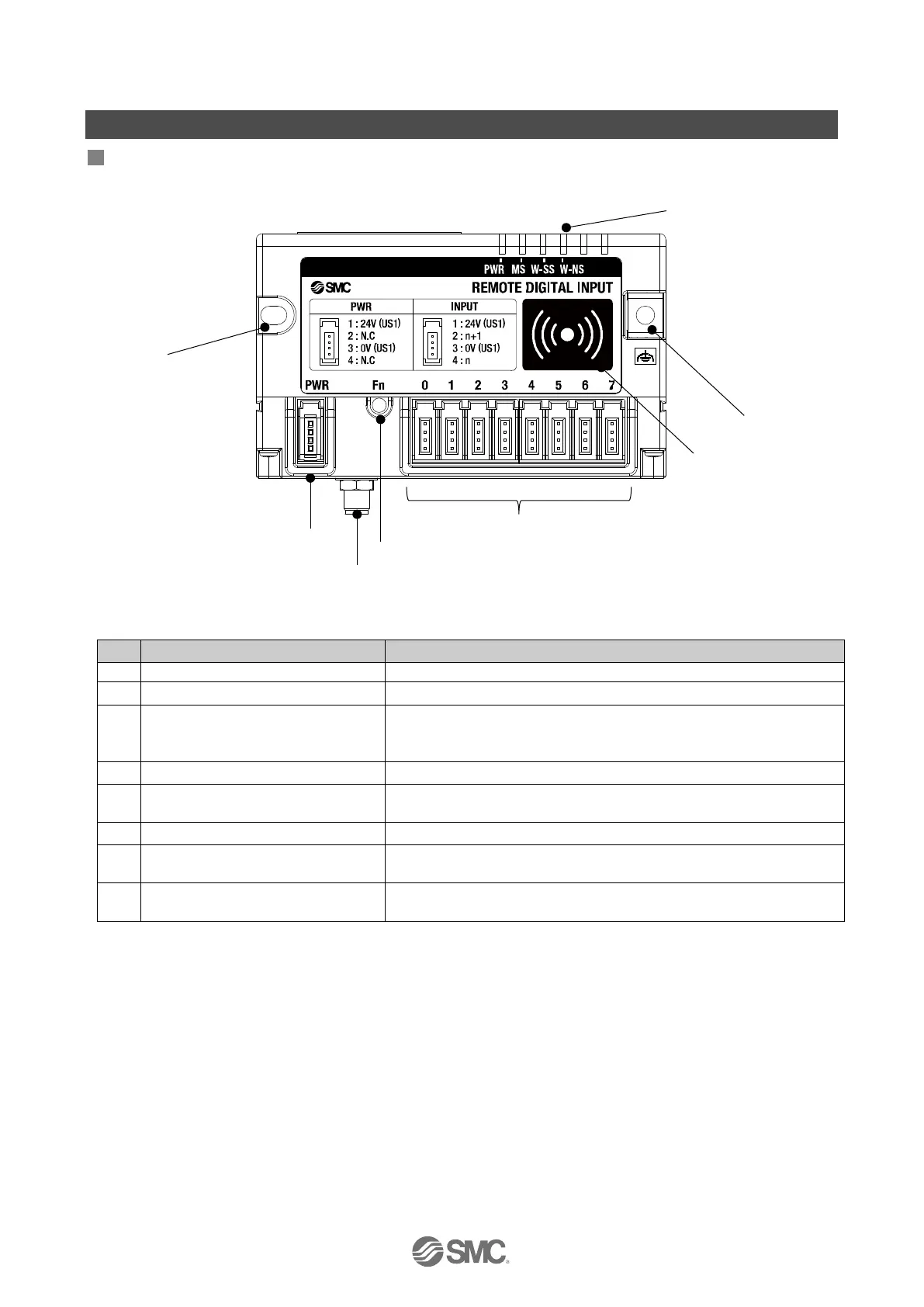

Appearance
EXW1-RDX*B*
No.
Name
Application
1
Screw hole for mounting (M4)
Mounting the compact wireless Remote.
2
PWR (Power connector)
Supplies power to the compact wireless Remote.
3
RF (SMA coaxial connector)
* Exclusive to external antenna
versions
Connector for the coaxial cable of an external antenna.
4
Fn (Pairing button)
Press the button when switching to pairing mode.
5 NFC antenna approach area
This area is in close contact with the NFC reader / writer.
"○" is the center of the NFC antenna.
6
LED
Indicates the status of the compact wireless Remote.
7
FE terminal, screw hole for
mounting (M4)
To be connected to Ground (for improved noise immunity).
This doubles as a screw hole for mounting.
8
Connector for an input device
x 8
Connector for an input device. (PIN2, PIN4: input)
①
⑤
②
③
④
⑥
⑦
⑧
