Mounting and Installation of Units
EXW1-BMJ*, EXW1-RD*
Installation
Compact wireless Base/Remote
Caution
・ To avoid damage to parts, apply the recommended tightening torque.
・ Mount the product using two screws.
2 x M4 screws are required (Recommended torque = 0.8+/-10% N･m).
Mounting
hole
Mounting
hole
Mounting hole
(FE terminal)

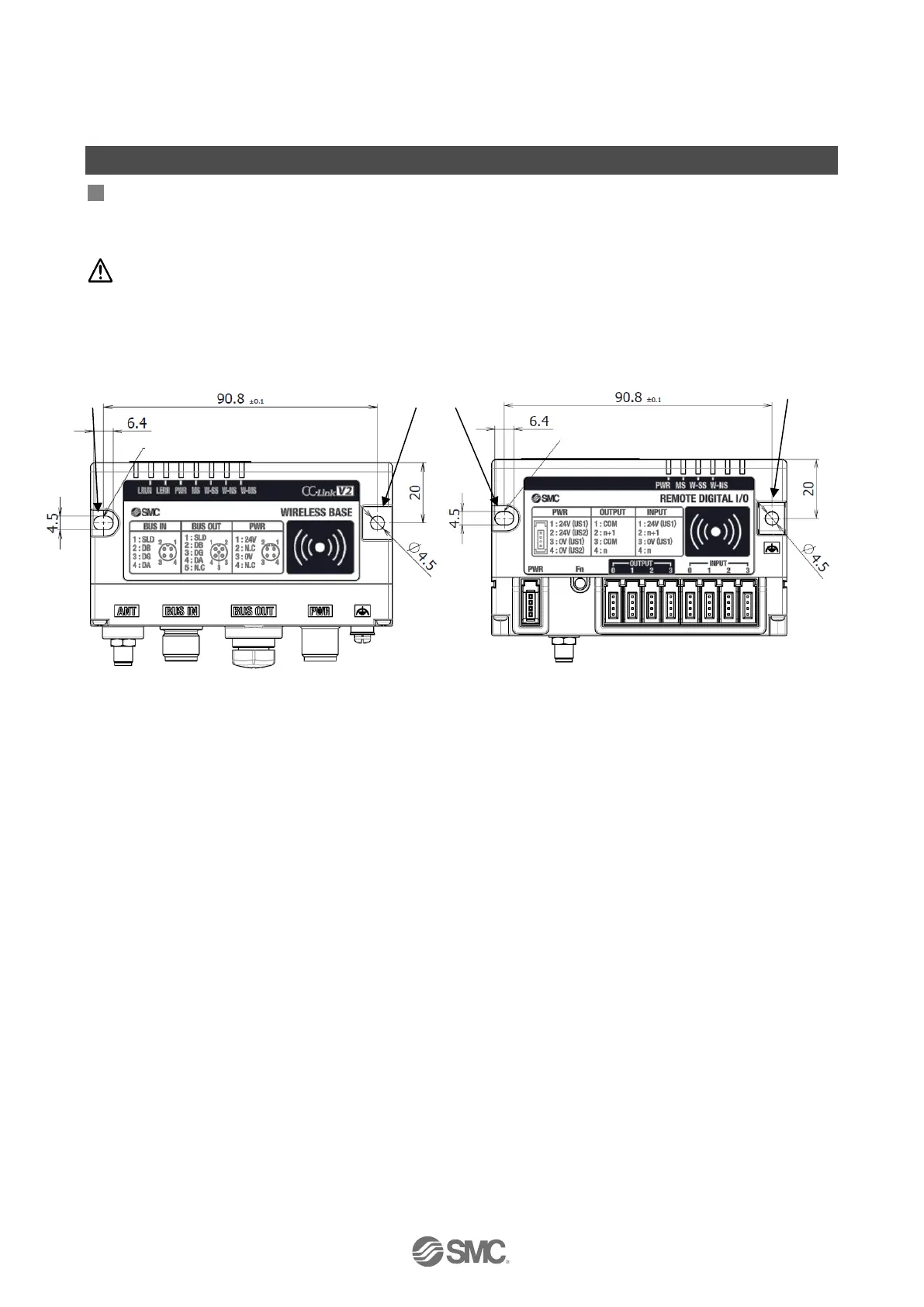

2xM4 Mounting holes
2xM4 Mounting holes
