SMC Networks EXW1-BMJA Series User Manual

-59-
No.EX※※-OMZ0016
■External Antenna
Caution
・ avoid damage to parts, apply the recommended tightening torque.
2 x M4 screws are required (Recommended torque = 1.3+/-10% N･m).
Refer to the operation manual attached to the external antenna set for details.

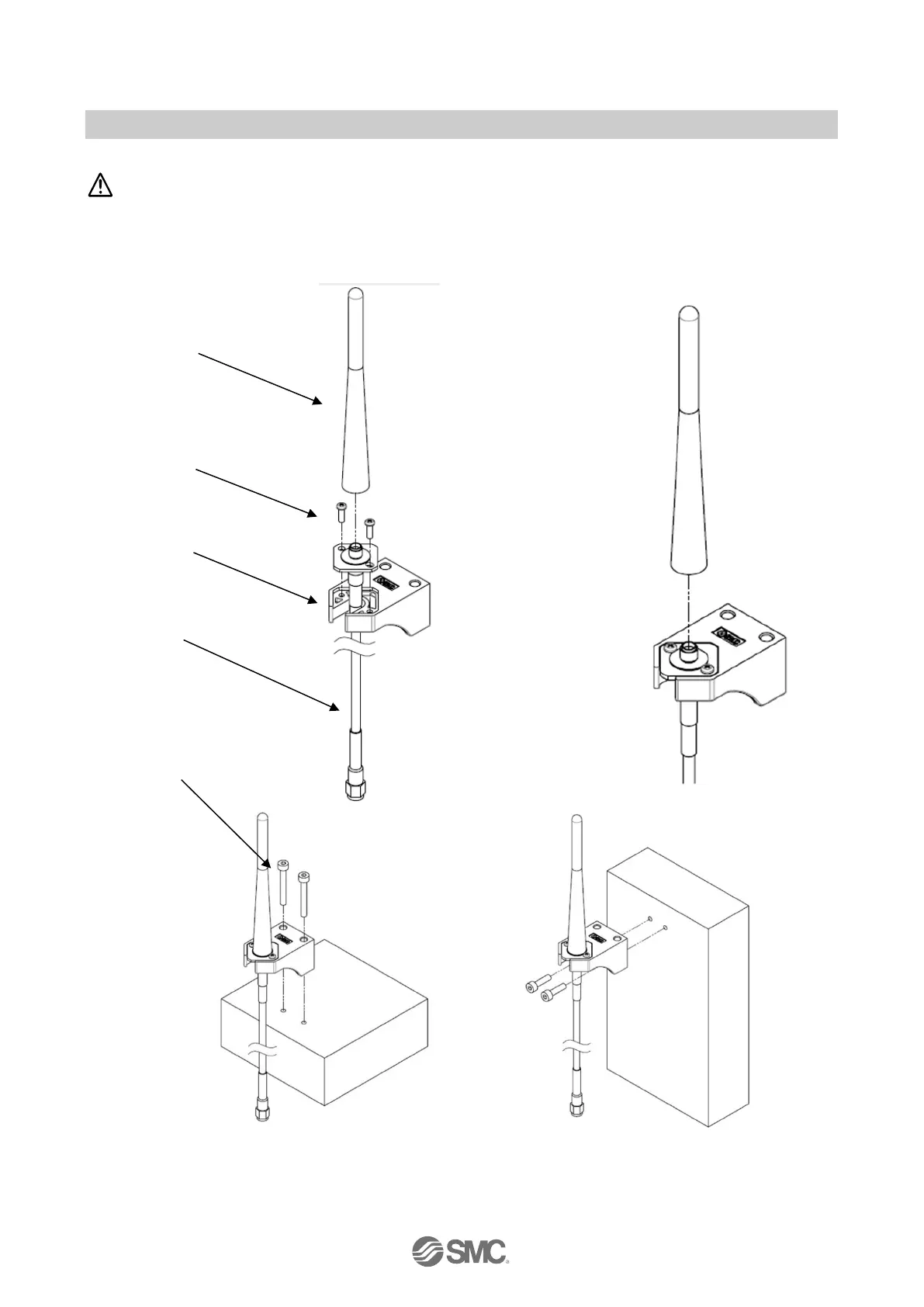

Top mounting Side mounting
Whip antenna
Included M2.6 x 8 screw: x 2
Recommended torque
0.9+/-10%N･m
Bracket
Coaxial cable
2 x M4
Recommended torque
1.3+/-10%N･m
Rotate the whip antenna clockwise
to attach it. After it comes into
contact with the gasket of the
coaxial cable pedestal, continue to
tighten it by 90 degrees clockwise.
* To ensure IP67 water and dust
resistance
