-23-
No.EX※※-OMZ0016
LED
○EXW1-RD*
The LED indicators at the top right corner of the compact wireless Remote indicate the power supply,
communication and diagnostic status.
The same LED indications are used for the EXW1-RD*.

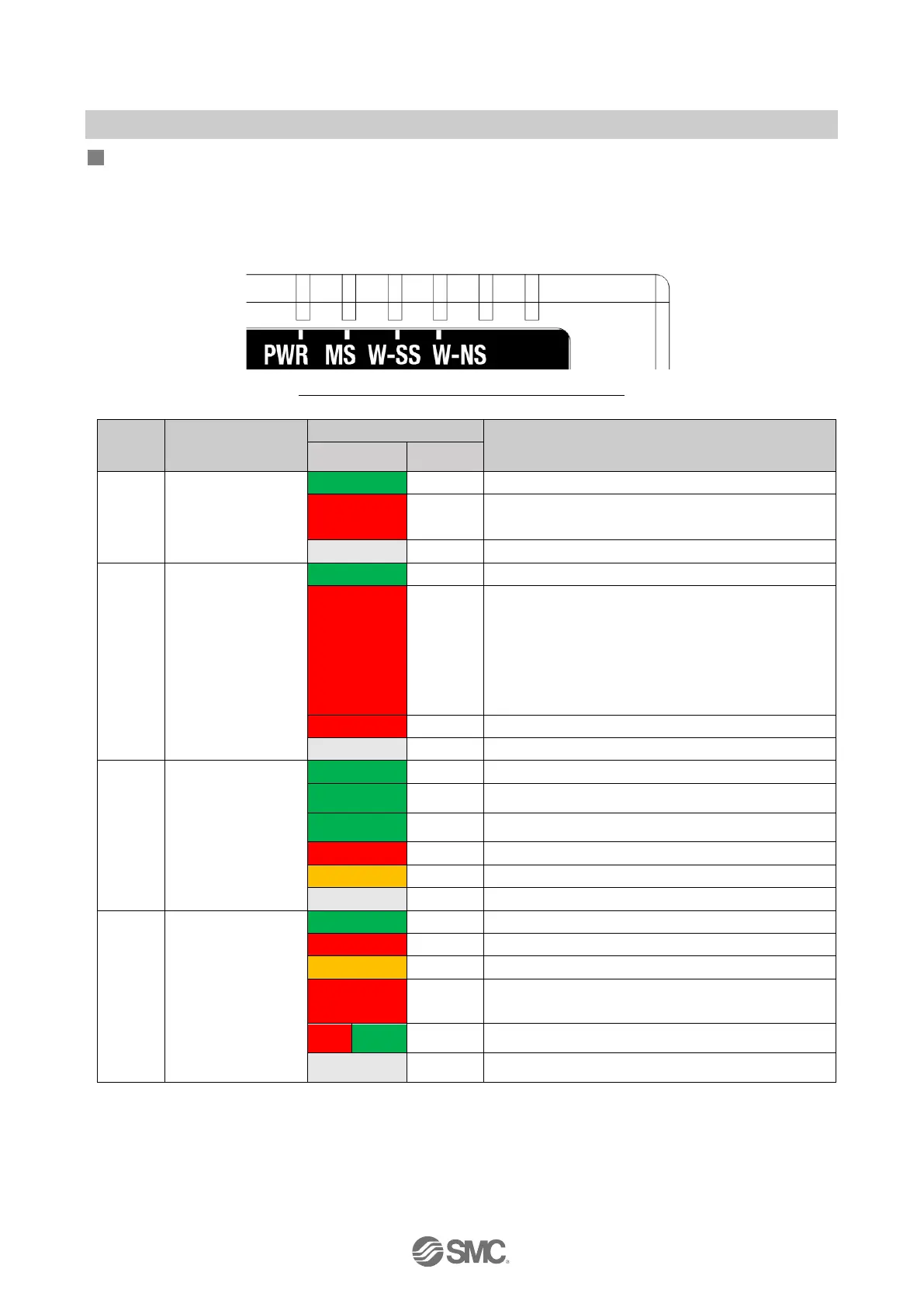

LED indicators of the compact wireless Remote
LED
name
Function
LED status
Description
Colour of LED
PWR
Indicates the power
supply voltage (US1/
US2) status
Green ON The US1 (for control / input) power supply is ON
Red Flashing
US2 (for output) power supply voltage level is abnormal
(when the setting is enabled)
- OFF The US1 (for control / input) power supply is OFF
MS Status of Remote
Green ON Operating normally
Red Flashing
Recoverable error is detected.
(LED flashes when more than one diagnostic information
item is detected.)
•US1 (for control and input) power supply voltage level is
abnormal
(when the setting is enabled)
•Short-circuit detection of the US1 (for control / input) power
supply
•Short-circuit detection of the US2 (for output) power supply
Red ON Unrecoverable error is detected.
- OFF The US1 (for control / input) power supply is OFF
W-SS
Radio wave receiving
intensity
Green ON Received radio wave intensity level 3
Green
Received radio wave intensity level 2
Green
Received radio wave intensity level 1
Red Flashing Protocol V.1.0 wireless communication is not established
Orange Flashing Protocol V.2.0 wireless communication is not established
- OFF Base not registered
W-NS
Wireless
communication
connection status
indication
Green ON Base connected correctly
Red Flashing Base not connected
Orange Flashing Pairing operation is in progress
Red ON
Base not connected (Unrecoverable error in wireless
communication)
Red Green
Wireless communication connection is being configured
(pairing)
- OFF
Base not registered
The US1 (for control / input) power supply is OFF
To Next Page
