-24-
No.EX※※-OMZ0016

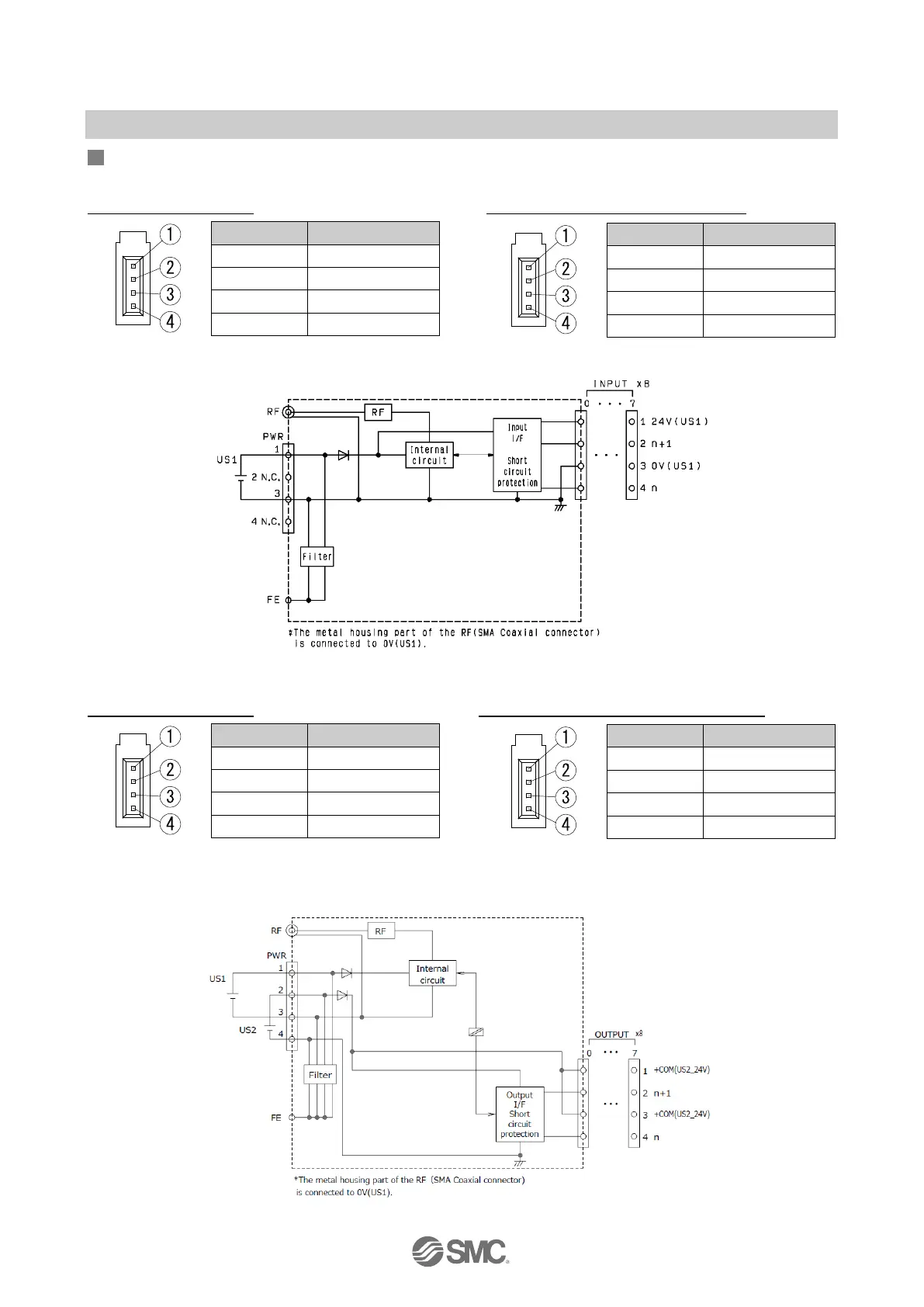

Connector (for e-CON)
EXW1-RDX*
PWR (power connector)
INPUT (connector for an input device)
Pin number Description
1
24V(US1)
2 N.C.
3 0V(US1)
4 N.C.
Circuit diagram
EXW1-RDY*
PWR (power connector)
OUTPUT (connector for an output device)
Pin number Description
1 24V(US1)
2 24V(US2)
3 0V(US1)
4 0V(US2)
* +COM is connected to 24V (US2) inside the product as shown in the circuit diagram below.
Circuit diagram
Pin number Description
1 24V(US1)
2 n+1
3 0V(US1)
4
n
Pin number Description
1
+COM(US2_24V)
2 n+1
3 +COM(US2_24V)
4
n
