-25-
No.EX※※-OMZ0016
EXW1-RDM*
PWR (power connector)
INPUT (connector for an input device)
Pin number Description
1 24V(US1)
2 24V(US2)
3 0V(US1)
4 0V(US2)
OUTPUT (connector for an output device, EXW1-
RDMPE3**)
OUTPUT (connector for an output device, EXW1-
RDMNE3**)
Pin number Description
Pin number Description
1 -COM(US2_0V) 1 +COM(US2_24V)
2 n+1
2 n+1
3 -COM(US2_0V) 3 +COM(US2_24V)
4 n
4 n
* -COM is connected to 0V (US2) and +COM to 24V (US2) inside the product as shown in the circuit
diagram below.

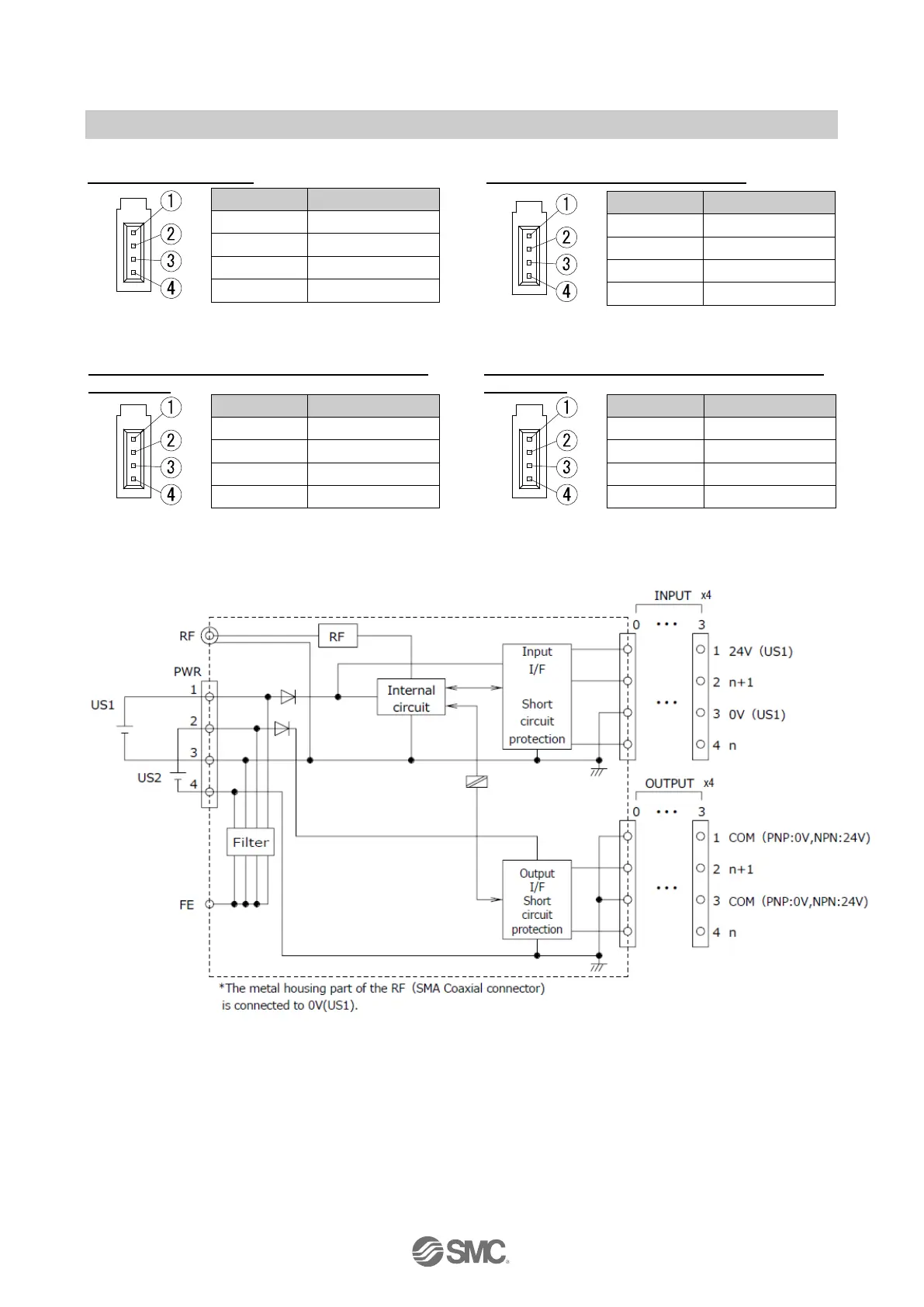

Circuit diagram
Pin number Description
1 24V(US1)
2 n+1
3 0V(US1)
4 n
