Chapter 5 Display and Setting of Various Functions
5.17 Pump Operation Mode Setting HRSH Series
5-40

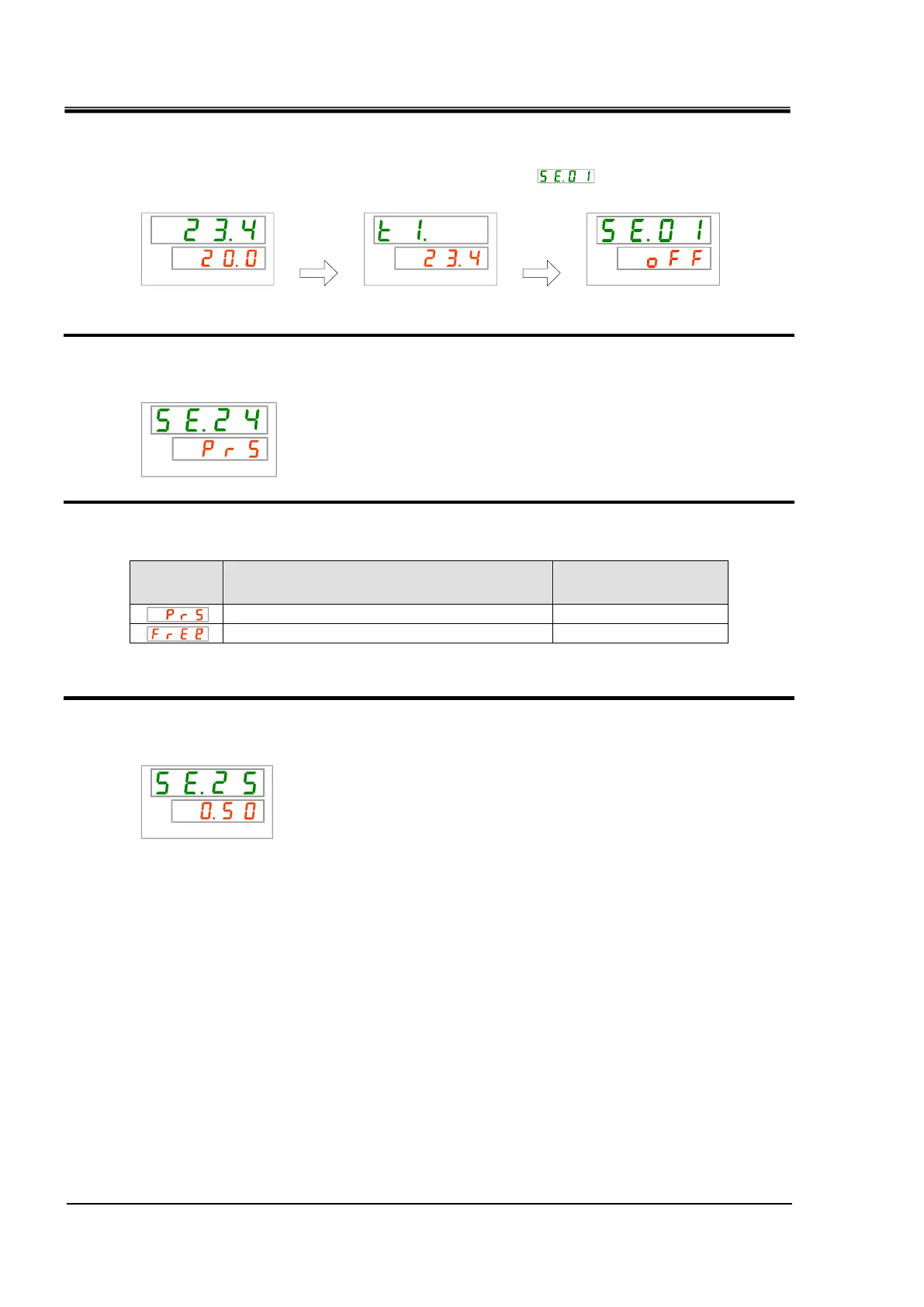

1. Press and hold the [MENU] key for approximately 2 seconds.
Repeat pressing the key until the key-lock setting screen [ ] appears on the digital
display.
Setting/Checking: Pump operation mode
2. Press the [SEL] key 23 times.
Setting screen of pump operation mode appears on the digital display.
3. Select a pump operation mode with [▲] key or [▼] key, and press [SEL] key to confirm.
Table 5.17-2 Pump operation mode setting
Set value
Explanation
Default
Pressure control mode
✓
Frequency set mode
Setting/Checking: Circulating fluid discharge pressure
4. Press the [SEL] key once.
Setting screen of the circulating fluid discharge pressure appears on the digital display.
PV
SV
PV
SV
PV
SV
PV
SV
PV
SV
Press and
hold [MENU]
key.
Press and
hold [MENU]
key.
