HRX-OM-Q026
Chapter 2 Name and Function of Parts
2.2 Name and Function of Parts HRSH Series
2-2
2.2 Name and Function of Parts
2.2.1 HRSH-A- (Air cooled type)

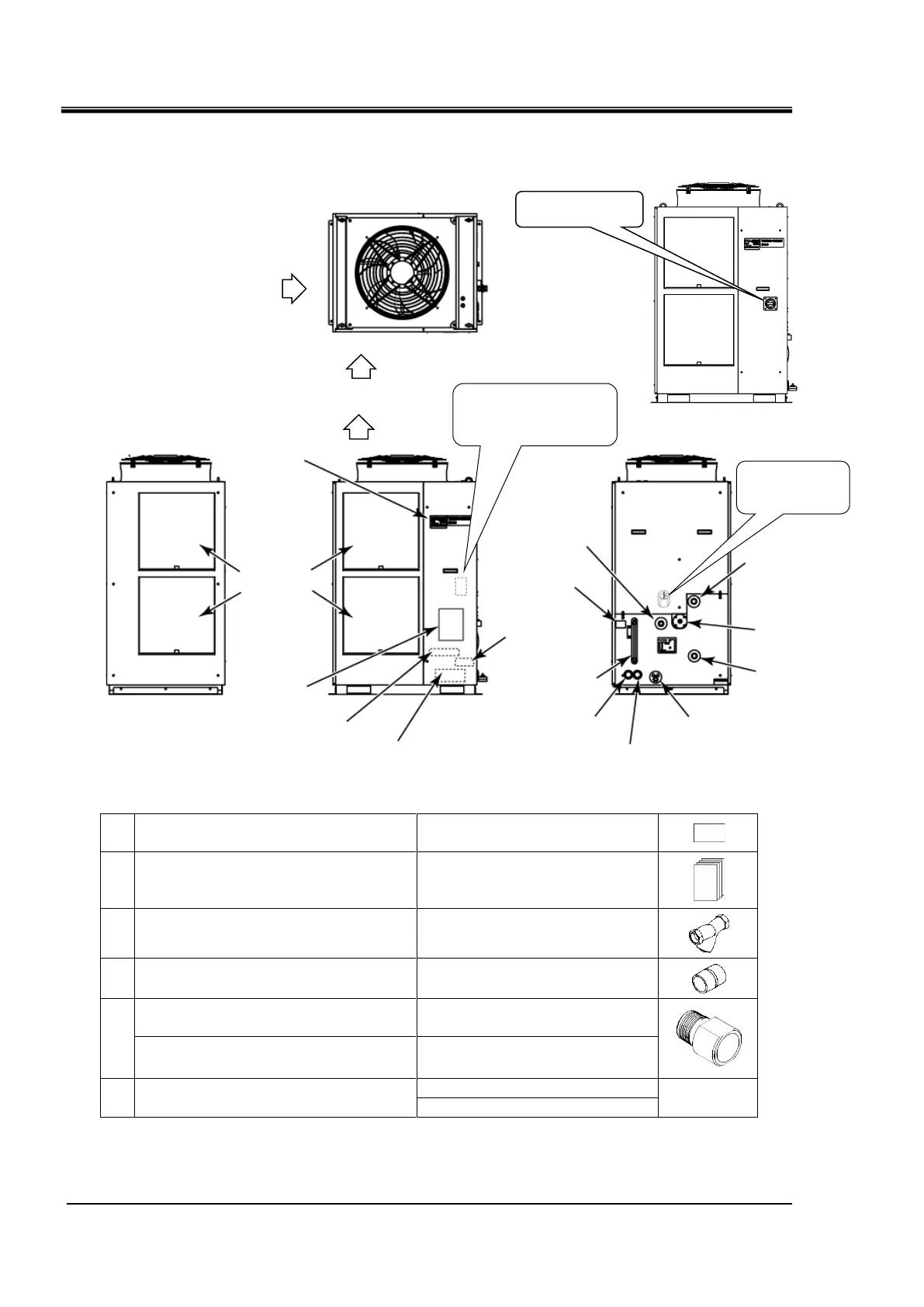

Fig. 2-2 Names of the parts (This drawing shows “HRSH250-A-20”.)
Table 2-1: Accessory list
①
Alarm code list label
2 pcs.
(English 1 pc. /Japanese 1 pc.)
②
Operation manual
2 copies
(English 1 copy/Japanese 1
copy)
③
Y strainer (40 mesh) 25A
1 pc.
④
Barrel nipple 25A
1 pc.
⑤
For HRSH-AF-
G thread adapter set (HRS-EP014)
1 set
For HRSH-AN-
NPT thread adapter set (HRS-EP013)
1 set
-
Anchor brackets
2 pcs.
---
(M8 bolts)
6 pcs.
Note) The anchor brackets (including M8 bolts) are used for fixation with the skid when this product is packed. The anchor bolts are
not attached.
Circulating fluid
outlet port Rc1
Circulating fluid
return port Rc1
Automatic fluid
fill port Rc1/2
Overflow port
Rc1
Signal cable entry
(Grommet with
membrane)
Tank drain port
Rc3/4 (closed by a
ball valve)
Power cable entry
(Grommet with membrane)
Product
label
Fluid level
gauge
Option K
[Fluid fill port]
Option B
[Earth leakage breaker]
Inside the panel
Dust-proof
filter
Power terminal
(Inside the panel)
Signal connectors
(Inside the panel)
Operation
display panel
Ventilation air inlet
Ventilation air inlet
Accessories
(③, ④, ⑤)
Accessories
(①, ②)
HRSH-A-20-B1
HRSH***-A*-20-S,
HRSH-A-40-
Breaker handle
Ventilation
air outlet
