Chapter 3 Transport and Setting Up
3.5 Circulating Fluid Supply HRSH Series
3-34
3. Supply the circulating fluid to the water fill port.
Please supply the circulating fluid to the fluid level between “HIGH” and
“LOW” levels of the fluid level gauge.

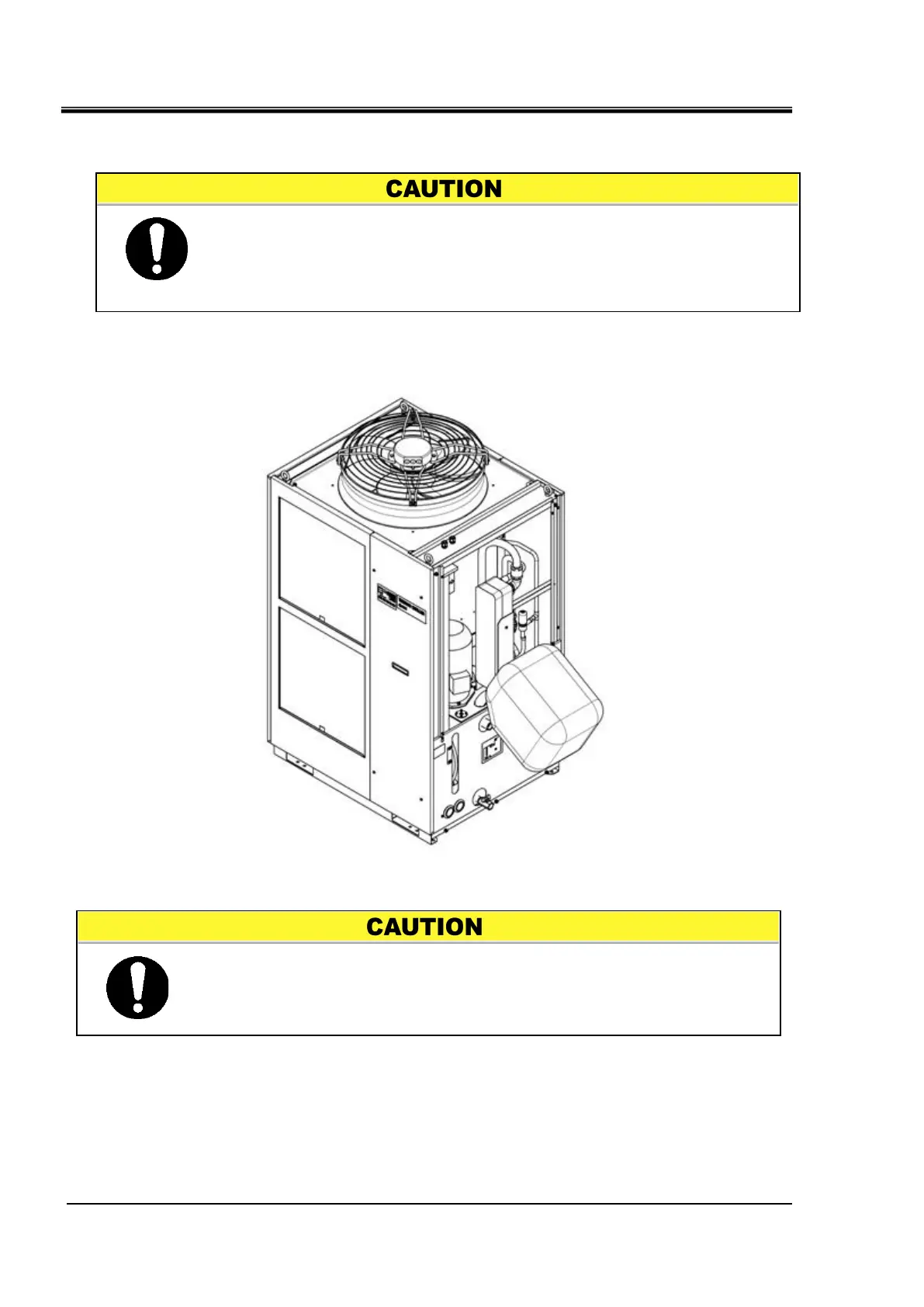

Fig. 3-23 Supplying the fluid to the water fill port (An example)
⚫ Confirm that the valve of the drain port is closed to prevent the
supplied circulating fluid from draining out.
⚫ Confirm that the fluid level is between “HIGH” and “LOW” levels of the
fluid level gauge. If it exceeds the specified level, the circulating fluid
will overflow.
⚫
Be sure to connect the piping from the overflow port to the drainage
pit to drain the excessive amount of the fluid from the tank.
