HRX-OM-Q026
Chapter 5 Display and Setting of Various Functions
HRSH Series 5.22 Communication Function
5-73

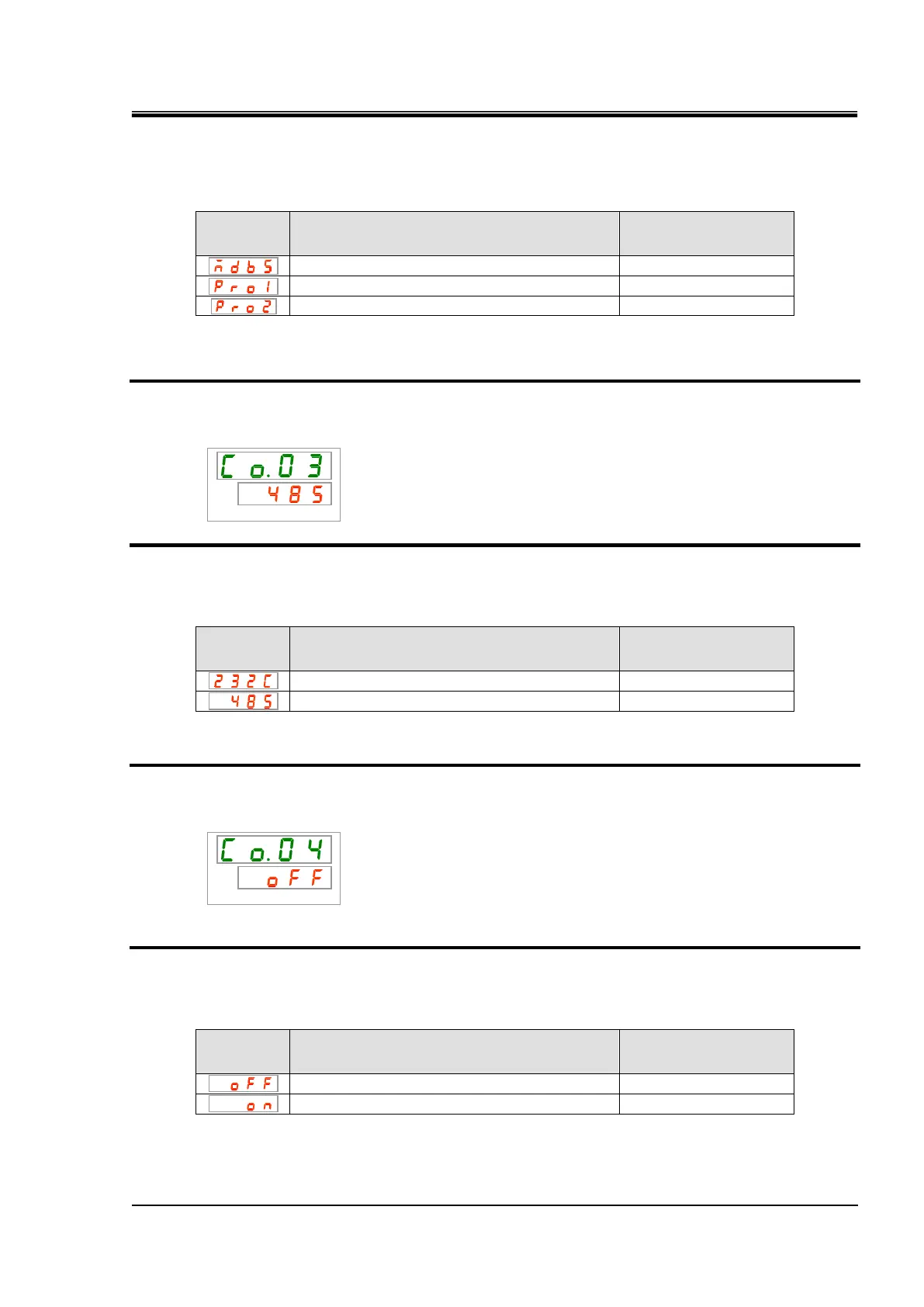

4. Select a serial communication protocol with [▲] key or [▼] key, and press [SEL] key to
enter.
Table 5.22-3 Setting of serial communication protocol
Simple communication protocol 1
Simple communication protocol 2
1
1: When the contact input signal 2 is set to “remote signal”, it is not possible to set to “simple
communication protocol 2”.
Setting/Checking: Communication specification
5. Press the [SEL] key once.
Setting screen of the communication specification is displayed on the digital display.
6. Select communication specification with [▲] key or [▼] key, and press [SEL] key to
enter.
Table 5.22-4 Setting of communication specification
Setting/Checking: Terminal for RS-485
7. Press the [SEL] key once.
Setting screen of terminal for RS-485is displayed on the digital display.
8. Perform a setting of terminal for RS-485 with [▲] key or [▼] key, and press [SEL] key
to enter.
Table 5.22-5 Setting of terminal for RS-485
To Next Page
