5.3 Main Display
5.3.1 Main display
The current temperature and the set temperature of the circulating fluid are
shown on the main display, and the main display allows the set temperature
to be changed.
5.3.2 Items on the main display
Items shown below are shown on the main display.

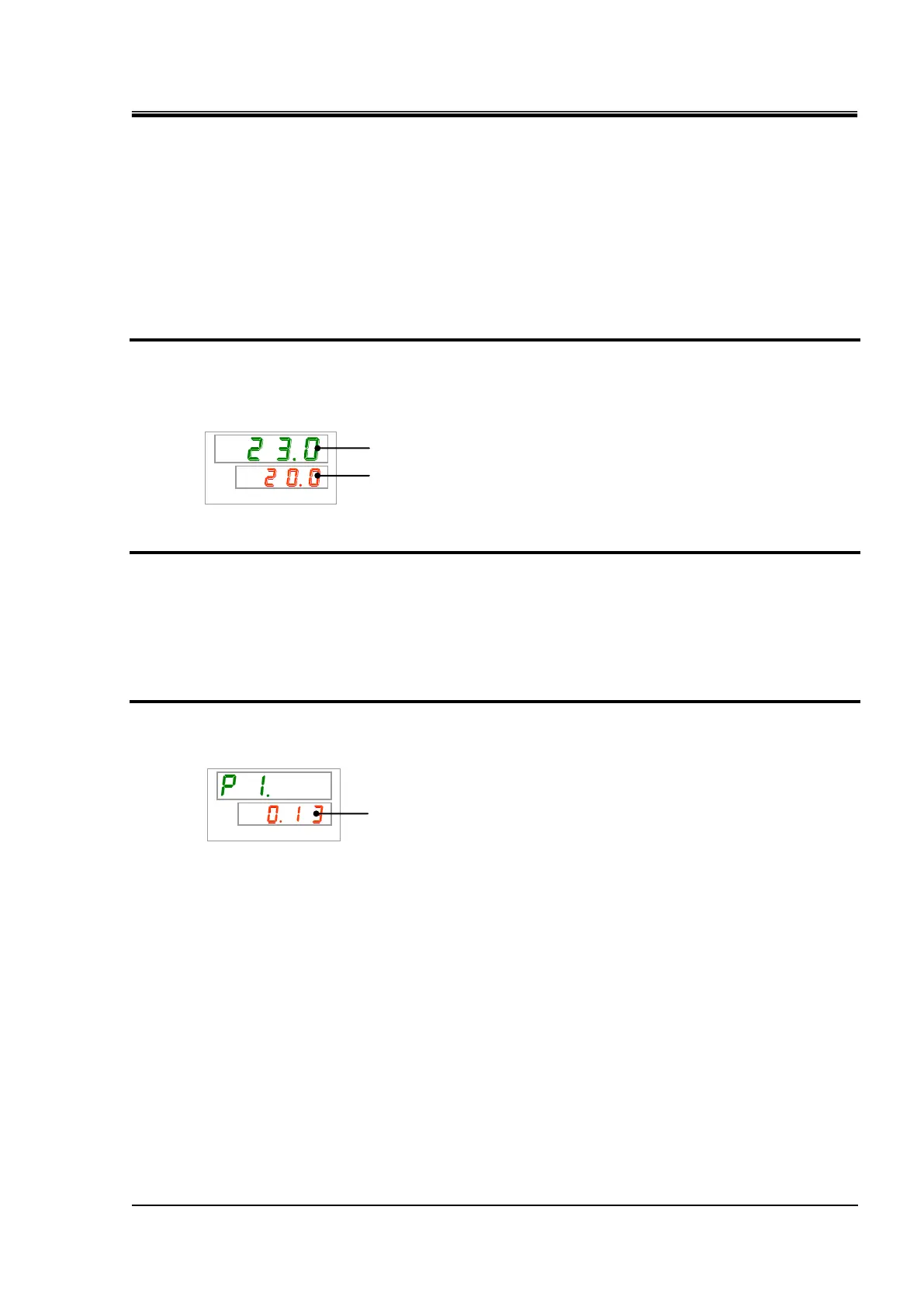

Display: Current circulating fluid discharge temperature
1. Turn ON the power supply switch.
The current temperature and the set temperature are displayed on the digital display.
* “Alarm menu” screen is displayed when any alarm is generated. (See “5.4”)
Setting: Circulating fluid temperature
2. Change the set temperature with the [▼] or [▲] key.
After changing the set temperature, set it by pressing the [SEL] key.
* The letters of the set value blink while the set value is being entered.
* If [SEL] key is not pressed, the value is set to the value after change 3 seconds later.
Display: Circulating fluid discharge pressure
3. Press the [SEL] key.
Circulating fluid discharge pressure is displayed on the digital display.
PV
SV
PV
SV
Current discharge temperature
Set Temperature
Circulating fluid discharge pressure
