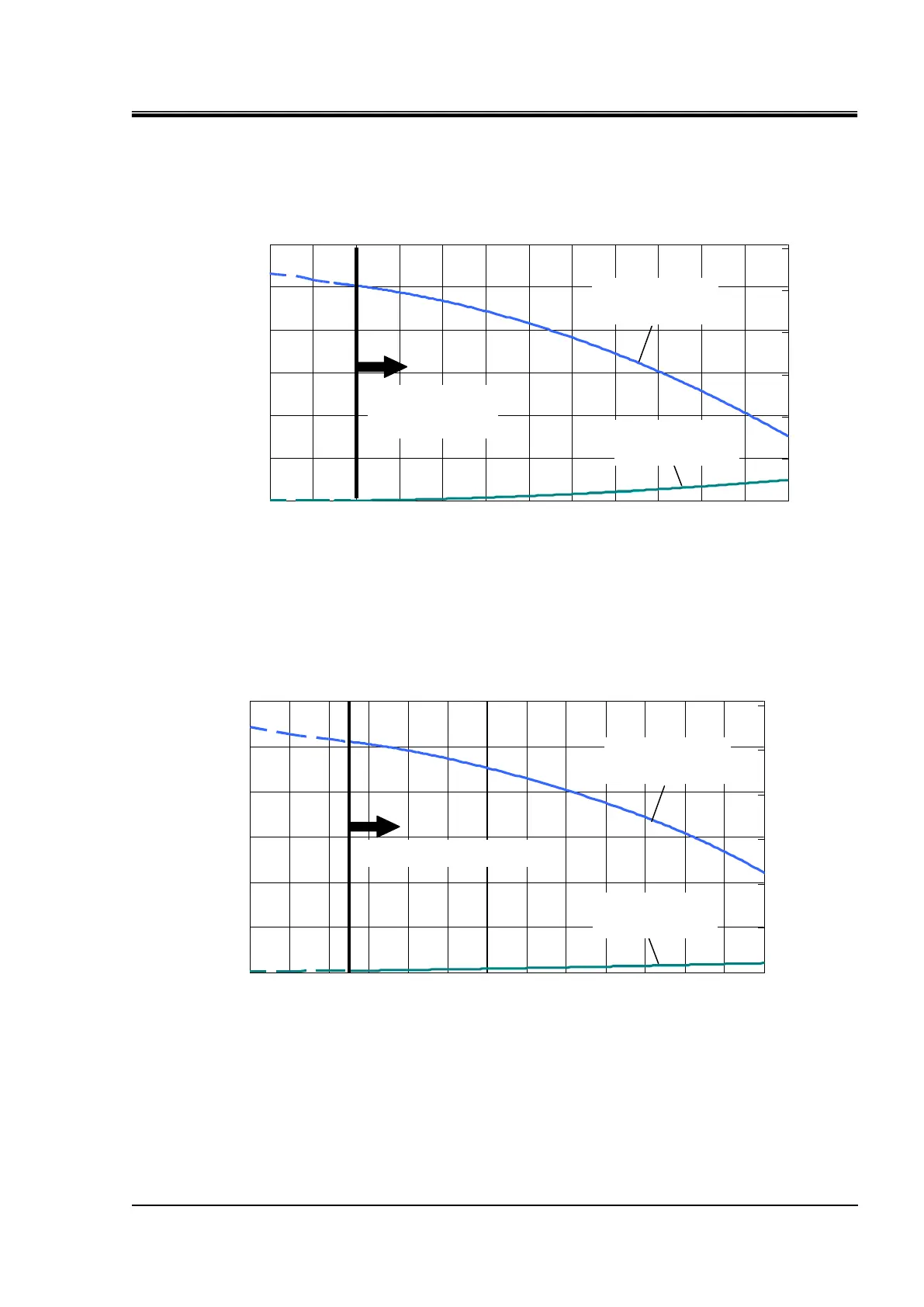

HRSH Series 8.5 Pump Capacity
8-17
8.5 Pump Capacity
8.5.1 HRSH100-A-20/40-, HRSH100-W-20/40-
Fig. 8-16: Pump capacity (HRSH100-A-20/40-, HRSH100-W-20-)
8.5.2 HRSH150/200-A-20/40-HRSH150/200/250-W-20/40-
Fig. 8-17: Pump capacity (HRSH150/200-A-20/40-HRSH150/200/250-W-20/40-)
0
0.1
0.2
0.3
0.4
0.5
0.6
0 10 20 30 40 50 60 70 80 90 100 110 120 130
Circulating fluid flow [L/min]
Pressure [MPa]
0
10
20
30
40
50
60
Lifting head [m]
Usable flow rate range
Circulating fluid
return
Circulating fluid
outlet
0
0.1
0.2
0.3
0.4
0.5
0.6
0 10 20 30 40 50 60 70 80 90 100 110 120
Circulating fluid flow [L/min]
Pressure [MPa]
0
10
20
30
40
50
60
Lifting head [m]
Applicable flow
rate range
Circulating fluid
return
Circulating fluid
outlet
