HRSH Series 8.4 Cooling Capacity
8-13
8.4.3 HRSH200-A-20/40-

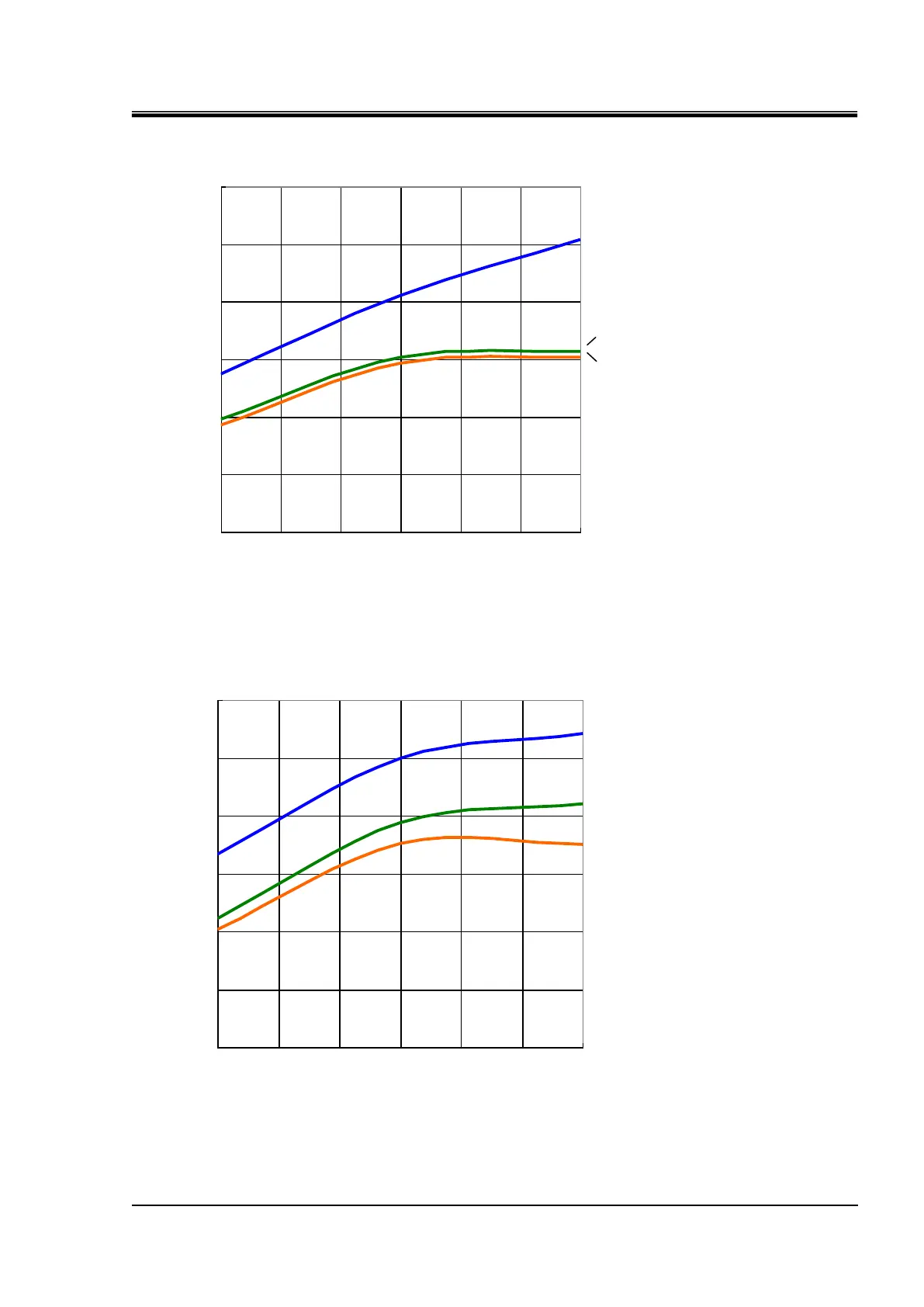

Fig. 8-9: Cooling Capacity (HRSH200-A-20/40-)
8.4.4 HRSH250-A-20/40-
Fig. 8-10: Cooling Capacity (HRSH250-A-20/40-)
0
5
10
15
20
25
30
5 10 15 20 25 30 35
Circulating fluid temperature [
o
C]
Cooling capacity [kW]
0
5
10
15
20
25
30
5 10 15 20 25 30 35
Circulating fluid temperature [
o
C]
Cooling capacity [kW]
Ambient temperature: 32
o
C
Ambient temperature: 43
o
C
Ambient temperature: 45
o
C
Ambient temperature: 32
o
C
Ambient temperature: 43
o
C
Ambient temperature: 45
o
C
