8.5 Pump Capacity HRSH Series
8-18
8.5.3 HRSH250/300-A-20/40-

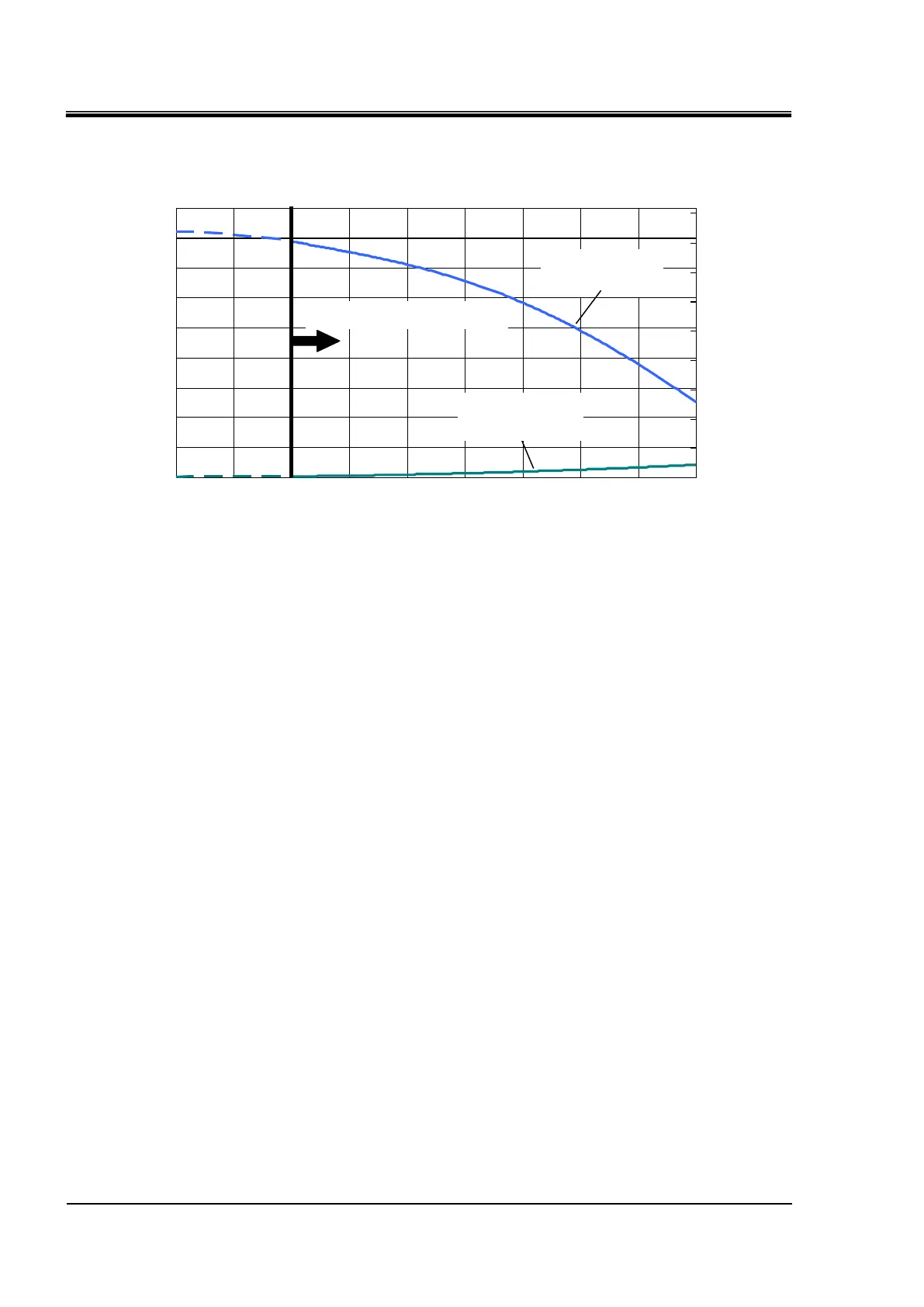

Fig. 8-18: Pump capacity (HRSH250/300-A-20/40-)
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 20 40 60 80 100 120 140 160 180
Circulating fluid flow [L/min]
Pressure [MPa]
0
10
20
30
40
50
60
70
80
90
Lifting head [m]
Usable flow rate range
Circulating fluid
return
Circulating fluid
outlet
