5.5 Check Monitor Menu
5.5.1 Check monitor menu
As a part of the daily inspection, the temperature, pressure and
accumulated operating time can be checked.
Please use this for confirmation of your daily inspection.
5.5.2 Checking with the check monitor menu
The table below explains the check items in the check monitor menu.

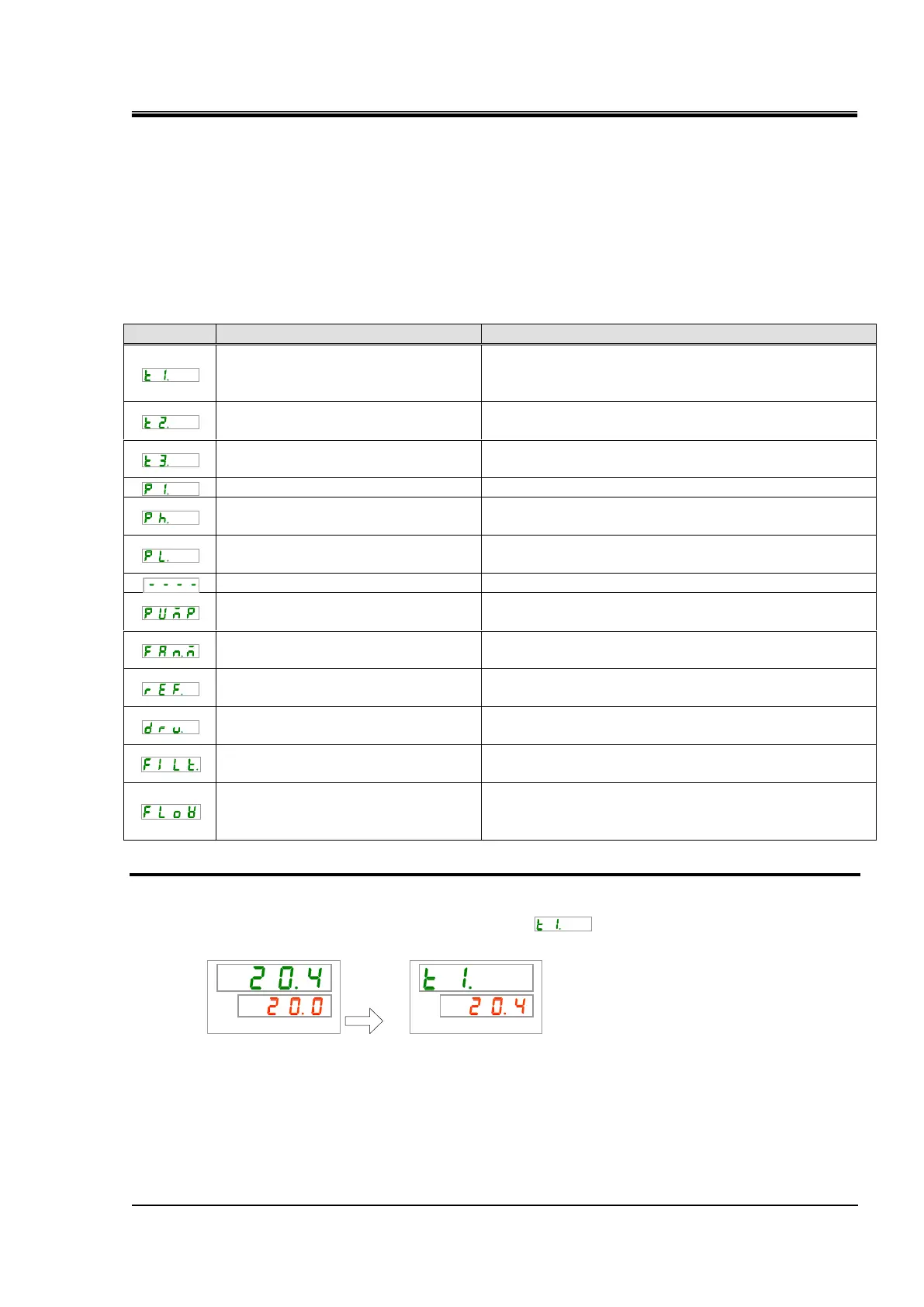

Table 5.5-1 Check items in the check monitor menu
Display
Item
Content
Circulating fluid discharge temperature
Displays the circulating fluid discharge temperature.
Offset temperature is not taken into consideration in this
temperature.
Circulating fluid return port temperature
Displays the circulating fluid temperature at the circulating
fluid return port.
Compressor inlet temperature
Displays the refrigerant temperature at the compressor inlet
port.
Circulating fluid discharge pressure
Displays the circulating fluid discharge pressure.
Refrigerant circuit pressure on the high
pressure side
Displays the pressure on the higher pressure side of the
refrigerant circuit.
Refrigerant circuit pressure on the low
pressure side
Displays the pressure on the lower pressure side of the
refrigerant circuit.
Unused
-
Accumulated operating time of the
pump
Displays the accumulated operating time of the pump.
Accumulated operating time of the fan
Displays the accumulated operating time of the fan motor.
(For air cooled type only)
Accumulated operating time of the
compressor
Displays the accumulated operating time of the compressor.
Accumulated operating time of the
thermo-chiller
Displays the accumulated operating time of the
thermo-chiller.
Accumulated operating time of the
dust-proof filter
Displays the accumulated operating time of the dust-proof
filter.
Circulating fluid flow rate
Displays the circulating fluid flow rate. This is not a
measured value with a flow meter, and is provided as a
guide.
Checking: Circulating fluid discharge temperature
1. Press and hold the [MENU] key for approximately 2 seconds.
Circulating fluid discharge temperature display ” ” appears on the digital display.
Displays the circulating fluid temperature discharged from this product to the user's equipment.
Offset temperature is not taken into consideration in this temperature.
PV
SV
PV
SV
Press and
hold
[MENU]
key.
