3.1.2 Transportation using casters
In case of purchasing option A or the optional accessories, “Caster
Adjuster-foot kit” (HRS-KS001/KS002) separately and after fastening it to
the product.

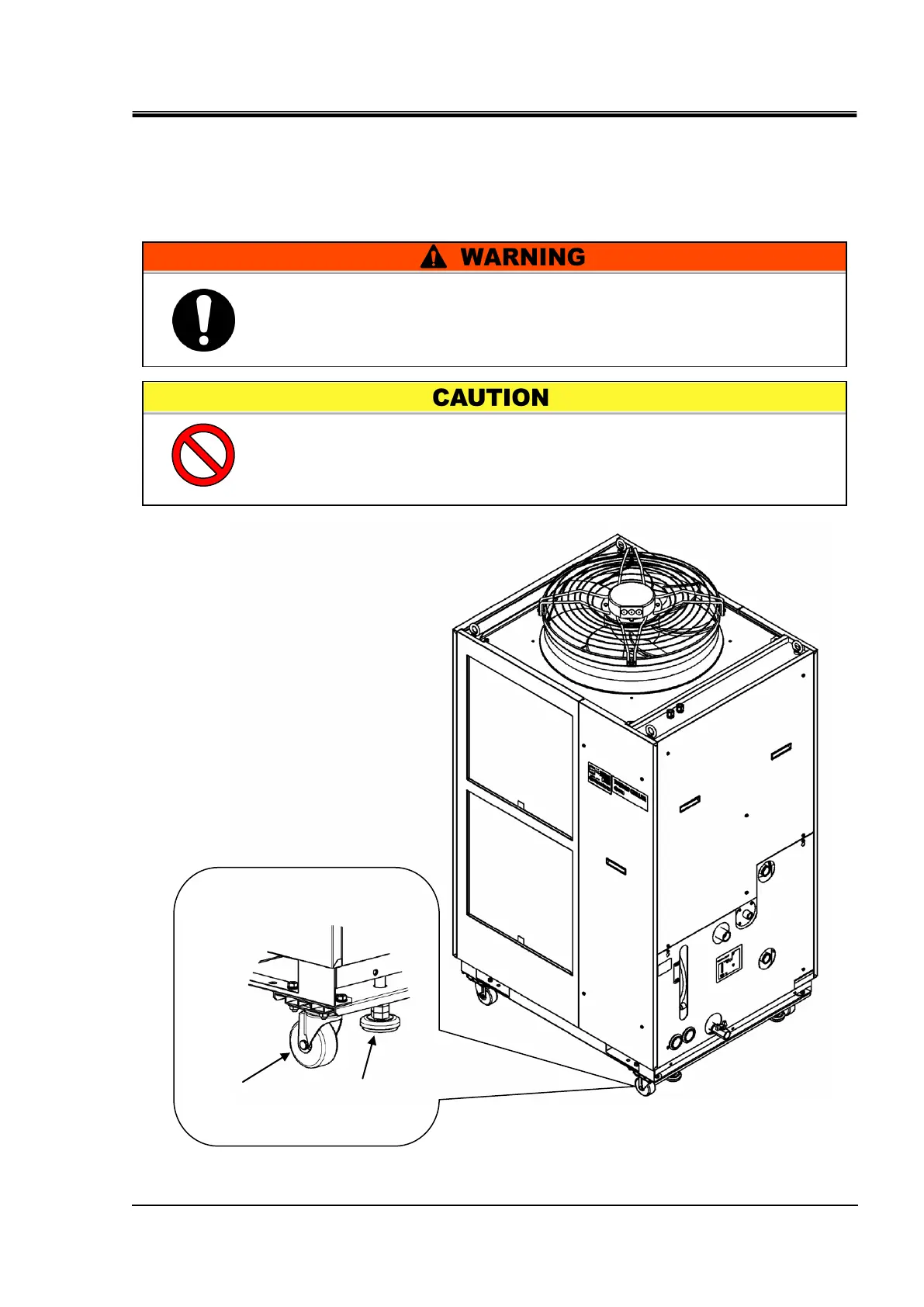

Fig. 3-2 Transportation using casters (This drawing shows “HRSH250-A-20”.)
Raise the adjuster
foot.
Swivel
caster
Each swivel caster can
rotate 360 degrees freely.
Raise the adjuster feet and push the corners of the product when
moving the product using the casters.
Do not hold the piping connections or handles of the panels when
moving by casters, or it may cause damage to the product..
This is a heavy product. (Refer to Table 3-1 Weight of the product).
Moving the product by casters should be done by 2 persons or more.
