No.DIG-31900-OM002

■Fork Lever-Type Fitting

Since the IP8101 has two means of being mounted, two different kinds of fork lever-type fittings are

provided, which are mounted in different ways, depending on the bracket mounting method.

For side mounting, the mounting dimensions of fork lever-type fitting M can be adjusted to be

interchangeable with IP610. For back mounting, the mounting dimensions of fork lever-type fitting S

can be adjusted to be interchangeable with IP610.

■Body cover

2 types of body cover unit can be selected. These can be ordered for replacement.

Cover with window to check LCD is optional.

Table 4

Description

Part no.

Fork lever-type fitting M

P368010-24

Fork lever-type fitting S

P368010-25

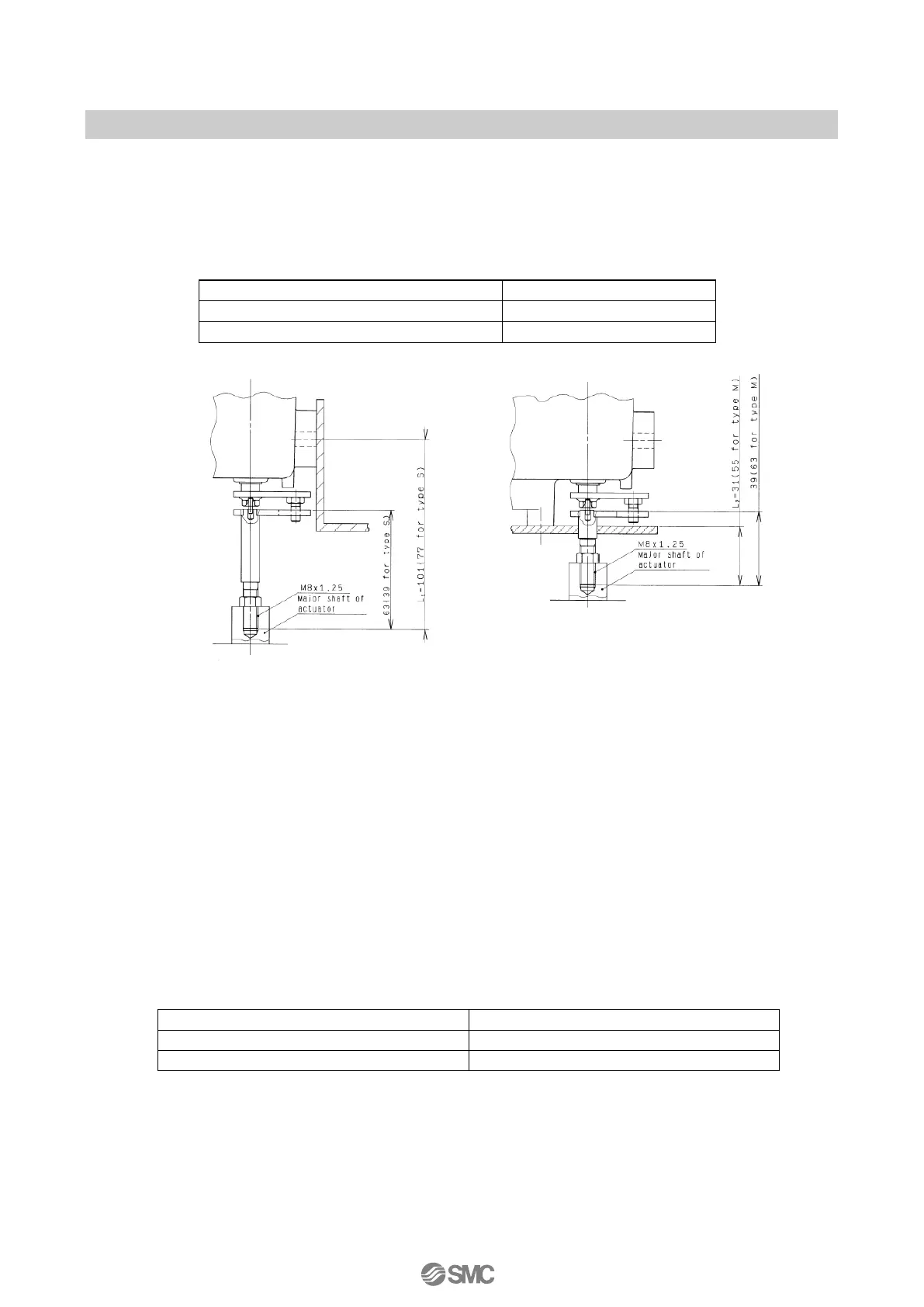

Example of side mounting using fork

lever-type fitting M

Example of back mounting using fork

lever-type fitting S.

Fig. 8

Table 5

LCD check window

Part No.

No window(Standard)

P565010-308

With window(Option)

P565010-327
