■Parameter Code Detail
(000) Actuator type
(200) Operation direction
setting
Displays “rotary (rtry)”. This parameter is fixed when shipped, and
cannot be modified.
“Direct
＊
3
(dir)” or “Reverse
＊
4
(rvS)” can be selected. The default
when shipped is “direct (dir)”.
When the operation direction is modified, it is reflected on each
item in accordance with Table 9.
0%
100%
0%
100%
200=dir
200=rvS
0%
100%
Stroke
Input current

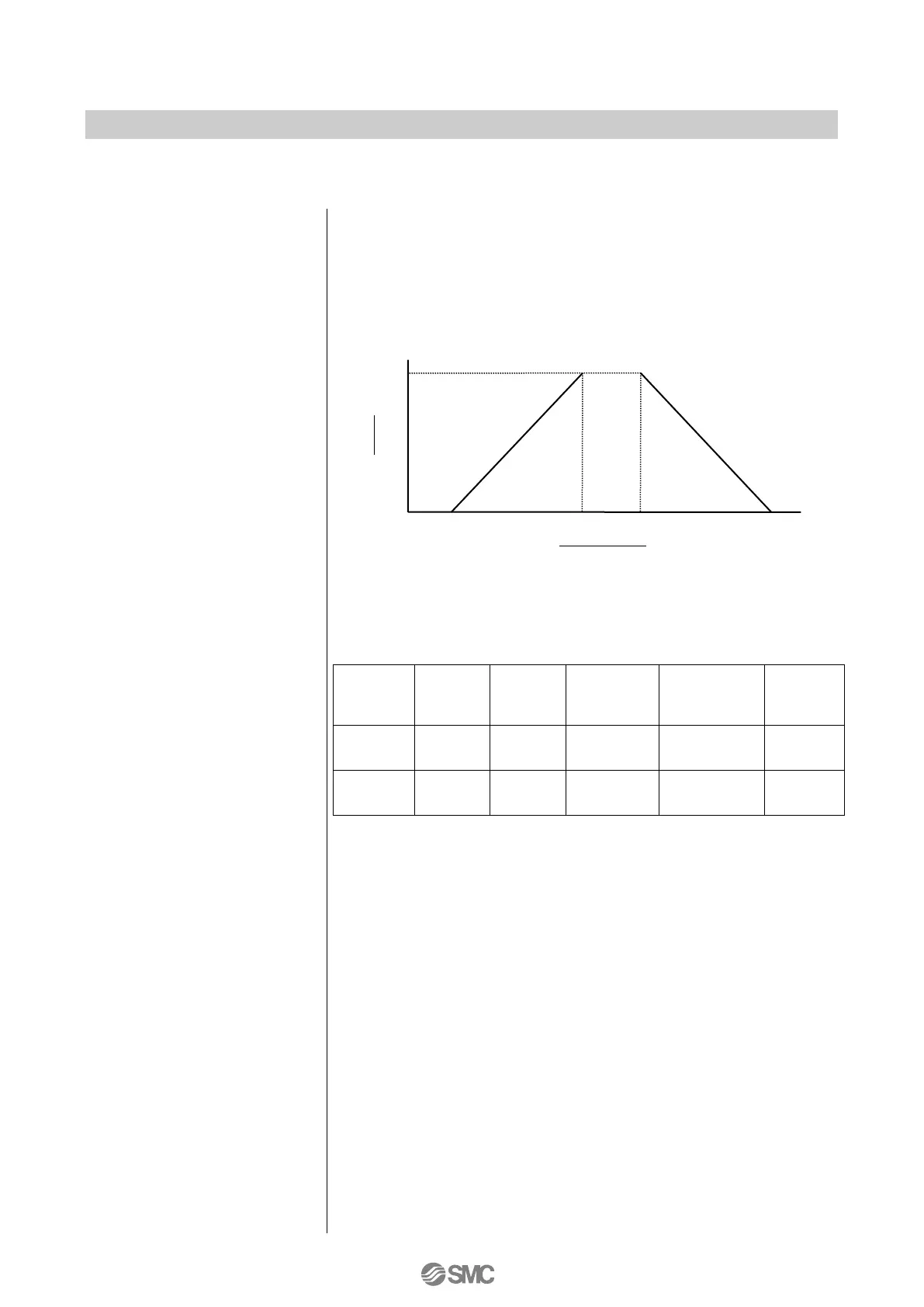

Fig. 24
3: Direct direction means an actuator’s operation direction which is
determined by air output from “OUT 1” port on the positioner’s body.
4: Reverse direction means an actuator’s operation direction which is
determined by air output from “OUT 2” port on the positioner’s body.
Table 9
Operation
direction
Input
current
Input
value
(S value)
Position
value
(P value)
Actuator
opening
Analog
output
(mADC)
(％)
(％)
(degree)
(mADC)
Direct
(dir)
4-20
0-100
0-100
0-90
4-20
Reverse
(rvS)
4-20
0-100
100-0
90-0
20-4
