No.DIG-31900-OM002
19

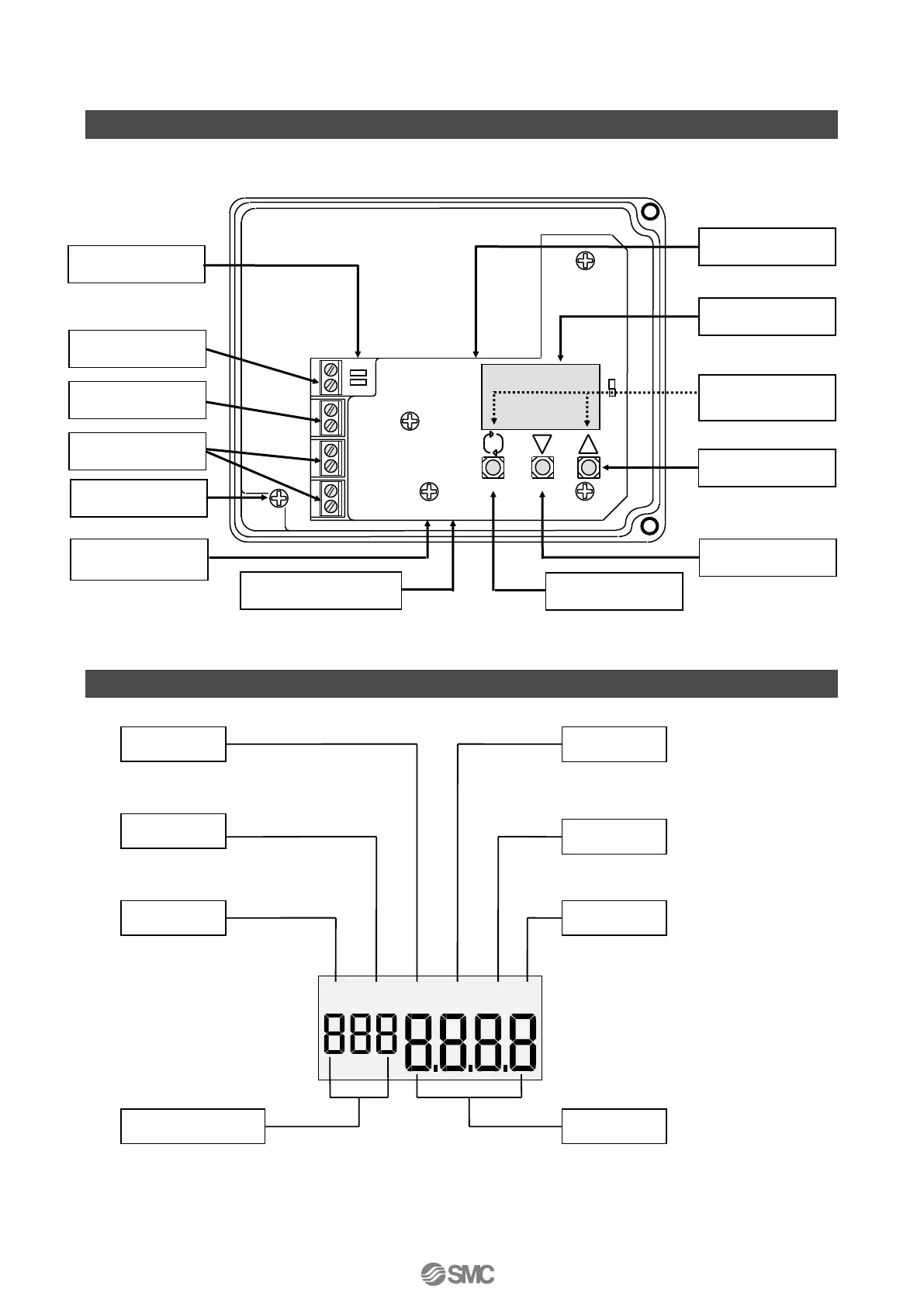

Description of Components
Fig.14 shows a description of each component.
Contents of LCD Display
UP button
DOWN button
Board cover
Potentiometer terminal
Torque motor
terminal
E
１
２
３
４
５
６
７
８
Ground terminal
HART terminal
LCD display
Mode button
Fig. 14
Input current
terminal
Analog output
terminal
Alarm output
terminal
(Hold down together)
Set button
●
Parameter
Manual
Lights up in parameter mode.
Lights up in manual mode.
Auto
Lights up in auto mode.
Alarm 1
Lights up when alarm 1 output is turned on.
Alarm 2
Lights up when alarm 2 output is turned on.
Communication
Flashes during communication.
Current position
Shows a character for current position and
each parameter.
Parameter code
Shows a character for each parameter.
Fig. 15
AUTO
MANU
PARM
ALM1
ALM2
