If hunching occurs during
adjustment, the PID constant is
adjusted to automatically eliminate
it.
After hunting has been eliminated,
automatically check the balance
current.
If the LCD displays good (Good),
check the code displayed after
3sec.
＊
14
.
14: Perform adjustments while referring to the check code list.
Readjust according to the following procedure if the LCD
dose not display good (Good) after the adjustment, which
means it has not been performed correctly.

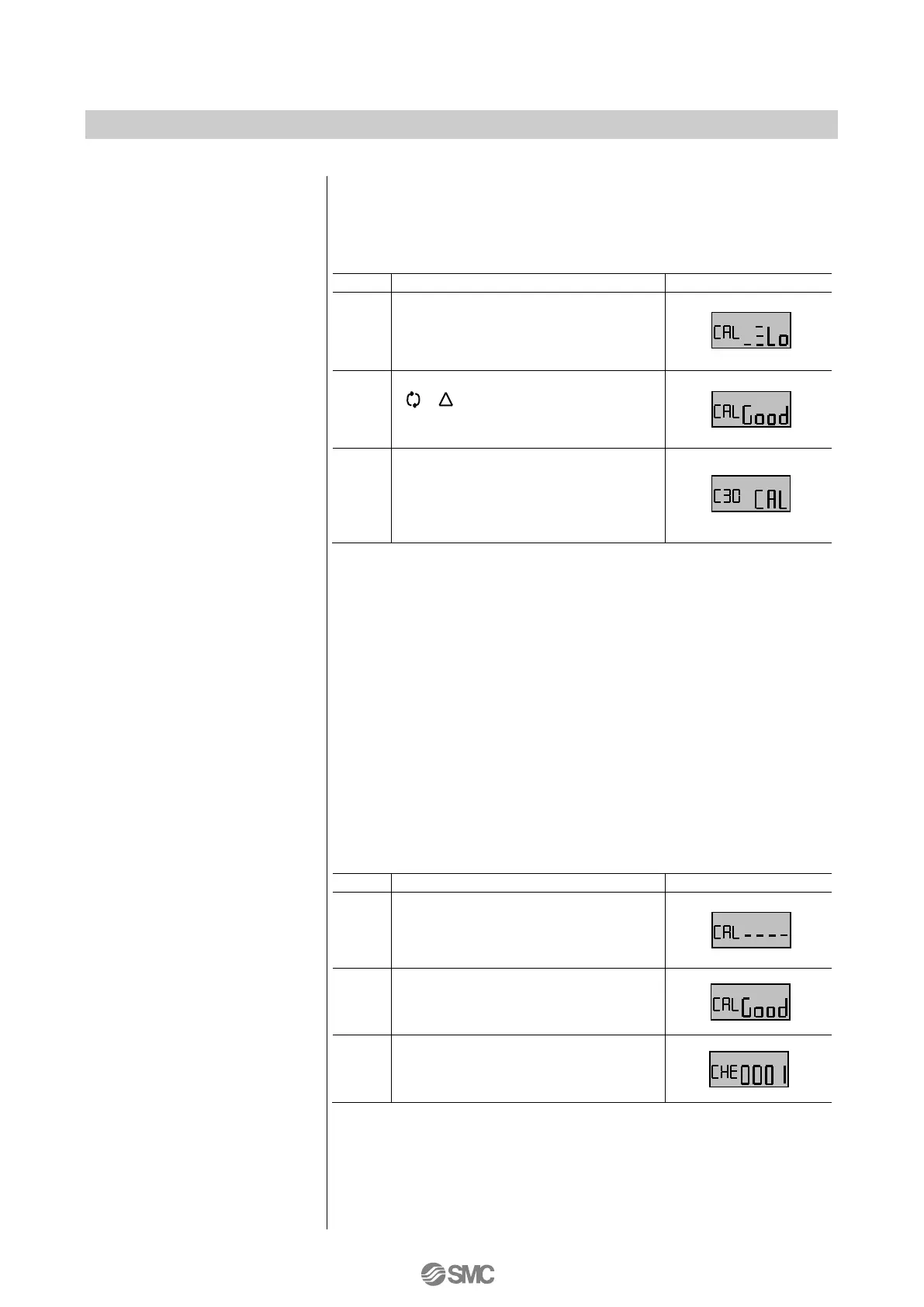

<LCD displays high (HI) or low (Lo)
＊
11
>
When the LCD displays high (HI) or
low (Lo), rotate the balance
adjusting screw until the LCD
displays good (Good)
＊
12,
＊
13
.
Press and hold down the set button
( ) for 1sec. with good (Good)
indicated, and go back to step 3
(StP3) for readjustment.
If the LCD displays good (Good),
the calibration (CAL) mode
selection screen returns
automatically, and adjustment has
been completed.
11: 1 to 6 bars (-) are displayed to the side of high (HI) or low (Lo). The
number of bars tells how close the current adjustment is to good
(Good); Six bars is closest, and one bar is furthest. Rotate the
balance adjusting screw clockwise for high (HI) and
counterclockwise for low (Lo) until good (Good) displays. When the
balance adjusting screw is turned, bars (----) show up to check the
adjustment condition. Do not turn the balance adjusting screw until
the condition is decided.
12: If the actuator angle is outside of 50+/-2%, the LCD displays bars
(----). Do not rotate the balance adjusting screw until verification is
complete.
13: Bars (----) continue to display until verification is complete. If the
button is pressed before verification, the LDC displays a busy
message (bUSy).
To Next Page
