SMC Networks IP8101 Series User Manual

No.DIG-31900-OM002
49
< (830) Easy adjustment
of PID constant>
or
B
D
C

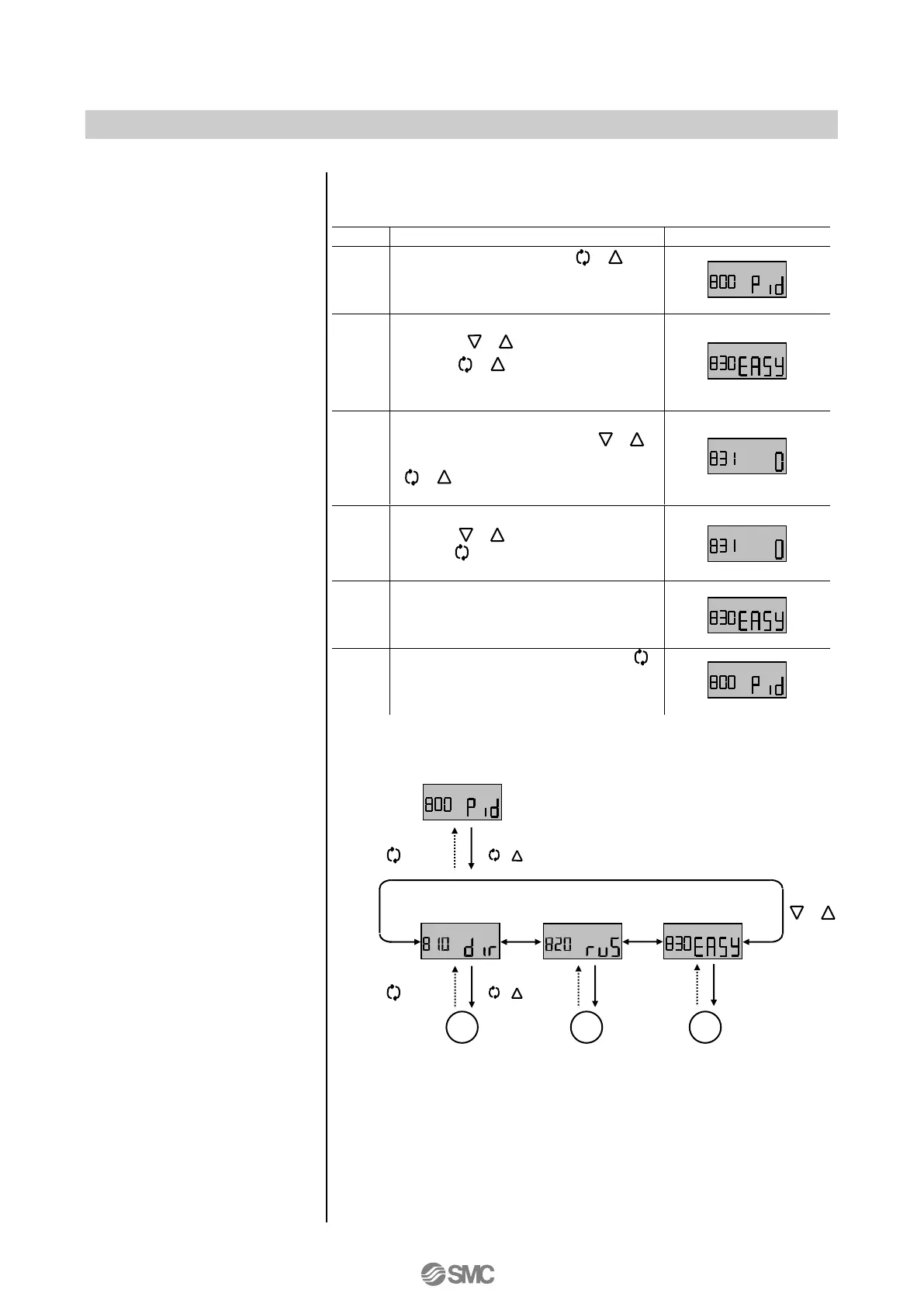

Fig. 40
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Possible to change PID constant. Setting has to be zero if adjustment
is not necessary.
Procedure
LCD display
1
Hold down set button ( ) for
1sec. or longer to start parameter
change mode.
2
Select easy (EASy) by Down or Up
button（ ). Hold down set
button ( ) for 1sec. or longer
to start changed constant select
mode.
3
Select the constant to be changed
by Down or Up button ( ).
Then, Hold down set button
( ) for 1sec. or longer to start
the value change mode.
4
Change the value with Down or Up
button ( ). Hold down mode
button ( ) for 1sec. or longer to set
the value.
6
Change other constant if
necessary.
7
Hold down the mode button ( )
again for 1sec. or longer to set the
mode.
or
＋
＋
＋
or
or
