are classified to the Port VLAN ID. If the classified VLAN ID of a
frame transmitted on the port is different from the Port VLAN ID, a
VLAN tag with the classified VLAN ID is inserted in the frame.
When forwarding a frame from this switch along a path that contains
any VLAN-aware devices, the switch should include VLAN tags. When
forwarding a frame from this switch along a path that does not contain
any VLAN-aware devices (including the destination host), the switch
should first strip off the VLAN tag before forwarding the frame.
â—† Port VLAN ID - VLAN ID assigned to untagged frames received on the
interface. (Range: 1-4095; Default: 1)
The port must be a member of the same VLAN as the Port VLAN ID.
WEB INTERFACE
To configure attributes for VLAN port members:
1. Click Configuration, VLANs, Ports.
2. Configure in the required settings for each interface.
3. Click Save.

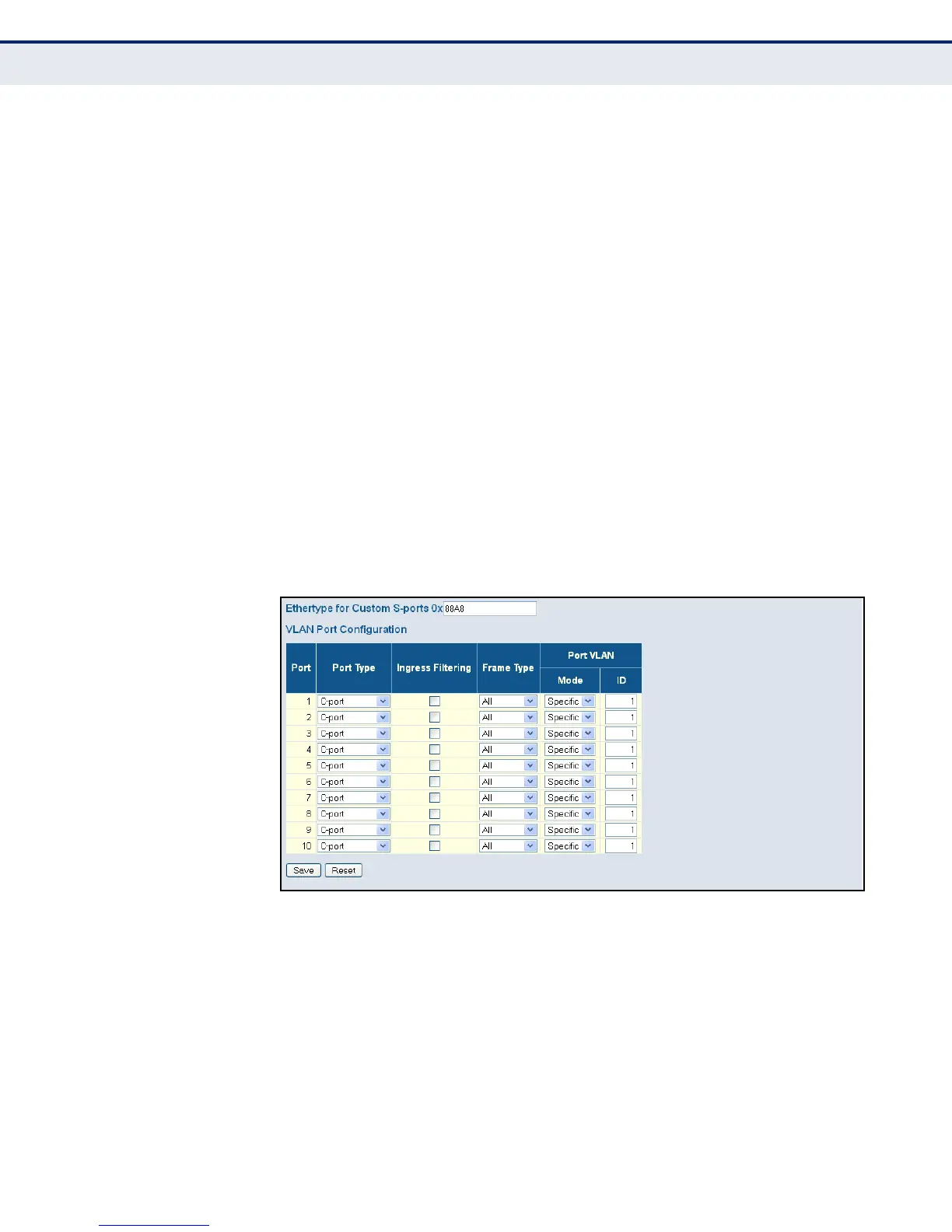

Figure 62: VLAN Port Configuration
