Displaying LLDP Information
– 247 –
◆ Application Type – The primary function of the application(s) defined
for this network policy, and advertised by an Endpoint or Network
Connectivity Device. The possible application types are described under
"Configuring LLDP-MED TLVs" on page 149.
◆ Policy – This field displays one of the following values:
■
Unknown: The network policy for the specified application type is
currently unknown.
■
Defined: The network policy is defined.
◆ Tag – Indicates whether the specified application type is using a tagged
or an untagged VLAN.
◆ VLAN ID – The VLAN identifier (VID) for the port as defined in IEEE
802.1Q-2003. A value of 1 through 4094 is used to define a valid VLAN
ID. A value of 0 (Priority Tagged) is used if the device is using priority
tagged frames as defined by IEEE 802.1Q-2003, meaning that only the
IEEE 802.1D priority level is significant and the default PVID of the
ingress port is used instead.
◆ Priority – The Layer 2 priority to be used for the specified application
type. (Range: 0-7)
◆ DSCP – The value to be used to provide Diffserv node behavior for the
specified application type as defined in IETF RFC 2474. (Range: 0-63)
WEB INTERFACE
To display information about LLDP-MED neighbors, click Monitor, LLDP,
LLDP-MED Neighbors.

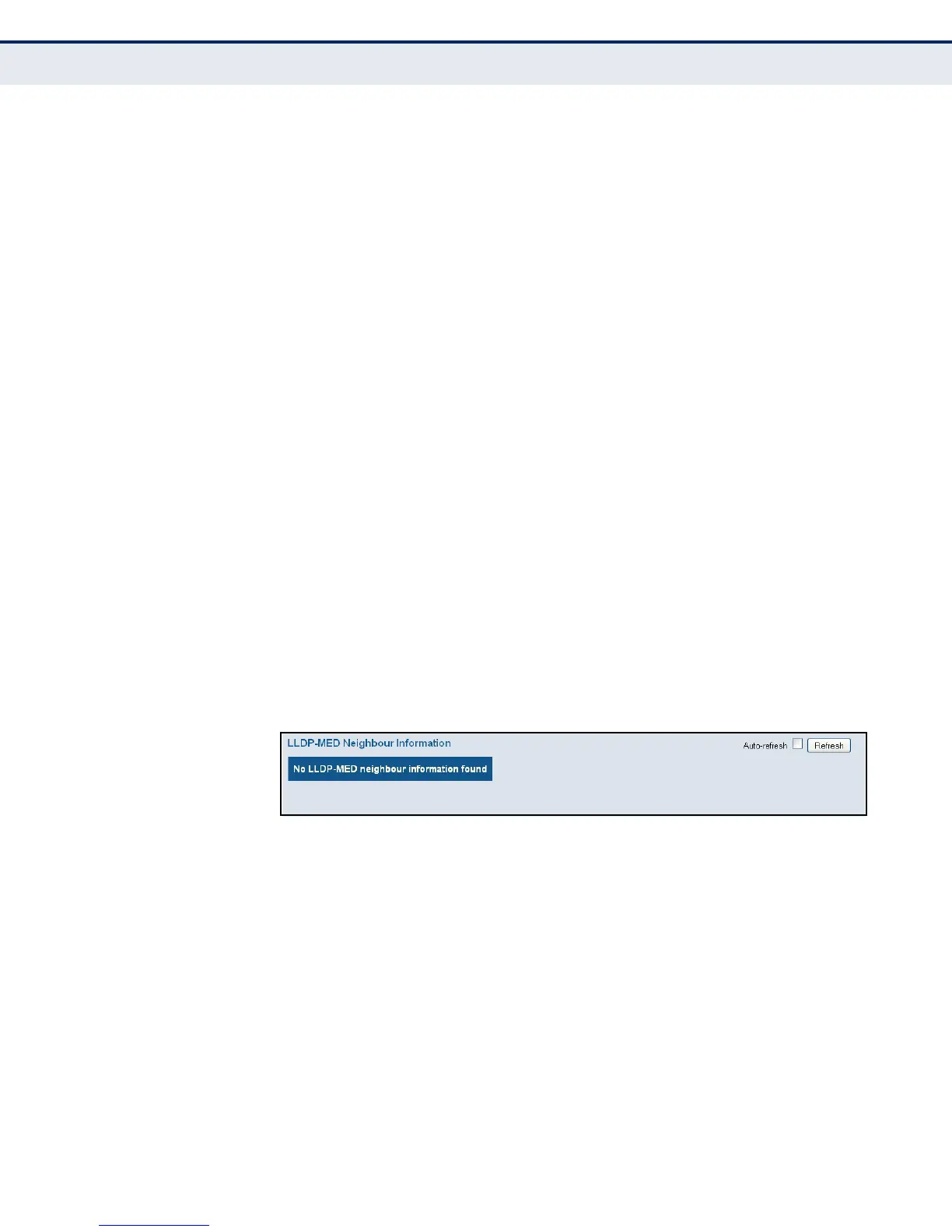

Figure 123: LLDP-MED Neighbor Information
DISPLAYING LLDP
N
EIGHBOR EEE
I
NFORMATION
Use the LLDP Neighbors EEE Information page to displays Energy Efficient
Ethernet information advertised through LLDP messages.
PATH
Monitor, LLDP, EEE
PARAMETERS
These parameters are displayed:
◆ Local Port – The port on this switch which received the LLDP frame.
