C
HAPTER
4
| Configuring the Switch
Quality of Service
– 181 –
CONFIGURING EGRESS
PORT SHAPER
Use the QoS Egress Port Shapers page to show an overview of the QoS
Egress Port Shapers, including the rate for each queue and port. Click on
any of the entries in the Port field to configure egress queue mode, queue
shaper (rate and access to excess bandwidth), and port shaper
PATH
Configuration, QoS, Port Shaper
PARAMETERS
These parameters are displayed:
Displaying QoS Egress Port Schedulers
◆ Port – Port identifier.
◆ Shapers – Shows the queue shaper rate and port shaper rate.
Configuring QoS Egress Port Scheduler, Queue Scheduler and Port Shapers
This configuration page can be access from the Port Scheduler or Port
Shaper page. Refer to the description of these parameters under
"Configuring Egress Port Scheduler".
WEB INTERFACE
To show an overview of the rate for each queue and port:
1. Click Configuration, QoS, Port Shaper.
2. Click on any enter under the Port field to configure the Port Scheduler
and Shaper.

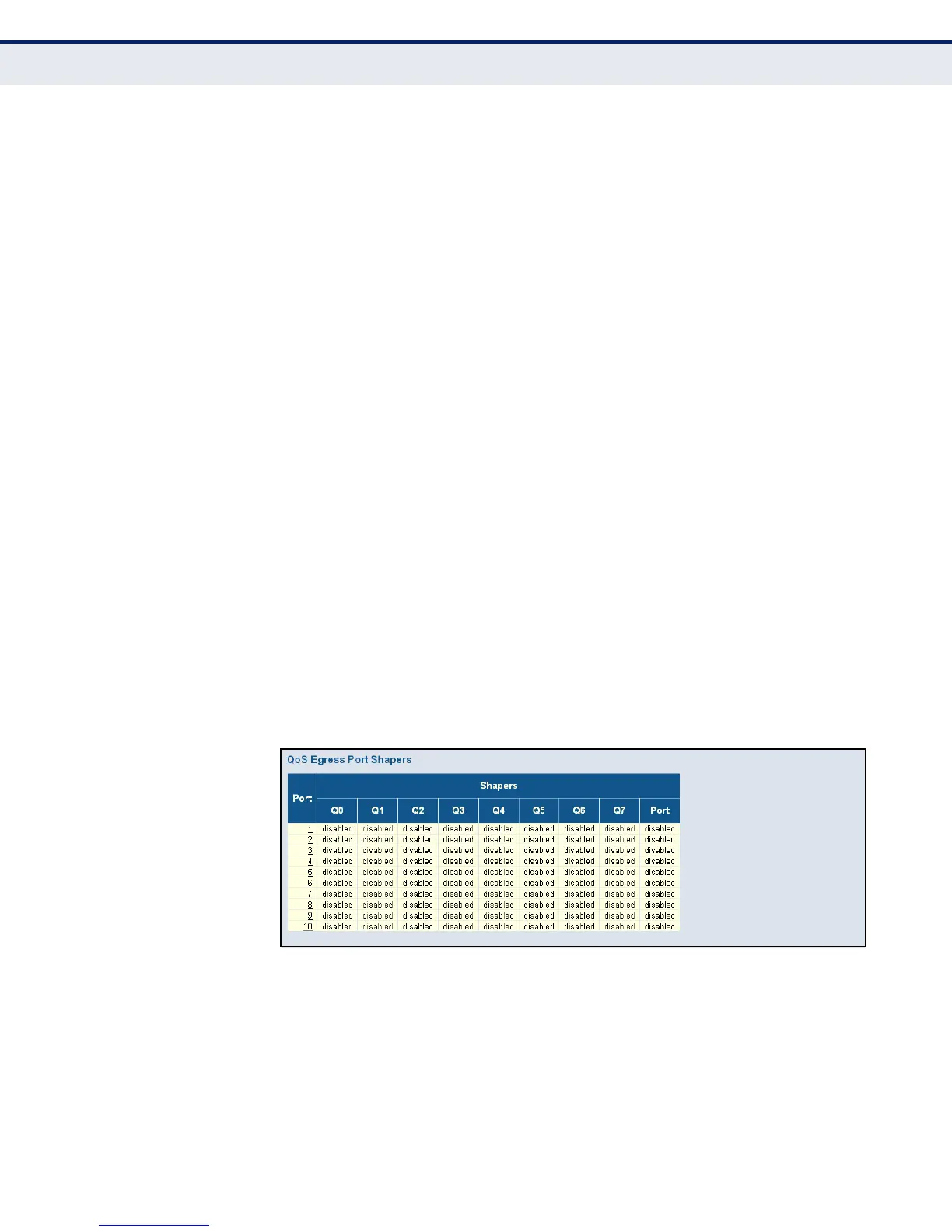

Figure 74: Displaying Egress Port Shapers
CONFIGURING PORT
REMARKING MODE
Use the QoS Egress Port Tag Remarking page to show an overview of QoS
Egress Port Tag Remarking mode. Click on any of the entries in the Port
field to configure the remarking mode using classified PCP/DEI values,
default PCP/DEI values, or mapped versions of QoS class and drop priority.
PATH
Configuration, QoS, Port Tag Remarking
