C
HAPTER
5
| Monitoring the Switch
Showing MLD Snooping Information
– 242 –
◆ V2 Reports Received – The number of received MLD Version 2
reports.
◆ V1 Leaves Received – The number of received MLD Version 1 leave
reports.
Router Port
◆ Port – Port Identifier.
◆ Status – Ports connected to multicast routers may be dynamically
discovered by this switch or statically assigned to an interface on this
switch.
WEB INTERFACE
To display MLD snooping status information, click Monitor, MLD Snooping,
Status.

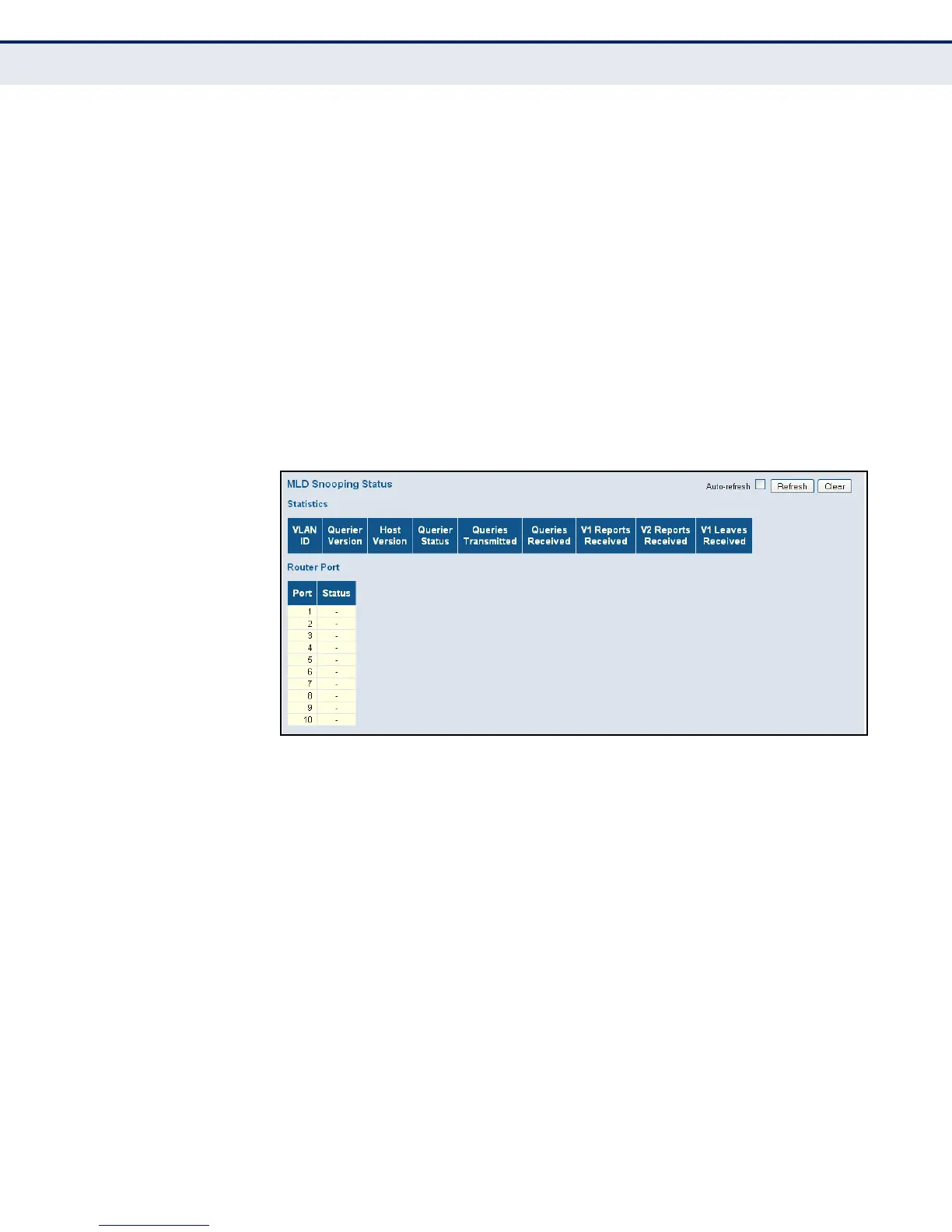

Figure 119: MLD Snooping Status
SHOWING MLD
SNOOPING GROUP
INFORMATION
Use the MLD Snooping Group Information page to display the port
members of each service group.
PATH
Monitor, IPMC, MLD Snooping, Group Information
PARAMETERS
These parameters are displayed:
◆ VLAN ID – VLAN Identifier.
◆ Groups – The IP address for a specific multicast service.
◆ Port Members – The ports assigned to the listed VLAN which
propagate a specific multicast service.
