C HAPTER 5 | Monitoring the Switch
Displaying Information About Ports
– 206 –
PARAMETERS
These parameters are displayed:
◆ Port – Port identifier.
◆ Q# Receive/Transmit – The number of packets received and
transmitted through the indicated queue.
WEB INTERFACE
To display the queue counters, click Monitor, Ports, QoS Statistics.

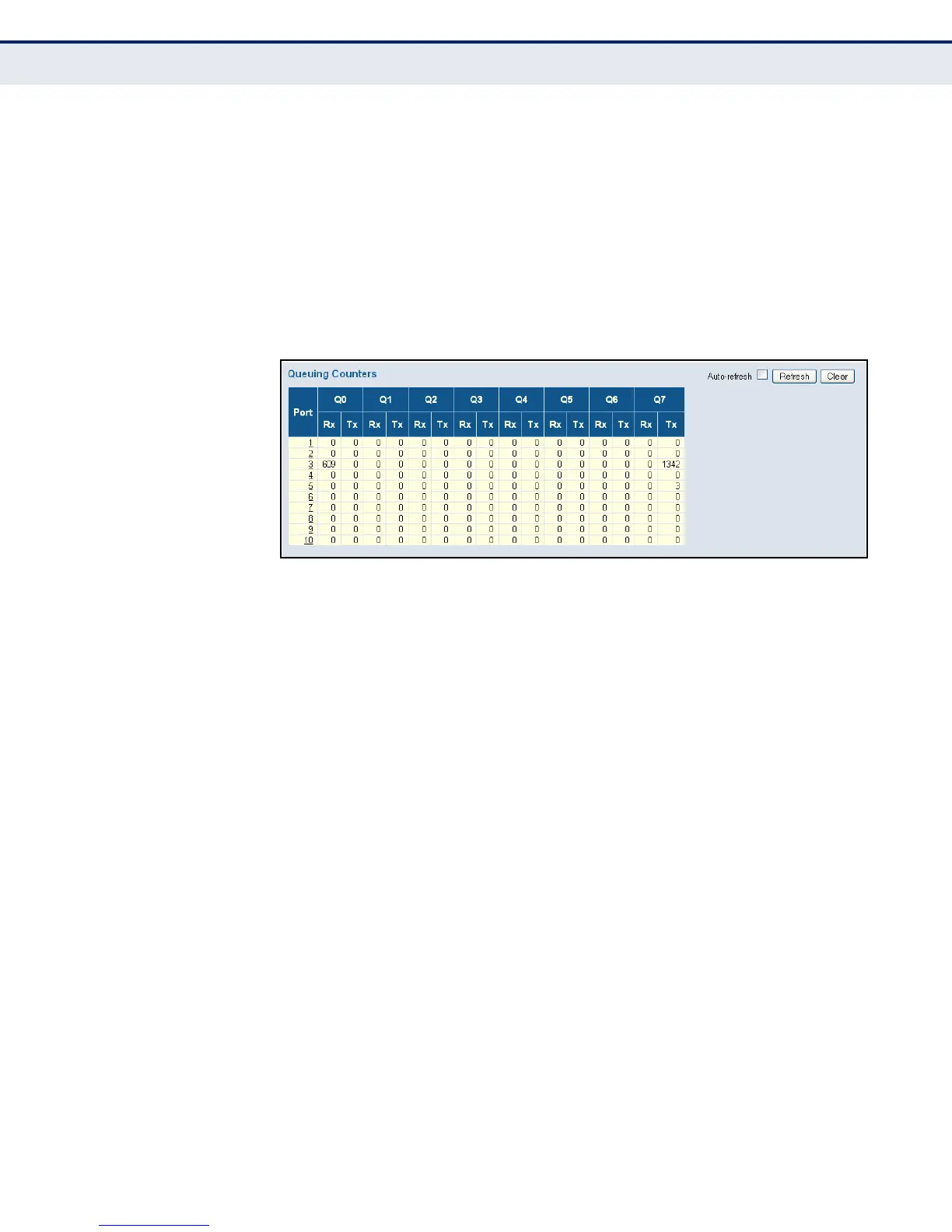

Figure 92: Queueing Counters
DISPLAYING QCL
STATUS
Use the QoS Control List Status page to show the QCE entries configured
for different users or software modules, and whether or not there is a
conflict.
PATH
Monitor, Ports, QCL Status
PARAMETERS
These parameters are displayed:
◆ User – Indicates the user (static entry, software module, or conflicting
entry) of this QCE. The information displayed in this field depends on
the option selected in the drop-down list at the top of this page
(Combined, Static, Voice VLAN, Conflict).
◆ QCE# – QoS Control Entry index.
◆ Frame Type – Indicates the type of frame to look for in incoming
frames. Possible frame types are: Any, Ethernet, LLC, SNAP, IPv4, IPv6.
◆ Port - Port identifier.
◆ Action – Indicates the classification action taken on ingress frame if
the configured parameters are matched in the frame's content. If a
frame matches the QCE, the following actions will be taken:
