C
HAPTER
4
| Configuring the Switch
Quality of Service
– 188 –
WEB INTERFACE
To configure DSCP translation or re-mapping:
1. Click Configuration, QoS, DSCP Translation.
2. Set the required ingress translation and egress re-mapping
parameters.
3. Click Save.

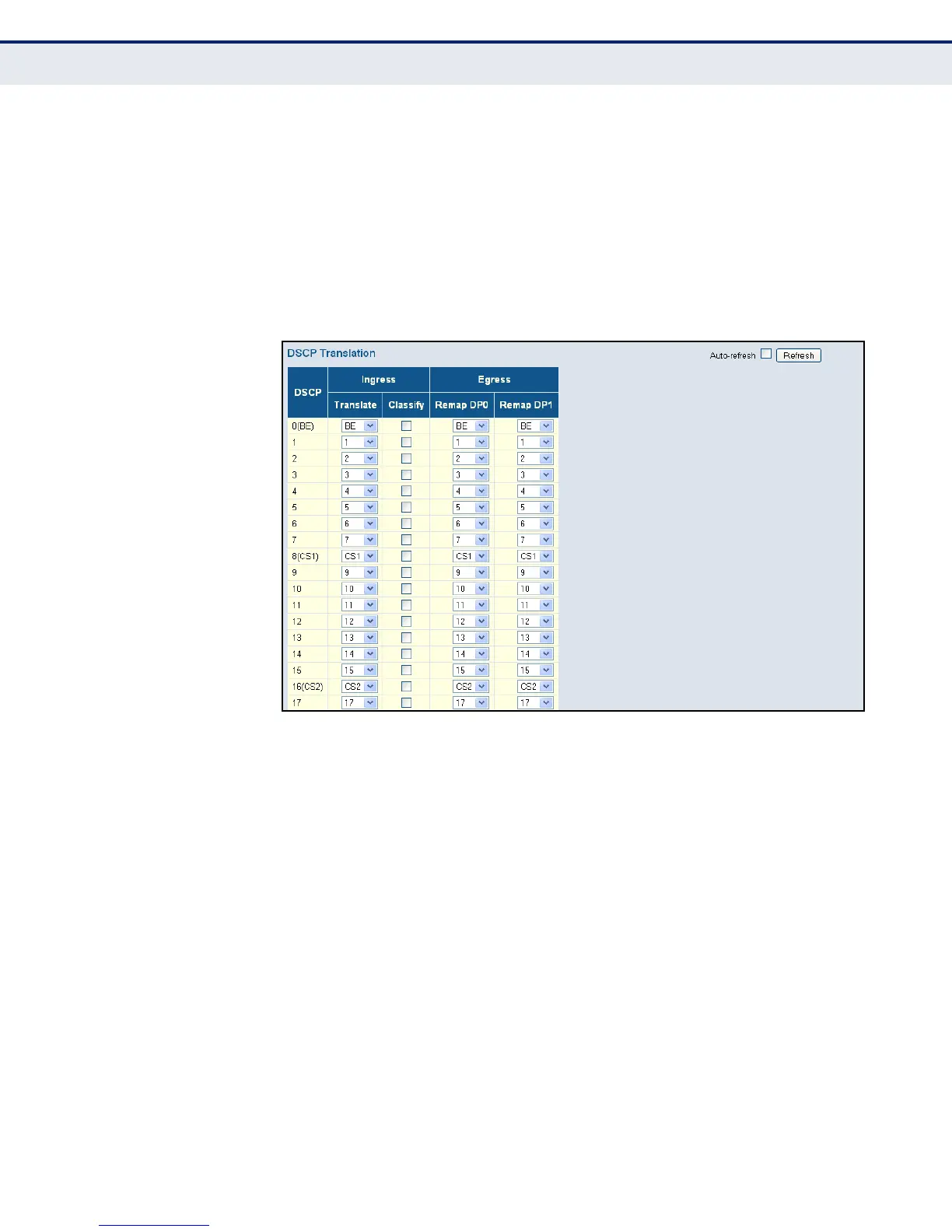

Figure 79: Configuring DSCP Translation and Re-mapping
CONFIGURING DSCP
C
LASSIFICATION
Use the DSCP Classification page to map DSCP values to a QoS class and
drop precedence level.
PATH
Configuration, QoS, DSCP Classification
PARAMETERS
These parameters are displayed:
◆ QoS class/DPL – Shows the mapping options for QoS class values and
DP (drop precedence) levels.
◆ DSCP – DSCP value. (Range: 0-63)
