| Monitoring the Switch
Displaying Information About VLANs
– 253 –
◆ VLAN – The VLAN containing this entry.
◆ MAC Address – Physical address associated with this interface.
◆ Port Members – The ports associated with this entry.
WEB INTERFACE
To display the address table, click Monitor, MAC Address Table.

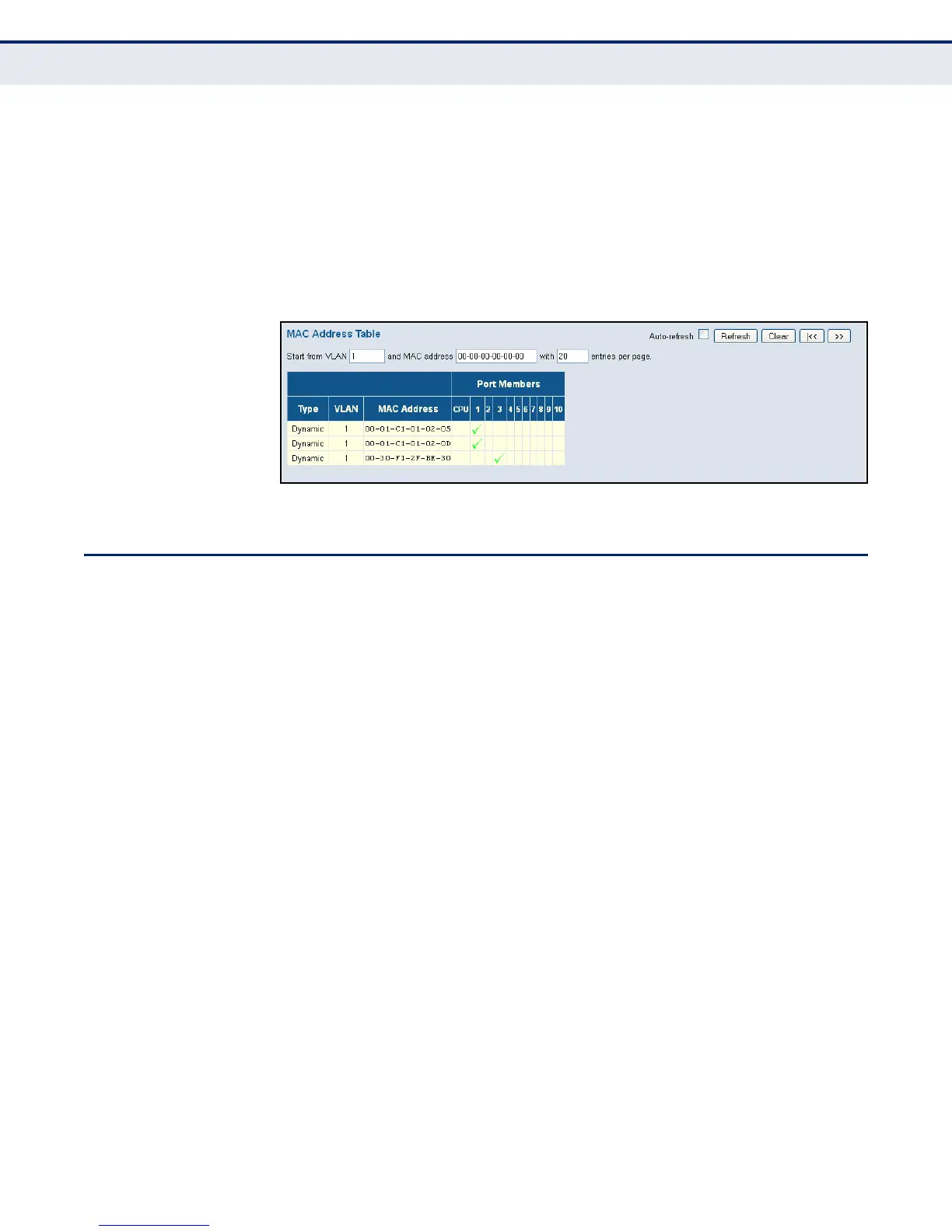

Figure 128: MAC Address Table
DISPLAYING INFORMATION ABOUT VLANS
Use the monitor pages for VLANs to display information about the port
members of VLANs, and the VLAN attributes assigned to each port.
VLAN MEMBERSHIP Use the VLAN Membership Status page to display the current port
members for all VLANs configured by a selected software module.
PATH
Monitor, VLANs, VLAN Membership
PARAMETERS
These parameters are displayed:
◆ VLAN User – A software module that uses VLAN management services
to configure VLAN membership and VLAN port settings such as the
PVID or untagged VLAN ID. This switch supports the following VLAN
user modules:
â–
Static: Ports statically assigned to a VLAN through the CLI, Web or
SNMP.
â–
NAS: Provides port-based authentication, which involves
communications between a Supplicant, Authenticator, and an
Authentication Server.
â–
MVR: Eliminates the need to duplicate multicast traffic for
subscribers in each VLAN. Multicast traffic for all channels is sent
only on a single (multicast) VLAN.
