| Monitoring the Switch
Displaying Information About Ports
– 205 –
DISPLAYING AN
OVERVIEW OF PORT
STATISTICS
Use the Port Statistics Overview page to display a summary of basic
information on the traffic crossing each port.
PATH
Monitor, Ports, Traffic Overview
PARAMETERS
These parameters are displayed:
◆ Packets Received/Transmitted – The number of packets received
and transmitted.
◆ Bytes Received/Transmitted – The number of bytes received and
transmitted.
◆ Errors Received/Transmitted – The number of frames received with
errors and the number of incomplete transmissions.
◆ Drops Received/Transmitted – The number of frames discarded due
to ingress or egress congestion
◆ Filtered Received – The number of received frames filtered by the
forwarding process.
WEB INTERFACE
To display a summary of port statistics, click Monitor, Ports, Traffic
Overview.

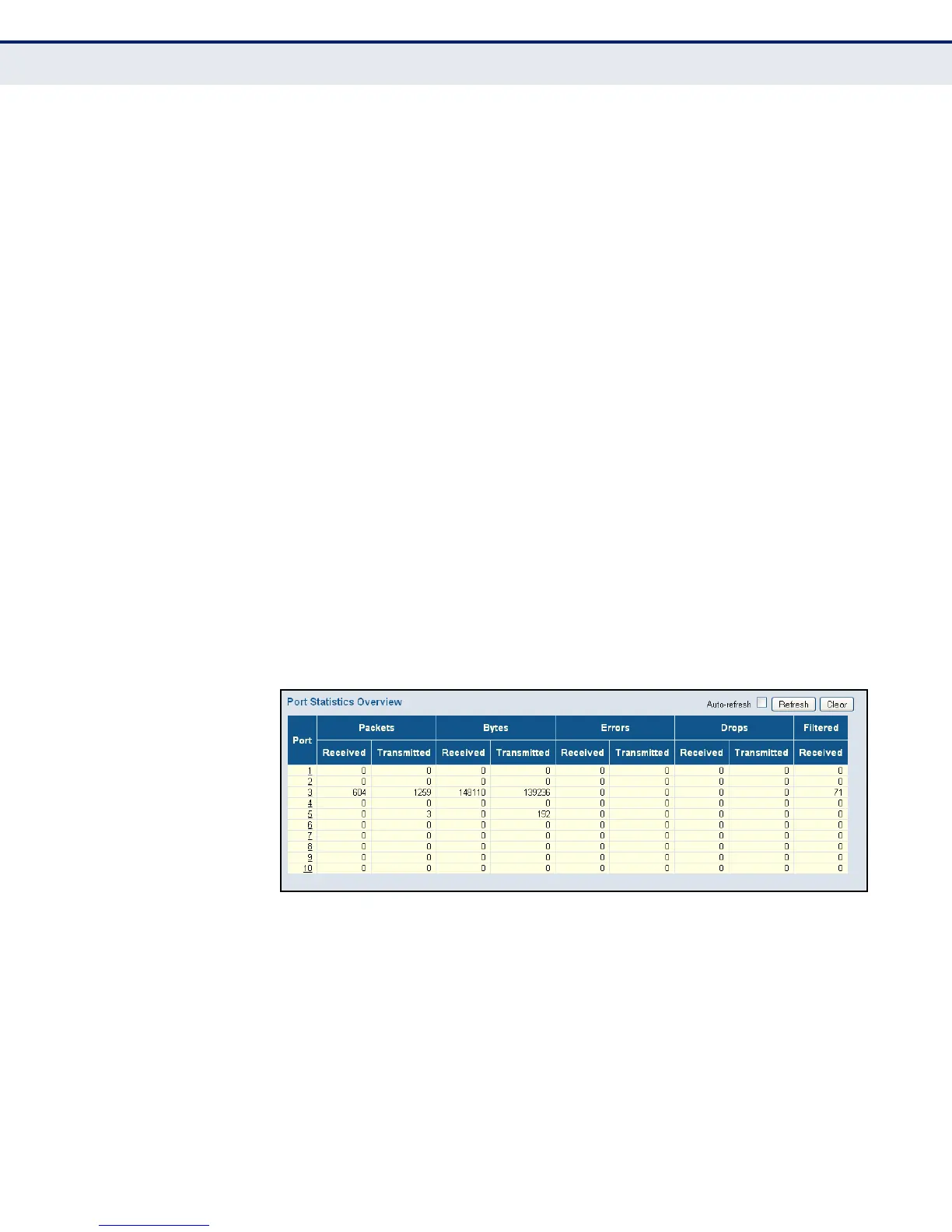

Figure 91: Port Statistics Overview
DISPLAYING QOS
STATISTICS
Use the Queuing Counters page to display the number of packets
processed by each service queue.
PATH
Monitor, Ports, QoS Statistics
