C
HAPTER
4
| Configuring the Switch
Using Port Isolation
– 166 –

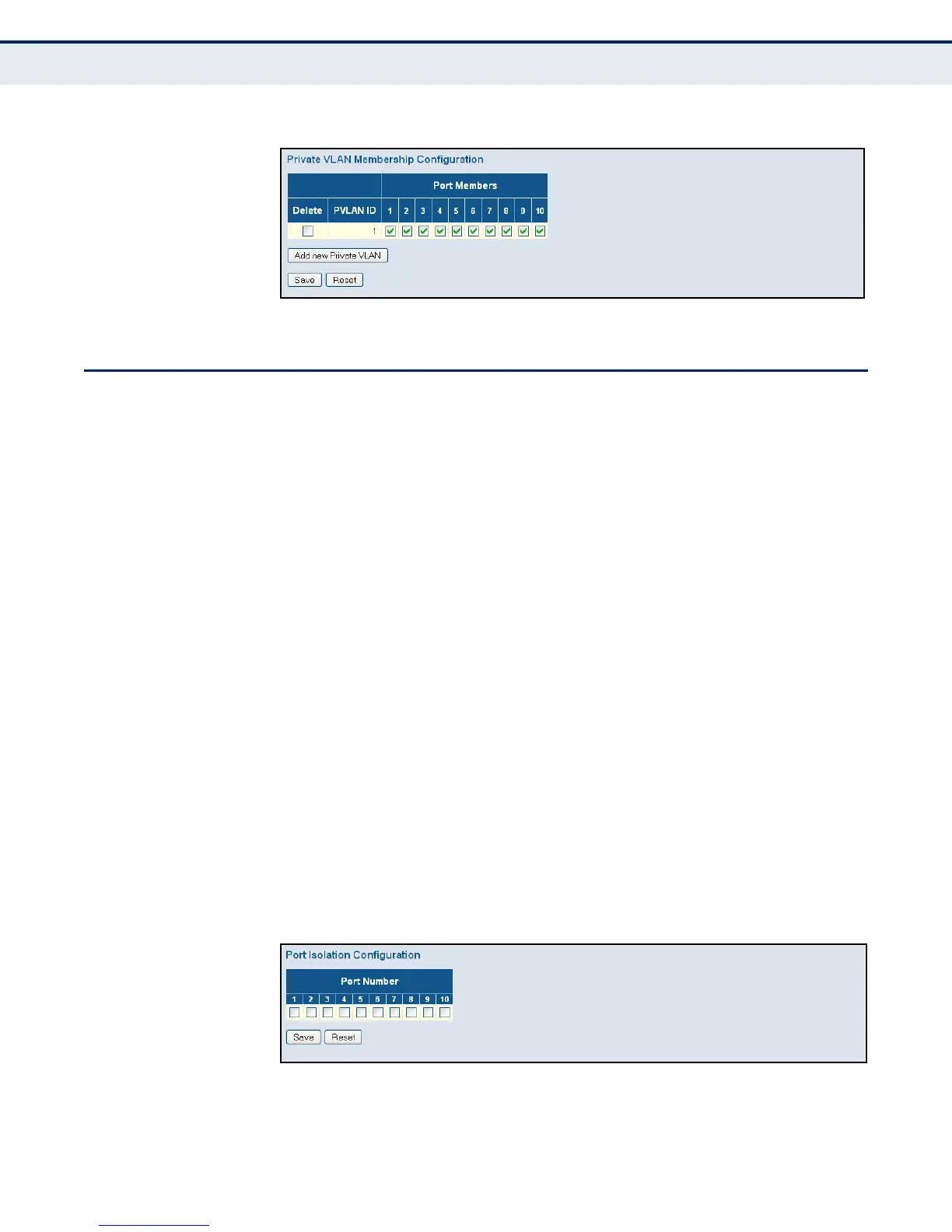

Figure 63: Private VLAN Membership Configuration
USING PORT ISOLATION
Use the Port Isolation Configuration page to prevent communications
between customer ports within the same private VLAN.
Ports within a private VLAN (PVLAN) are isolated from other ports which
are not in the same PVLAN. Port Isolation can be used to prevent
communications between ports within the same PVLAN. An isolated port
cannot forward any unicast, multicast, or broadcast traffic to any other
ports in the same PVLAN.
PATH
Configuration, Private VLANs, Port Isolation
PARAMETERS
These parameters are displayed:
â—† Port Number - Port identifier.
WEB INTERFACE
To configure isolated ports:
1. Click Configuration, Private VLANs, Port Isolation.
2. Mark the ports which are to be isolated from each other.
3. Click Save.
Figure 64: Port Isolation Configuration
