GW2145 - GW1160 - GW4060 - GW4190
GW1160, GW4060 Series

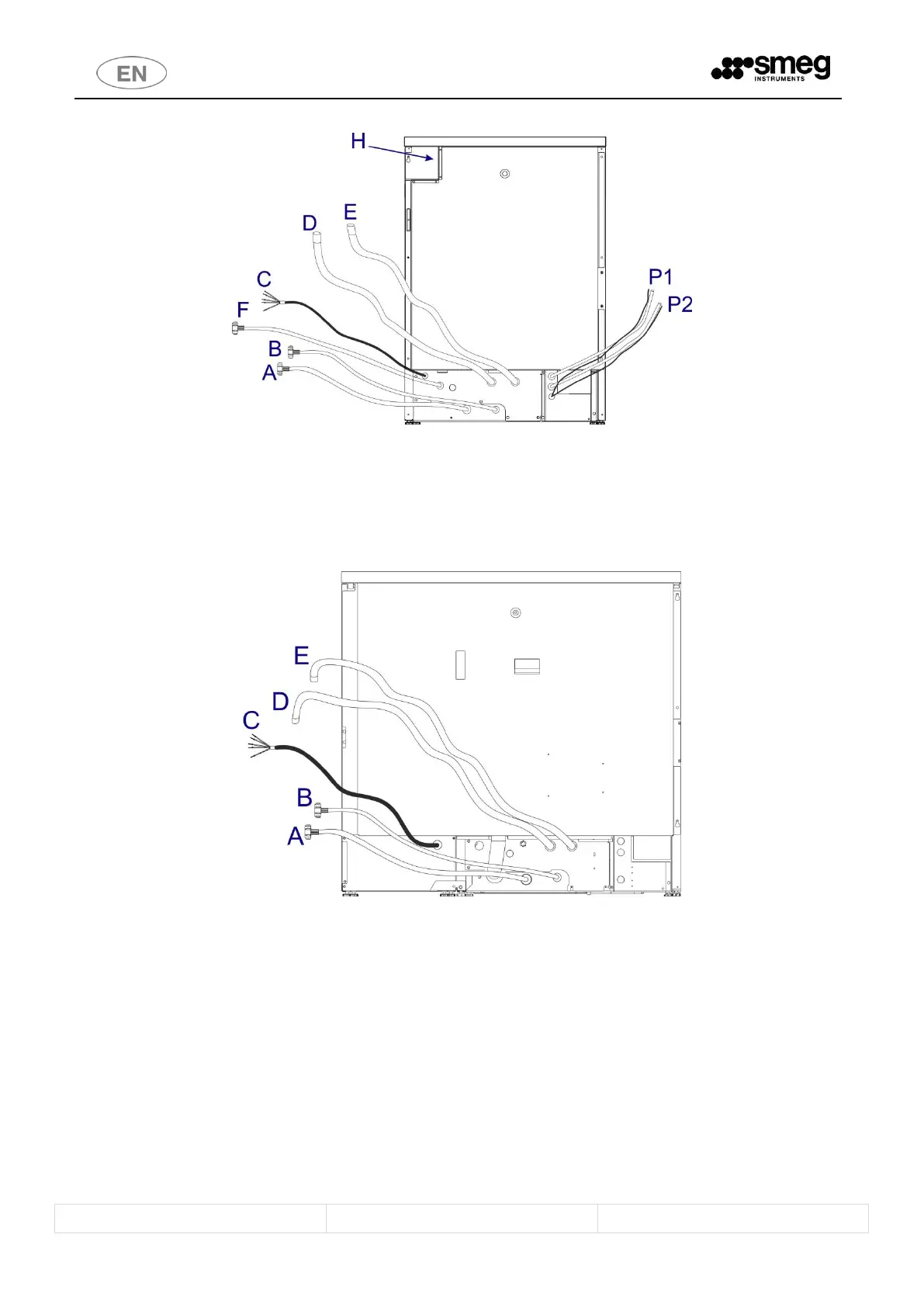

fig. 49 – Diagram of connections on rear of appliance.
GW4190 Series
On the GW4190 series, the detergent intake connections “P1” and “P2” are inside the side cabinet and are accessed
by opening the hatch. The connections are marked for identification with P1 (detergent) and P2 (acid neutraliser).
fig. 50 – Rear of GW4190: Simplified drawing, connections on rear of the device.
