Snap‐on EEWB330AHandspinWheelBalancer
Option2:Donotturnthetireoveronth
erim.Pressthe
FINEkey(3
).Theresultisrecalculated.ReadingUn.7 ‐IIor
H0appearsOption3:PresstheSTOPkey(5)toexitthe
minimizationprogramandreturn tothebalancing
program.Theimbalanceonthewheelisshownonthe
readout.Balancethewheelaccordingtothereadings. 
(Readinguppermanently).

Option1:Readjustthetireontherim(normalprogram).
Readjustthewheelaccordingtotherightdirection
indicatorandmakeadoublemarkontherightsideofthe
tireexactlyperpendiculartoandabovethemainshaft.
Un.7‐II(Fig.5‐37).Readjusttireontherim(theright
displaybarslightmainshaftFig.5‐38).Removethewheel
fromthemachine.Readjustthetireontherimuntilthe
doublemarkcoincideswiththevalve(Fig.539).Clamp
thewheelonthebalancerandre‐adjustitsothatthe
valveisexactlyperpendicula rtoandabovethemain

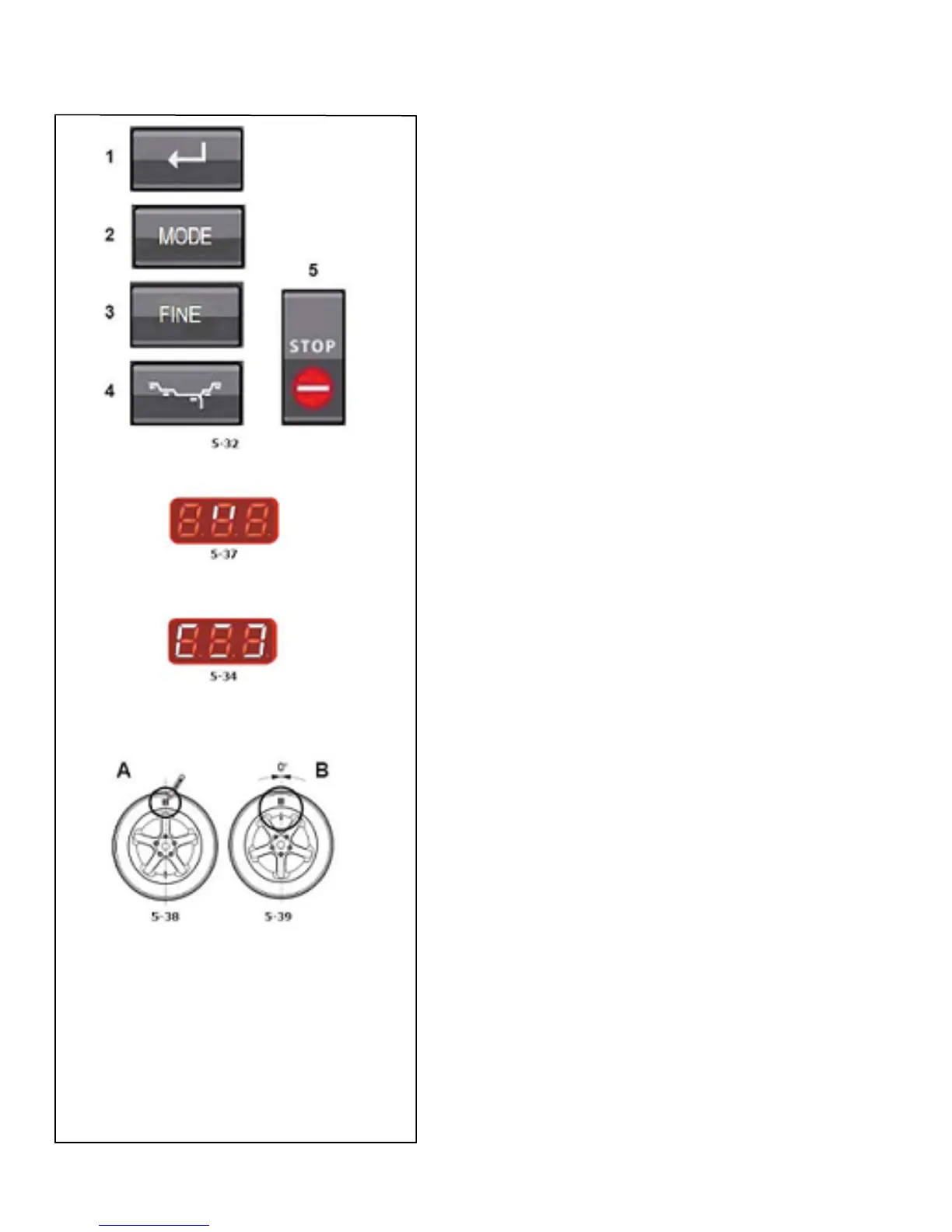

shaft.PresstheENTERkey(1)toacquirethevalve
position.ReadingUn.8appears(Fig.5‐34).Spinthe
wheel(START)(checkrun).Ifweightmini mizationwas
carriedoutcorrectly(accordingtotheprogramcycle),
themachineautomatically returnstothetypeofweight
positioningpreviouslyselectedandindicatestheresidual
dynamicimbalanceonthewheel.Balancethewheel
accordingtothereadings.
Bothweightminimizationandbalancingare
accomplished.MessageE9meansthatatleastoneerror
occurredduringtheminimizationcycle.PresstheSTOP
key(5)toexittheminimizationprogramandrepeat
minimizationifnecessary.Option2:Donotre‐adjustthe
tireontherim.PresstheSTOPkey(5)toexitthe
minimizationprogramandreturntothebalancing
program.Theimbalanceonthewheelisshownonthe
readout.Balancethewheelaccordingtothereadings. 
ReadingH0.Theoptimumminimizationconditionhas 
beenachievedandcannotbeimproved.PresstheSTOP
key(5)toreturntothebal ancingprogramandcontinue
accordingtothereadings.
