11
EEWB334A
4-10
1
2
3
4 5
6
7A 7B
8A 8B
9

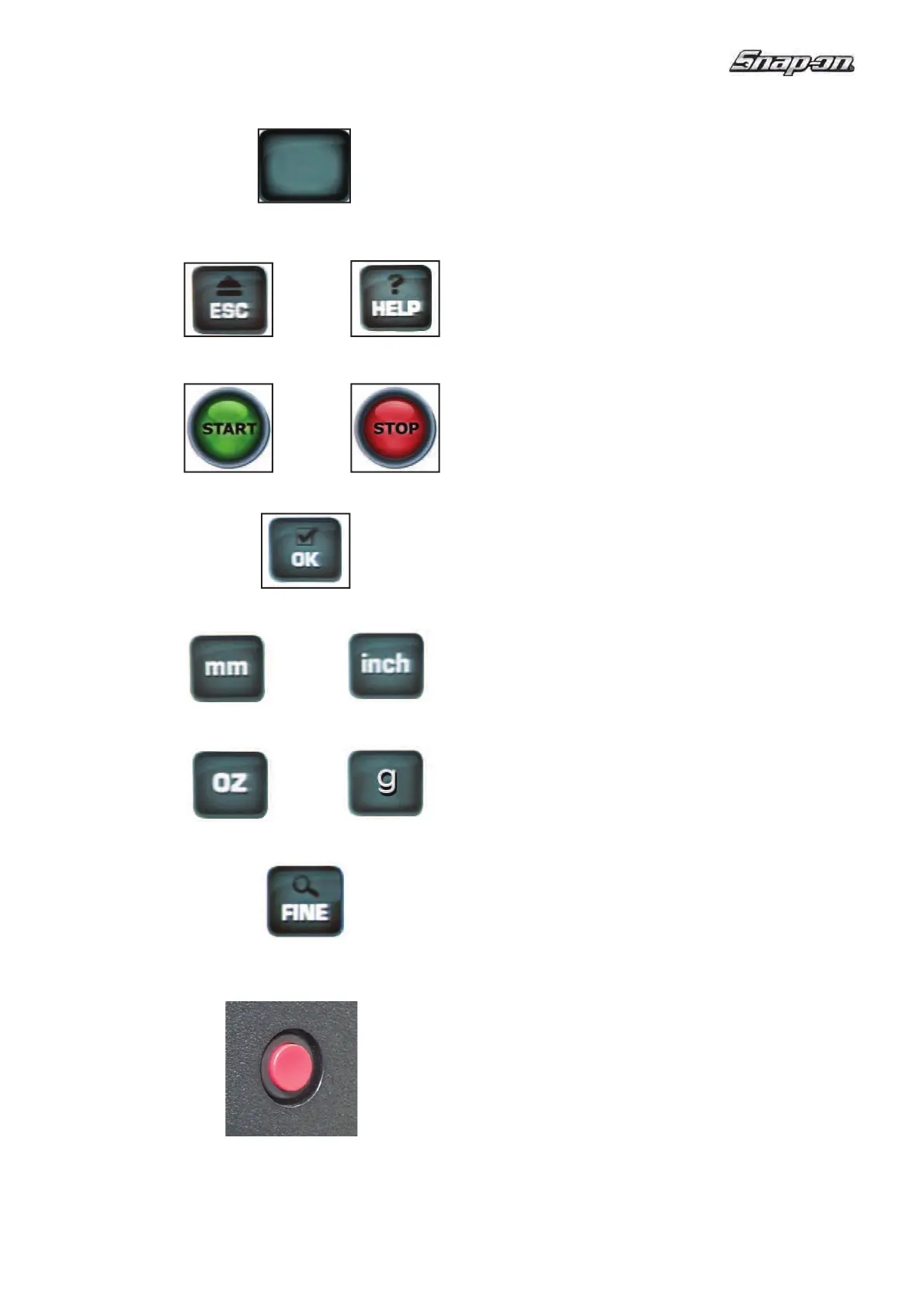

4.1.2 Basic Commands
Key pad
1
Menu Keys (one for each Menu ! eld)
2 ESC key
3 HELP key
4 START key
5 STOP key (emergency stop)
6 OK key (to con! rm)
Description of keys
1 Keys (example)
- Activate certain functions for the execution and con-
tinuation of a speci!
c operation of the cycle.
The function of menu keys is indicated by the relevant
symbols displayed on the monitor.
2 ESC key
- Switches back to the previous screen (status).
- Exits the C code procedures.
- Clears help texts and error messages.
3 HELP key
- Displays useful information that explains the ope-
rating condition and - in case of error messages
- provides help to solve the error.
4 START key
- Starts the measuring run. Press to start wheel rota-
tion, with the wheel guard down.
5 STOP key
- Immediately stops a wheel run already started.
6 OK key
- Con! rms the Menu option previously selected.
7 A/B Key mm / inch
- Switches the readings display between millimetres
and inches.
8 A/B Key g / oz
- Switches the readings display between grams and
ounces.
9 FINE key
- Activates the ! ne reading of the residual imbalances.
The operation of the key is timed and it automatically
returns to the basic display.
Electromechanical STOP
Figure 4-10
When
the Electromechanical Stop Button is pressed,
the wheel rotation is stopped.
