Reading of error code E9
If E9 is read out, at least one error was made with
respect to the sequence of operations when performing
optimization (System messages F 7.1).
— Abort the optimization program by pressing the
STOP key and, if desired, start optimization once
again.

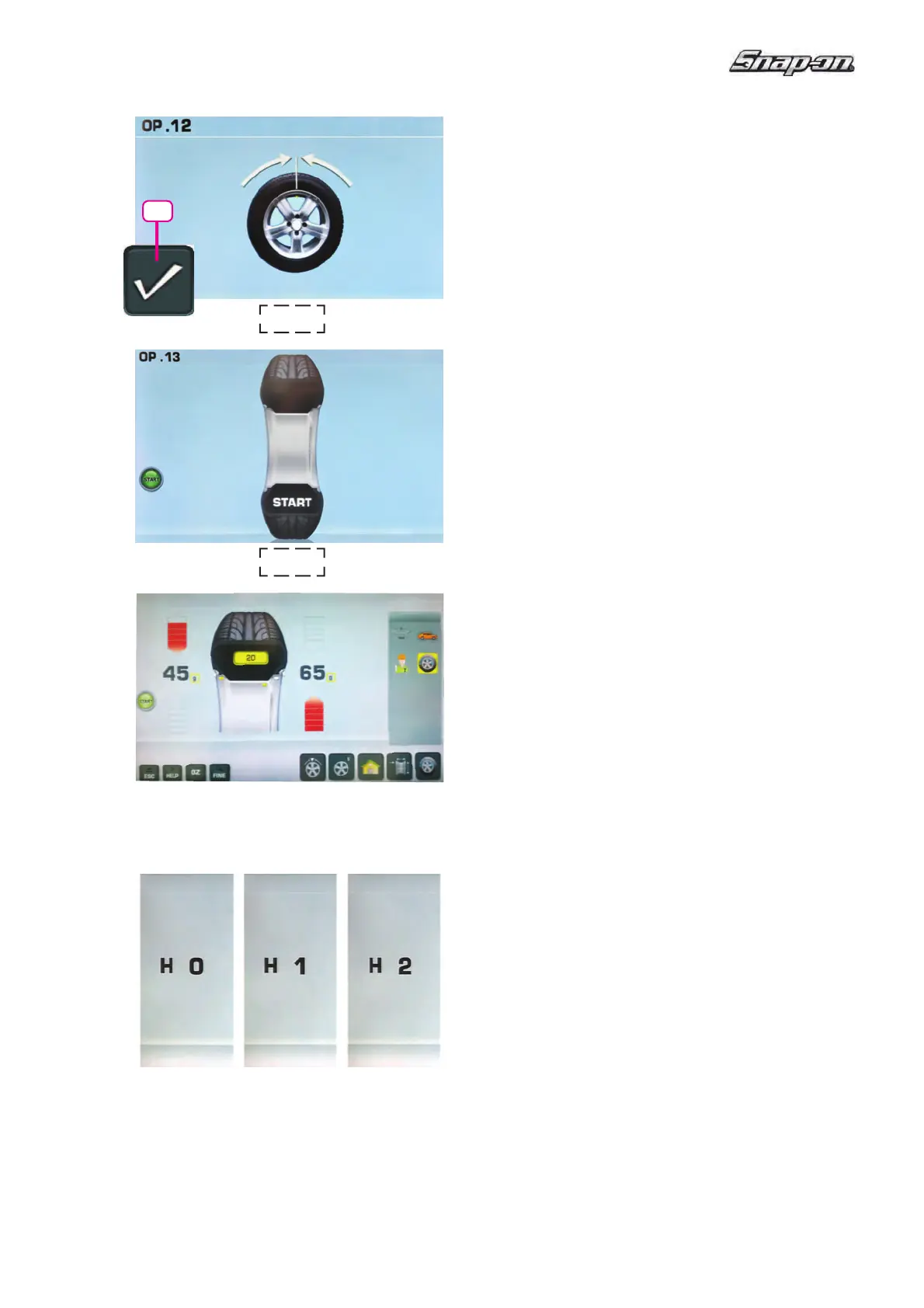

Fig. 5-49 OPTIMIZATION “OP.12”
(Fourth measuring run of tire/rim assembly)
— Clamp the wheel on the balancer.
— Rotate the wheel such that the valve is exactly
perpendicular to and above the main shaft.
— Con! rm the valve position by pressing menu key
26.
The OPTIMIZATION “OP.13” screen (Fig. 5-50) is
displayed.
Fig. 5-50 OPTIMIZATION “OP.13”
START is displayed on the screen.
— Spin the wheel.
A measuring run is performed.
The BALANCING screen (Fig. 5-51) is displayed.
Finish Weight Optimization
Fig. 5-51 BALANCING
— Balance the wheel according to the readings.
If the wheel running conditions are optimal, the
following codes can be displayed (Fig. 5-52):
H0 Wheel running conditions cannot be improved by
optimization.
H1 Further optimization not recommended but
feasible.
H2 Weight minimization is recommended, optimization
can achieve no further improvement.
