45
EEWB334A
5-55
5-57
5-56
5-58
5-59
26
26
26

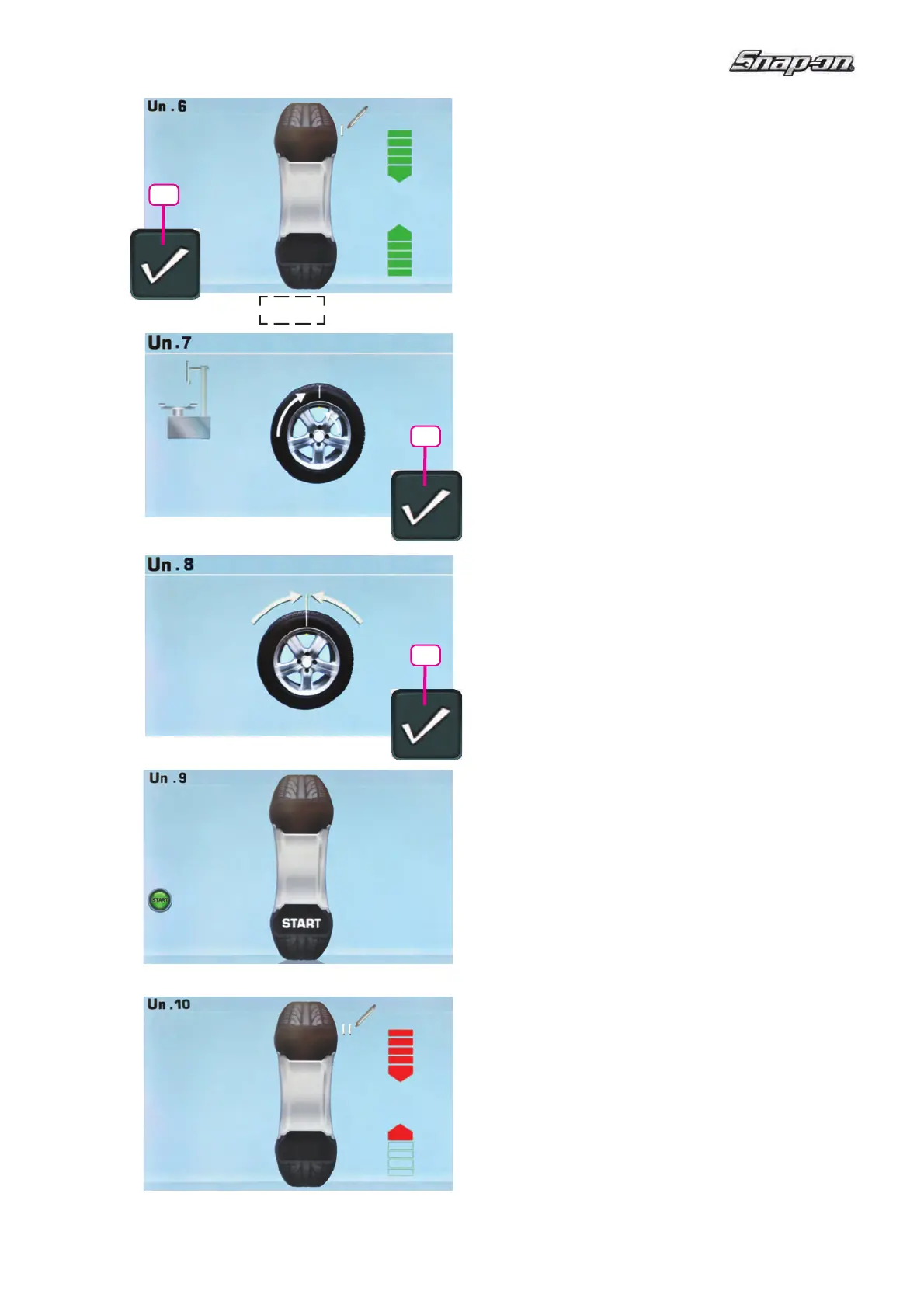

Fig. 5-55 MINIMIZATION “Un.6”
— Rotate the wheel into marking position following
the arrows.
—
In this position mark the tire, on the outer side of
the wheel, precisely above the main shaft.
— Con! rm by pressing the key 26.
The MINIMIZATION “Un.7” screen (Fig. 5-56) is
displayed.
Fig. 5-56 MINIMIZATION “Un.7”
— On the tire changer, turn the tire relative to the
rim until the valve is aligned with the mark made
on the tire.
— Con! rm by pressing the key 26.
The MINIMIZATION “Un.8” screen (Fig. 5-57) is
displayed.
Fig. 5-57 MINIMIZATION “Un.8”
— Clamp the wheel on the balancer.
— Rotate the wheel such that the valve is exactly
perpendicular to and above the main shaft.
—
Enter the valve position by pressing
the
key
26
.
The MINIMIZATION “Un.9” screen (Fig. 5-58) is
displayed.
Fig. 5-58 MINIMIZATION “Un.9”
START is signaled on the screen.
— Spin the wheel.
A measuring run is performed.
The screen MINIMIZATION “Un.10”, outside (Fig. 5-59)
or the screen MINIMIZATION “Un.10”, inside (Fig.
5-61) is displayed.
Reading H 0
Optimum condition has been achieved and cannot be
improved.
— Continue as shown on screen BALANCING
(Fig. 5-51).
