iii Installation Procedures
Wheel balancer:
Refer to the drawing in i for correct wheel balancer
positioning. If the wheel balancer needs securing,
we recommend ! xing elements with a diameter of
8 mm, quality 8.8 or higher.
Supports for Accessories:
• Unpack the 4 threaded accessory support studs
and the support plates.

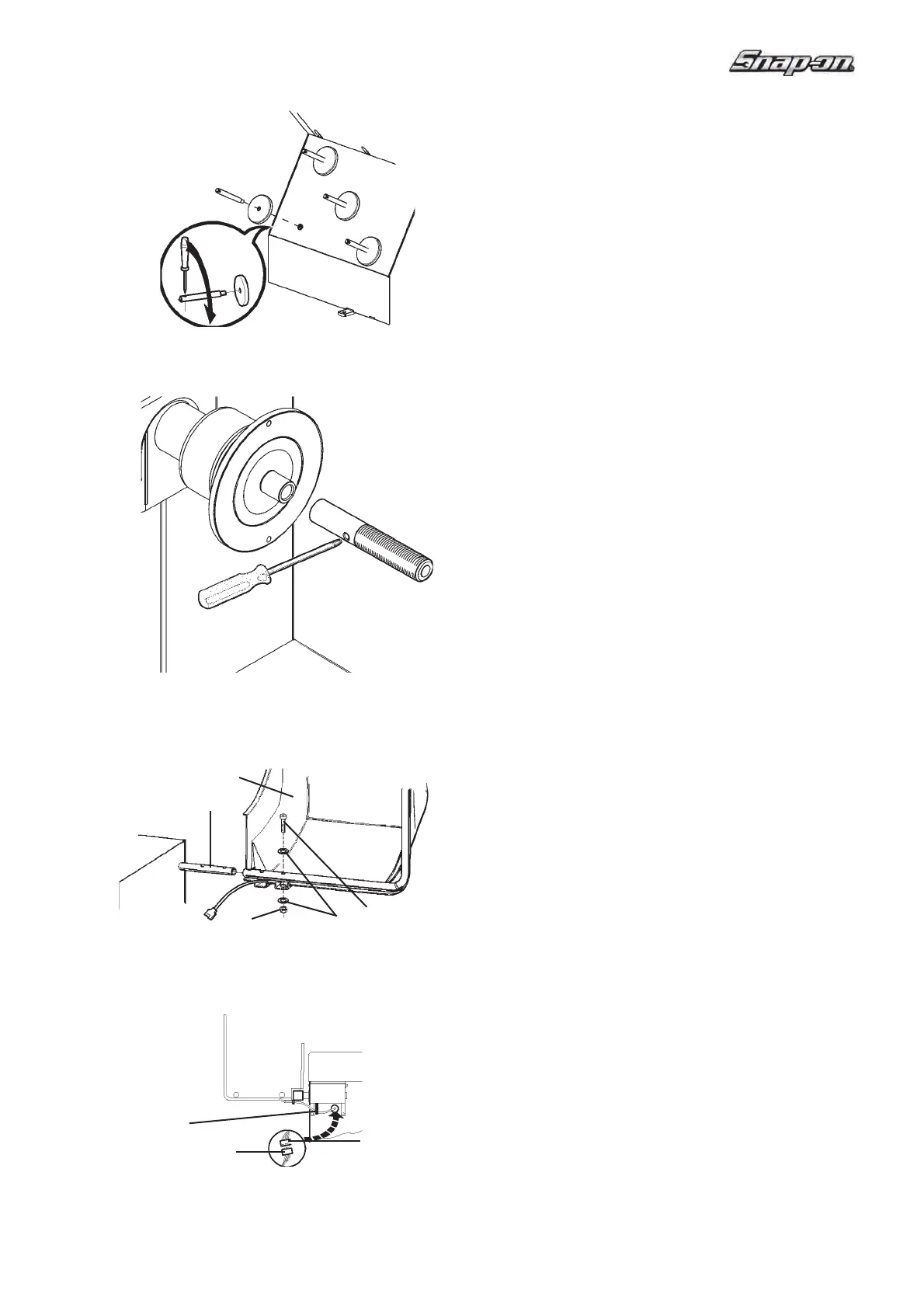

• Refer to Figure iii-1. Fit the 4 threaded accessory
support studs and the plates.
Threaded Shaft:
• Clean the threaded shaft and the hole in the main
axis
• Refer to Figure iii-2. Position the threaded shaft.
• Use a pin to screw.
Clamping Devices:
• Put the clamping devices on the accessory studs.
Wheel Guard:
• Refer to Figure iii-3.
The wheel guard infl uences the following modes
of operation:
— The measuring run is started by closing the wheel
guard (code C 13).
— The wheel is braked on lifting the wheel guard
during a measuring run (code C 5).
Fig. iii-3
— Slide the wheel guard (1) on the arbor (2) and raise
it until the fastening holes of wheel guard and wheel
guard arbor coincide.
— Insert the M10 setscrew (3) with washer (4) from
below, and tighten the hexagon nut (5) and washer.
Fig. iii-4
— Connect the plug of the cable (6) with the connector
of the machine (7) which is projecting out of the
opening in the machine cabinet.
— Place the plugs loosely inside the machine through
the hole in the machine cabinet.
Caution:
Since the cable is moved during opening and closing
the wheel guard, it must be passed in the band (8, Fig.
iii-4) under the wheel guard.
