Single Bar Calibration

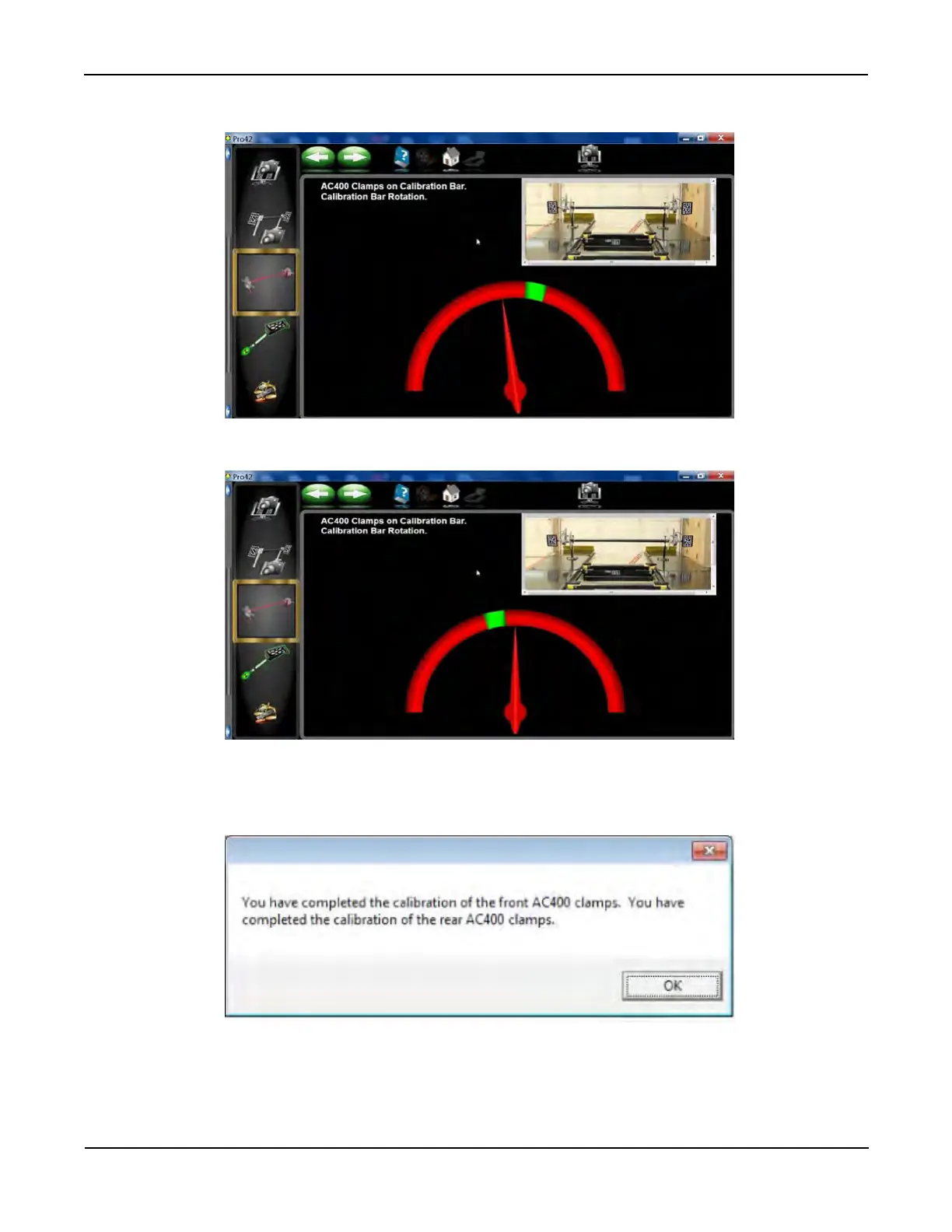

21. Rotate the calibration bar rearward and lock it using one of the locking knobs on the stands until a stop sign
appears.
22. Rotate the bar forward and lock it using one of the locking knobs on the stands until a stop sign appears.
23. Repeat steps 20 thru 21.
24. After a successful calibration a completion ag should appear.
25. Depending on the wheel clamp and target being calibrated the necessary calibration les will be updated
with the new values.
26. Using a vehicle with known alignment angles verify the alignment system before returning it to service.
27. Calibration Complete.
