Snap-On Ultra User Manual

79
Single Bar Calibration

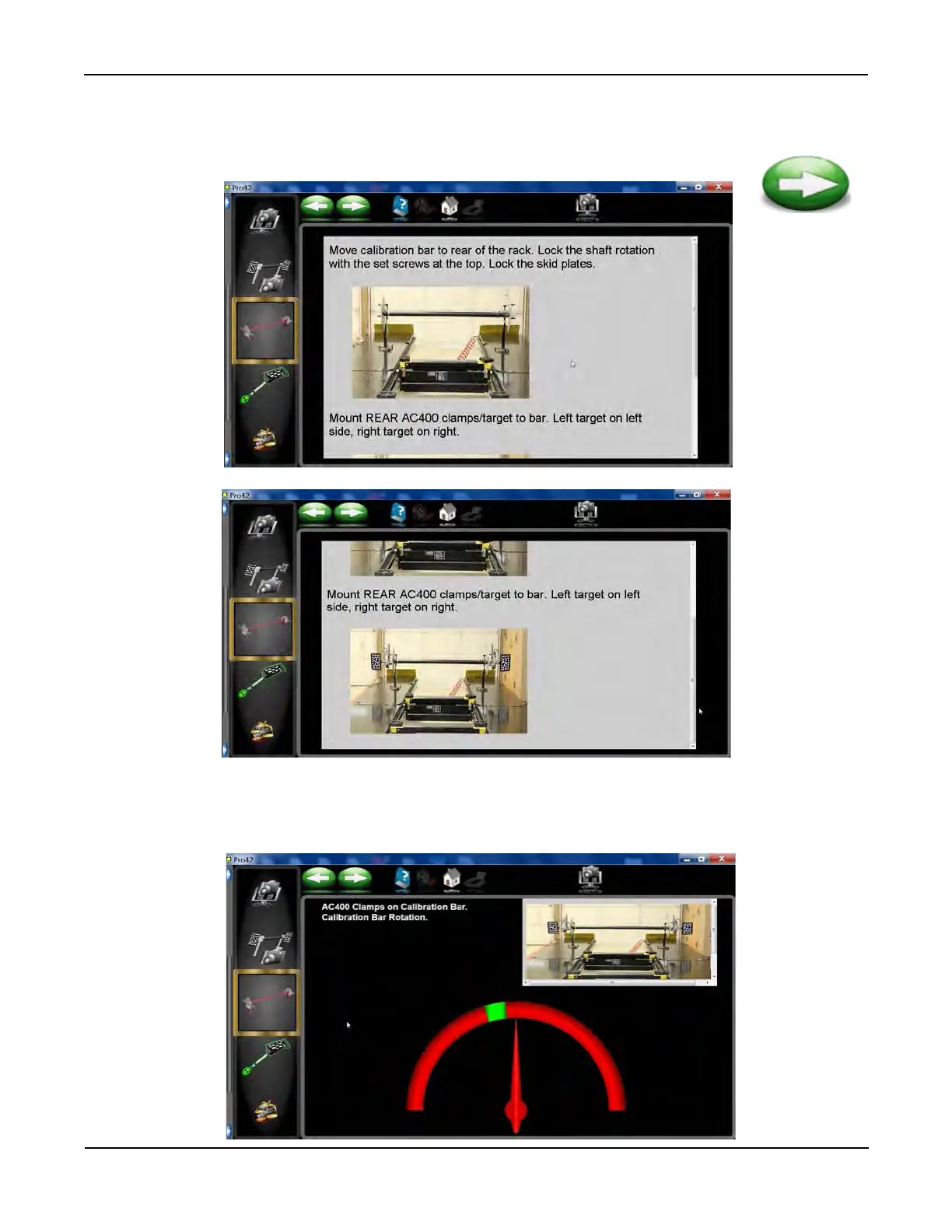

19. After the rear target assembly has been measured on the front of the rack the software will prompt the user
to move the bar and stand assembly to the rear of the alignment rack. Again make sure that the bar and
stands are on a solid surface. The rear slip plates must be pinned. Press the “Next” button to continue.
20. Rotate the bar forward and lock it using one of the locking knobs on the stands until a stop sign appears.
