SnowEx RDV V-Plow - T-Frame to Blade Assembly

Lit. No. 30118, Rev. 00 June 15, 2020
9
BLADE, T-FRAME & HEADGEAR
T-FRAME TO BLADE ASSEMBLY

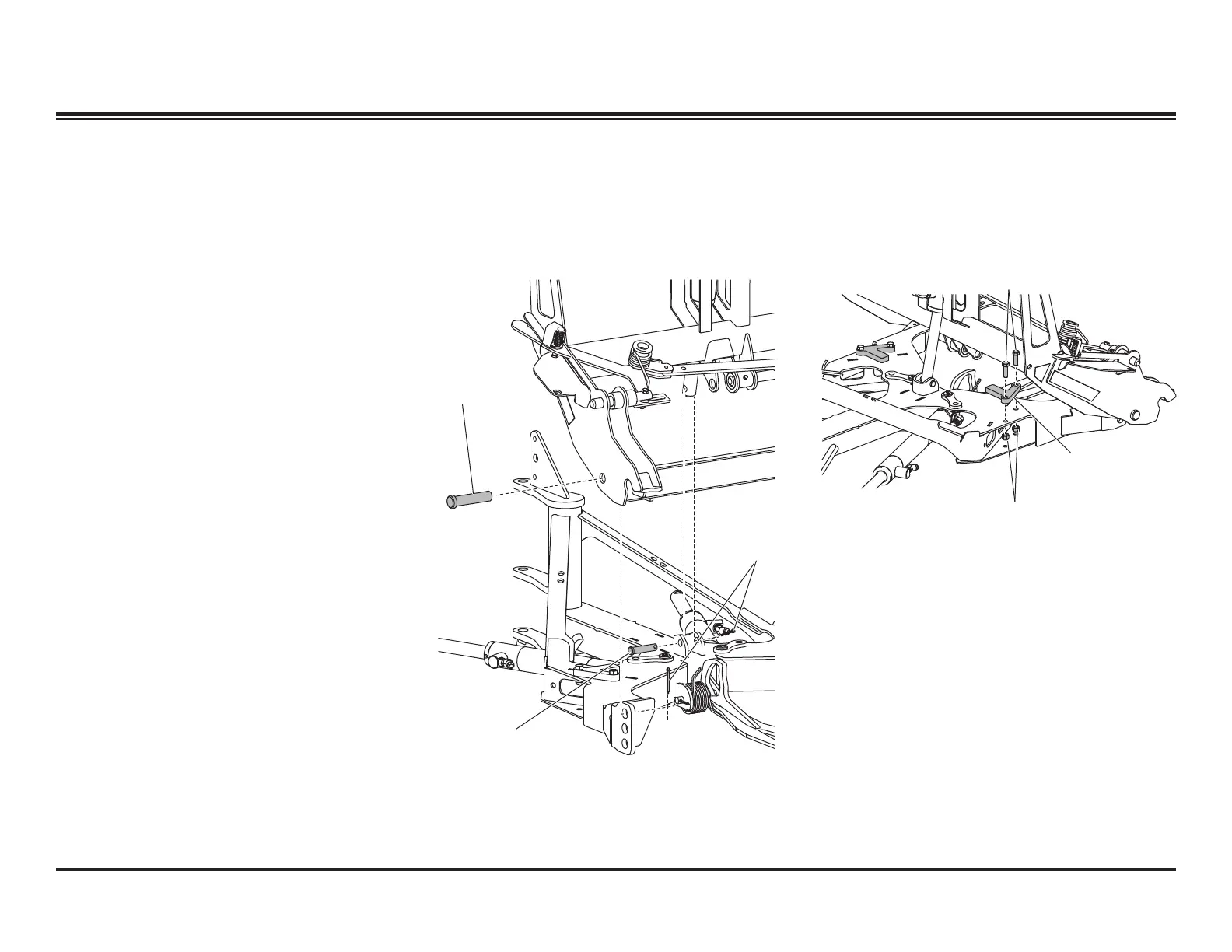

1. Position the T-frame between the headgear
strut and inner ear, aligned with the appropriate
T-frame hole.
2. On each side, insert 3/4" x 3-1/4" clevis
pins (from the shipping bracket) from the
outside of the headgear through the correct
T-frame holes. Secure the clevis pins with
5/32" x 1-1/2" cotter pins found in the parts
bag.
Based on Installation Instructions for RDV™ V-Plow (Lit. No. 74912, Rev. 00).
3. Fold the headgear forward and pin
the lift cylinder to the T-frame using a
1/2" x 2-1/8" clevis pin and 5/32" x 1-1/2" cotter
pin from the parts bag.
3/4" x 3-1/4"
Clevis Pin
5/32" x 1-1/2"
Cotter Pins
1/2" x 2-1/8"
Clevis Pin
3/4" x 3-1/4"
Clevis Pins
Stacking Stop
3/4" Locknuts
4. If the T-frame was installed into the top hole,
install the stacking stops using
3/8” x 1-1/4” cap screws and 3/8” locknuts.
