CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS
User maintenance guide
3 - Assembly
3.1 - Precautions and recommendations
●● Do●not●overtighten●screws●and●bolts.
● Tightening torque Ø 6 = 10 to 12 mN.
● Tightening torque Ø 8 = 12 to 23 mN.
● Tightening torque Ø 10 = 23 to 47 mN.
● Tightening torques for rims on hub : 25 mN.
● Screws without bolts: 1 drop of special glue
(LU861.001).
● Lubricate rotating parts, ball joints, gas cable ...
3.2 - Assembly of the steering column and
steering wheel
3
6
4
7
5
2
6
8
1

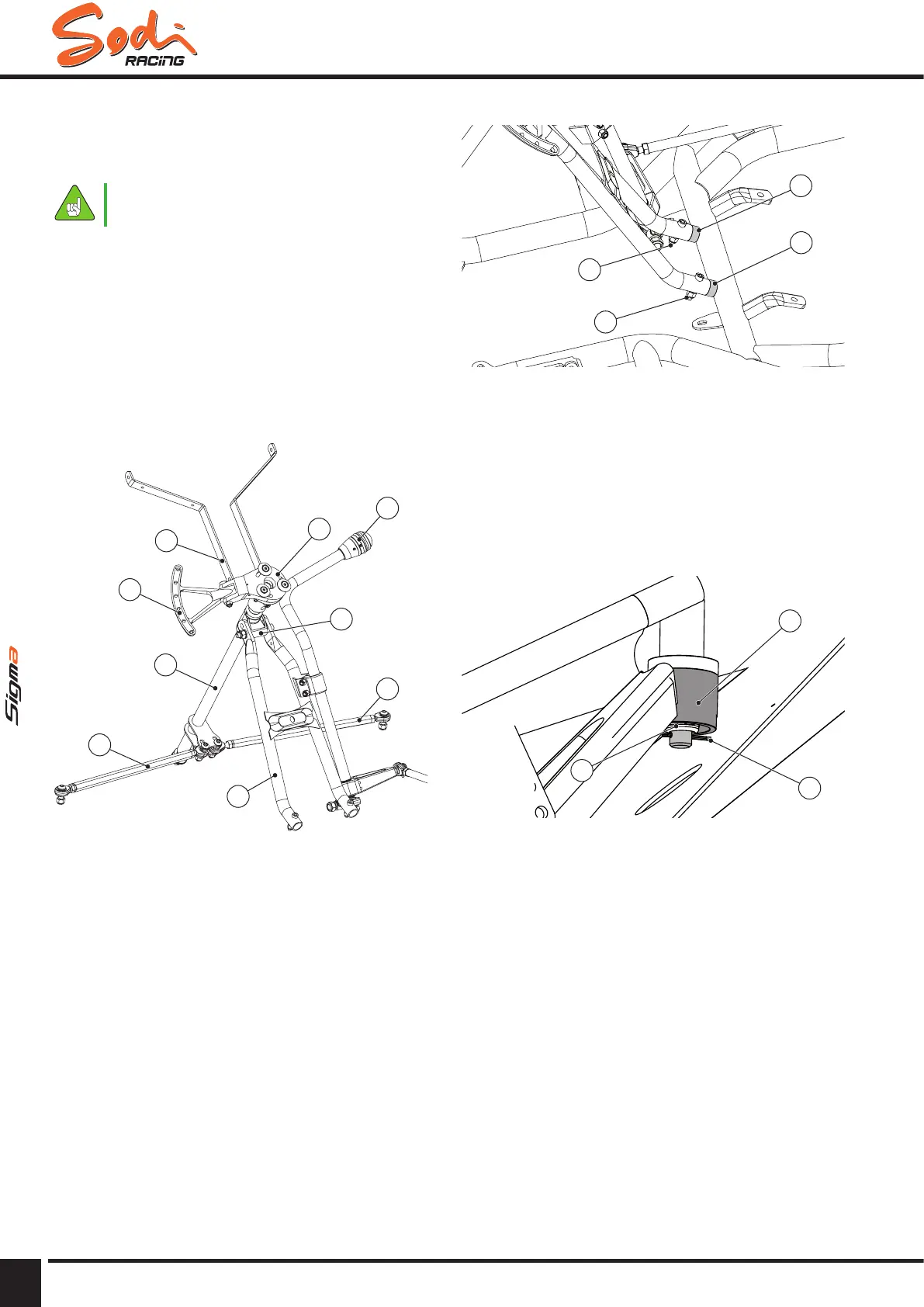

Legend
1 Plastic steering column support
2 Steering wheel support
3 Nassau panel support
4 Steering column
5 Steering column support
6 Steering tie rods + Ball joints
7 Clutch handle (KZ only)
8 Gearbox control lever (KZ only)
● Raise the set as in picture.
Step 1
2
2
1
1
Legend
1 Pin canon
2 Screw + nut
● Place the steering column support on the two pins
canons (1).
● Put the screws + nuts (2) as indicated in picture.
● Tighten the assembly.
Step 2
2
1
3
Legend
1 Ball joint
2 Nut
3 Split pin
● Insert the threaded end of the steering column in the
ball joint (1).
● Tighten the nut (2).
● Tighten the assembly.
● Put the split pin (3) into the hole of steering column.
