CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS
User maintenance guide
5.2.4 - Adjustment of the camber
Use●the●eccentrics●at●the●bottom.

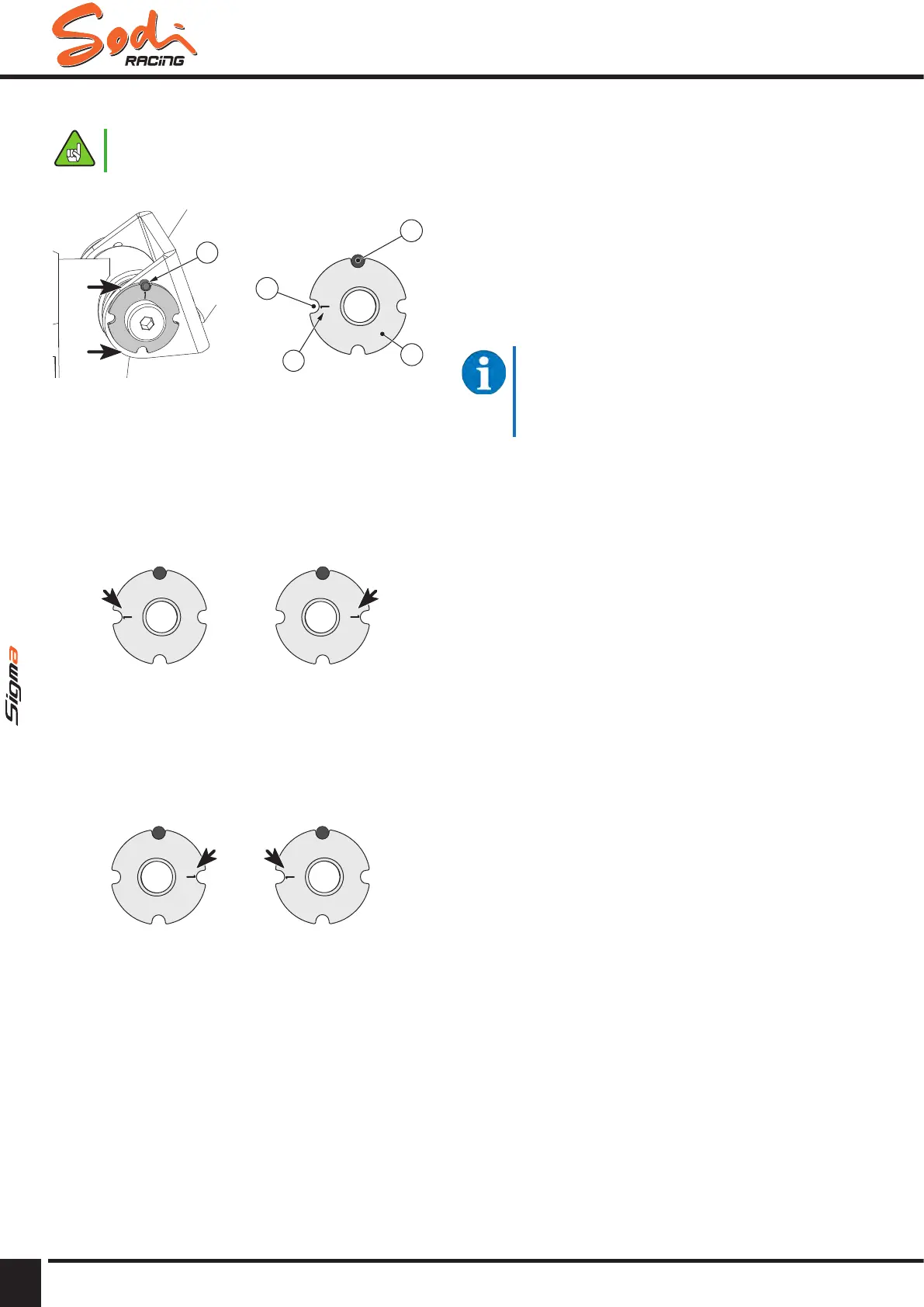

Description of the eccentric
Front
Rear
2
1
3
4
2
Legend
1 Eccentric
2 Screw on the fork
3 Marked slot
4 Mark
(1=0.5°, 2 eccentric marked "1" gives 1°)
Camber - More positive
Left
Right
Front
Rear
Front
Rear
Bottom
Eccentrics at the bottom:
The mark is positioned towards the outside of the
chassis.
Camber - More negative
Left
Right
Front
Rear
Front
Rear
Bottom
Eccentrics at the bottom:
The mark is positioned towards the inside of the
chassis.
Standard adjustment
See "Camber - More positive".
Increase the camber
Same position as the “More negative” adjustment by
replacing the lower 1° eccentric by the 2° eccentric.
Reduce the camber
Same position as the "More positive" adjustment.
See "Camber - More positive".
For high degrees eccentrics to be used
in extreme conditions, refer to the ITAKA
website
Some negative camber generally improves
the performances of the kart.
Note: To facilitate adjustment of camber and caster, it
is possible to loose the screw (2). In this case be
careful to not lose the screw.
