This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
9
USE SPARE PARTS OF SODI ORIGIN
User maintenance guide

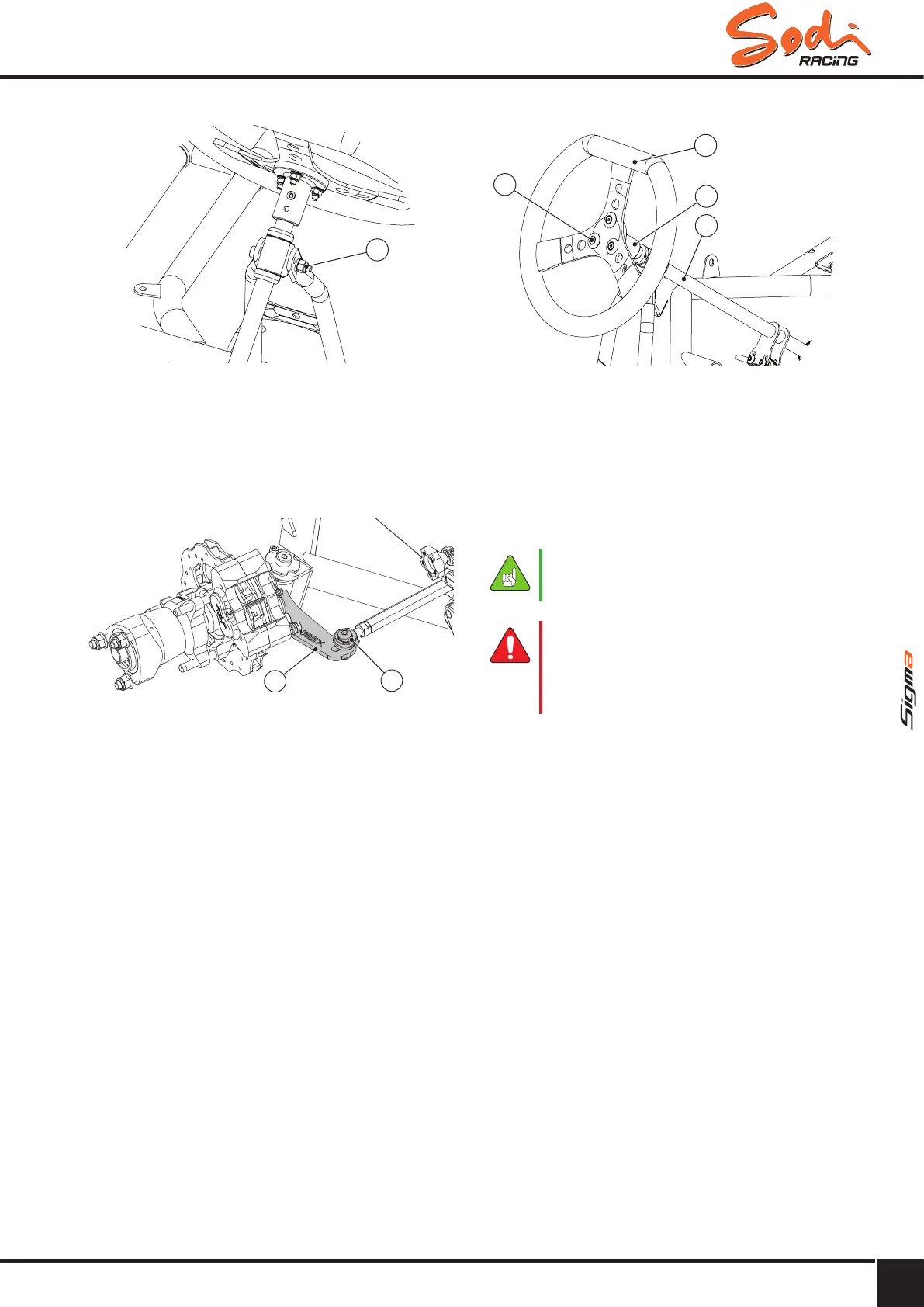

Step 3
1
Legend
1 Screw + nut
● Tighten the nut (1).
● Tighten the assembly.
Step 4
2
1
Legend
1 Ball joint
2 Stub axle arm
● Cut the tie-wrap maintaining the stub axles.
● Place the ball joints (1) above the stub axle arm (2).
● Insert the screw into the stub axle arm.
● Place the washer between the ball joint (1) and the
stub axle arm (2).
● Tighten the nut.
● Tighten the assembly.
Step 5
1
4
3
2
Legend
1 Support
2 Screw
3 Top of the wheel
4 Steering column
● Tighten the steering wheel (straight side up (3)) with
the 3 screws (2) on the steering wheel support (1).
● Tighten the steering wheel support (1) on the
steering column (4).
●● Once●the●steering●system●is●assembled,●
please●check●that●the●steering●wheel●is●free●
to●make●a●quarter●of●a●turn●right●and●left.
► A bad assembly or a bad adjustment
of the steering system can lead to
accidents. Systematically check
the tightening of the system and its
adjustment.
