Sodi Sigma DD2 User Manual

This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
15
USE SPARE PARTS OF SODI ORIGIN
User maintenance guide

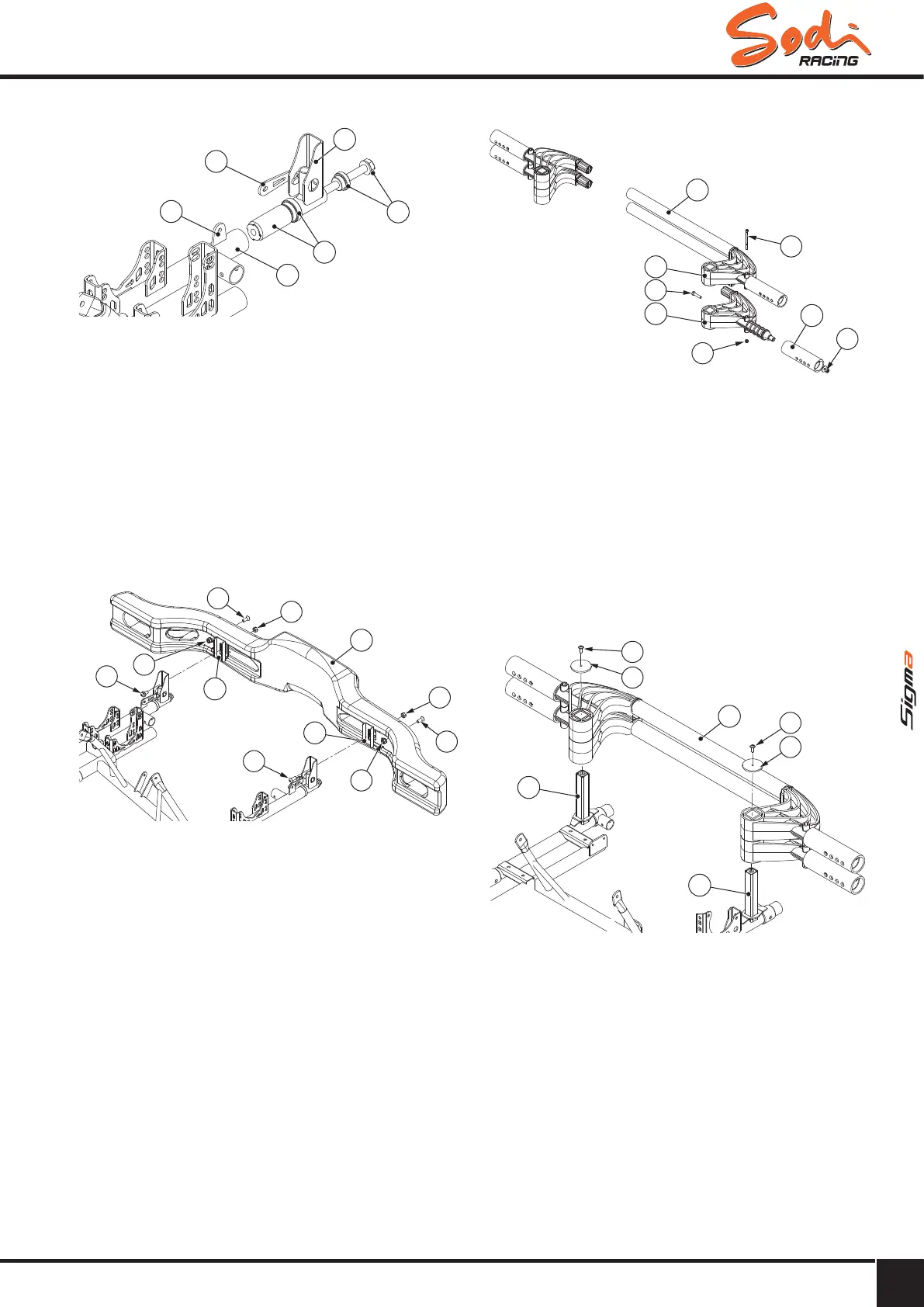

3.9 - Mounting the rear protections
5
3
1
1
4
2
Legend
1 Mounting kit
2 Bumper support
3 Tube chassis
4 Safety lug
5 Chassis lug
● Assemble the mounting kit (1) with the element of
the bumper support (2).
● Mount the assembly in the tube chassis (3), tighten
with the screw of the fixing kit (1).
● Fix the safety lug (4) on the chassis lug (5).
● Apply the same procedure for the other side.
6
7
9
9
9
9
8
8
8
6
8
Legend
6 Bumper support
7 Bumper
8 Screw + nut
9 Screw + nut
● Assemble bumper support (6) on the bumper (7)
using screws and nuts (8).
● Assemble the bumper (7) on the chassis with
screws and nuts (9).
3.10 - Mounting the rear protections DD2
2
2
5
1
3
3
4
4
Legend
1 Tire protection
2 Rear protection
3 Screw + nut
4 Screw + nut
5 Tube protection
● Assemble the tire protection (1) on the rear cover
(2), tighten using the screws and nuts (3).
● Assemble the rear protections (2) per pair and
tighten using the screws and nuts (4).
● Assemble the rear protections (2) with the 2
protection tubes (5).
8
8
7
10
9
10
9
Legend
7 Rear protection
8 Tubes chassis
9 Washer
10 Screw
● Place the rear protection (7) on the chassis tubes
(8).
● Place the washers (9) and tighten using the screws
(10).
