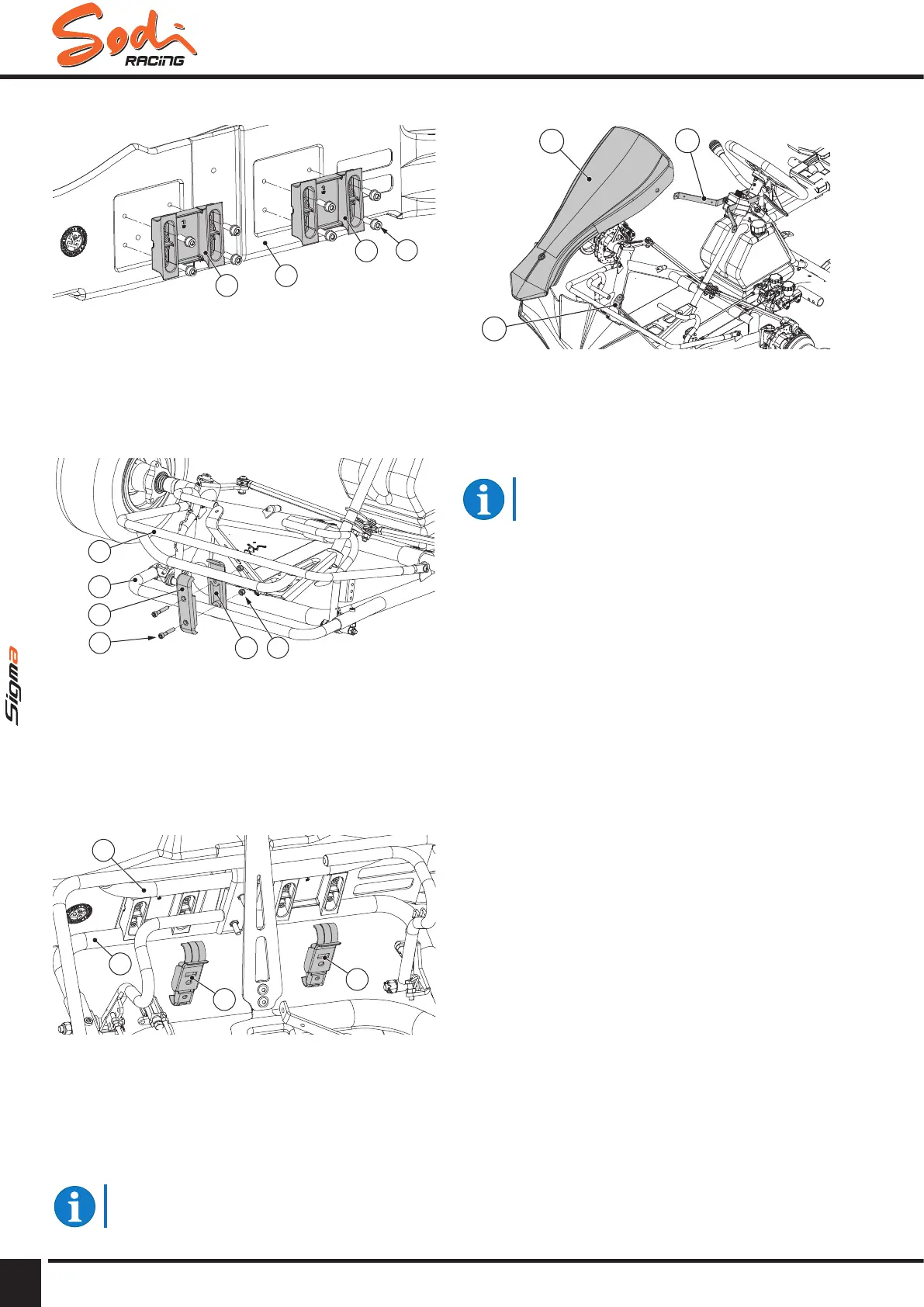

CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS
User maintenance guide
Step 5
1
2
2
3
Legend
1 Spoiler
2 Fixing plate
3 Screw
● Assemble the fixing plates (2) on the spoiler (1)
using screws (3).
Step 6
2
1
3
1
5
4
Legend
1 Mounting ange spoiler
2 Upper support
3 Lower support
4 Screw
5 Nut
● Assemble the mounting flange spoiler (1) between
the spoiler upper support (2) and the spoiler lower
support (3) with two screws and two nuts.
6
6
3
2
Legend
2 Upper support
3 Lower support
6 Staple
● Place the staples (6) between the spoiler fixations
(2) and (3).
● Tighten the assembly.
● For screws and nuts references, refer to
the spare parts.
Step 7
2
1
3
Legend
1 Nasseau panel
2 Lower support
3 Upper support
● Tighten the nasseau panel (1) on its supports (2)
and (3) with screws, nuts, and washers.
● For screws and nuts references, refer to
the spare parts.
