Sodi Sigma DD2 - Positioning of the Safety Brake Cable; Frame Stabilizers; Assembly of the Fuel Tank and of the Overflow Bottle; Always Attach the Stabilisers to the Frame with a Sleeve at each Side

This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
10
CONFIGURE THE KART ACCORDING TO THE GUIDE INSTRUCTIONS
User maintenance guide

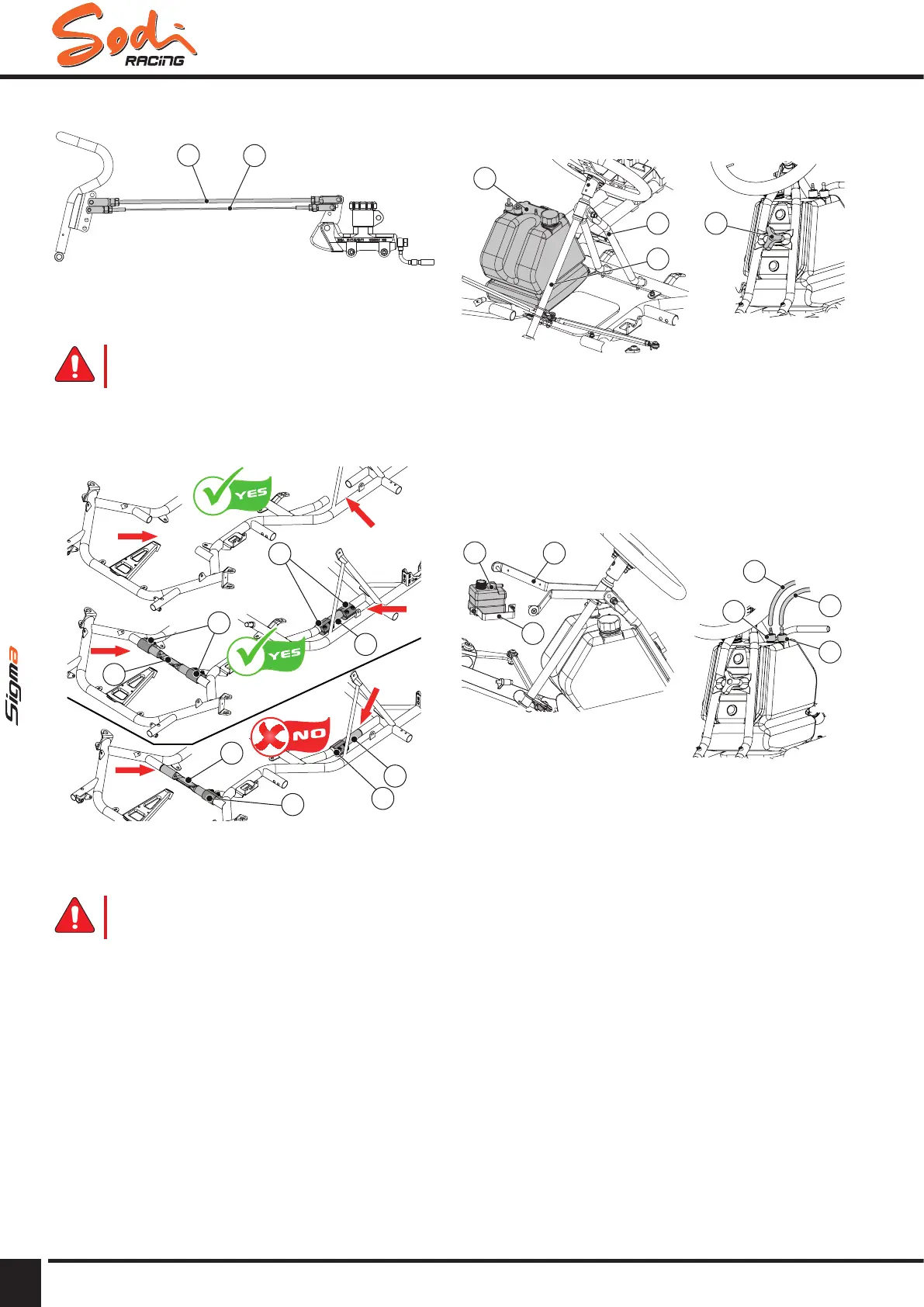

3.3 - Positioning of the safety brake cable
1
2
Legend
1 Safety cable
2 Brake rod
► Always t the safety cable clips (1)
under the staples of the brake rod (2).
3.4 - Frame stabilizers
1
1
1
1
2
2
2
2
Legend
1 Frame stabilizer
2 Stabilizer sleeve
► Always attach the stabilisers to the
frame with a sleeve at each side.
3.5 - Assembly of the fuel tank and of the
overow bottle
3
2 4
1
Legend
1 Fuel tank
2 Steering column support
3 Steering column
4 Fly nut
● Insert the fuel tank (1) between the steering column
support (2) and the steering column (3).
● Tighten the fuel tank (1) with the y nut (4).
7
9
8
10
11
5
6
Legend
5 Overow bottle
6 Nassau panel support
7 Overow bottle support
8 Overow bottle hose
9 Return
10 Petrol tank hose
11 Red plug
● Put the overow bottle (5) on the nassau panel
support (6) with the overow bottle support (7).
● Connect the overow bottle hose (8) ) to the return
(9).
● Connect the petrol tank hose (10) to the red plug
(11).
