Sodi Sigma DD2 User Manual

This document can not be reproduced or released without the Sodikart authorization.
MAN.SIG.EN.02
04/2014
13
USE SPARE PARTS OF SODI ORIGIN
User maintenance guide

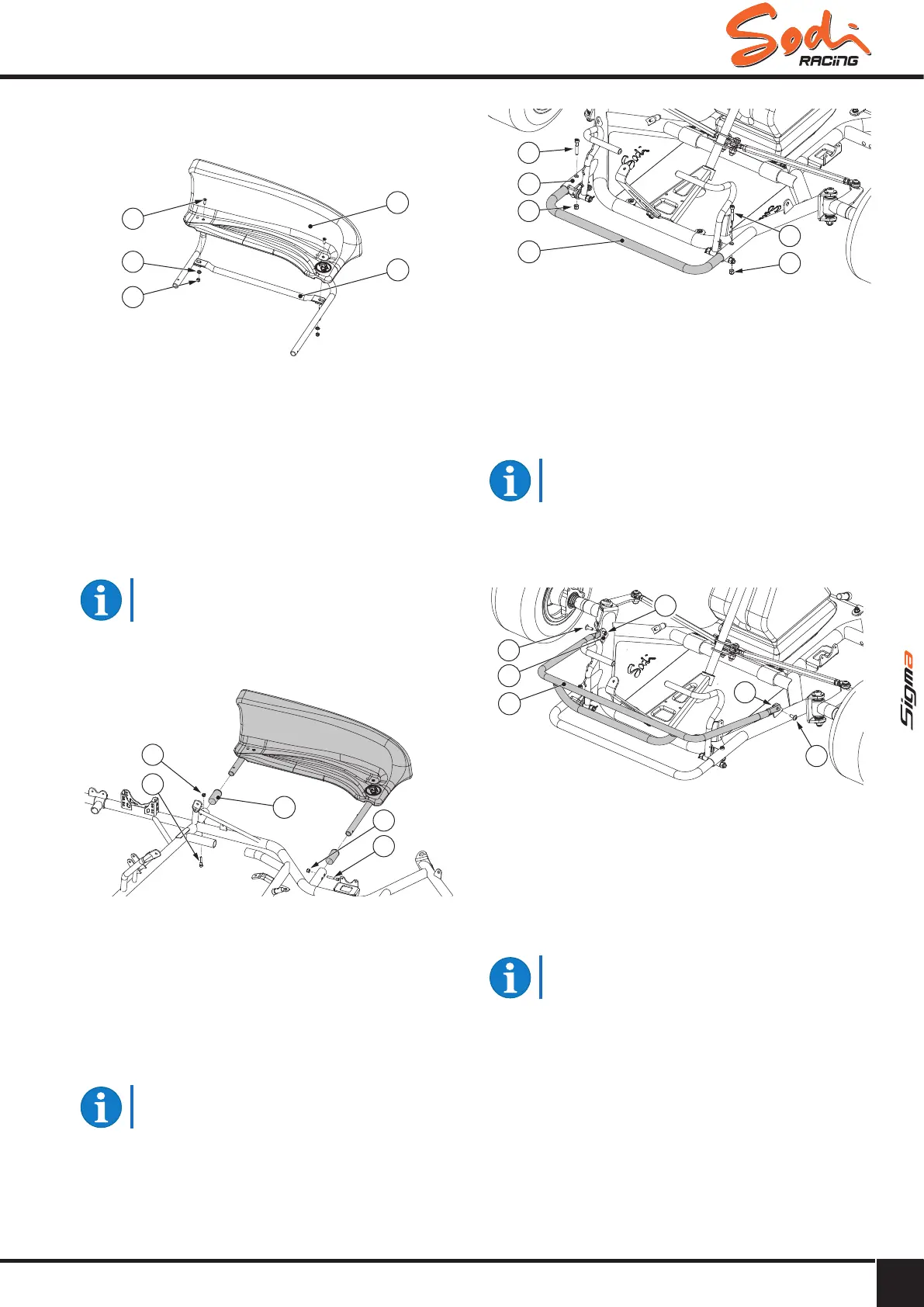

3.8 - Assembly of the bodywork
Step 1
1
2
3
4
5
Legend
1 Side pod
2 Side pod support
3 Screw
4 Washer
5 Nut
● Place the side pod (1) on the side pod support (2).
● Place the screws (3) through the side pod (1) and
the side pod support (2).
● Tighten the assembly using the nuts (5). Remember
to include the washers (4).
● For screws and nuts references, refer to
the spare parts.
Step 2
1
3
2
2
3
Legend
1 Bushing
2 Screw
3 Nut
● Insert the bushings (1) in the nozzles on the frame.
● Insert the assembly into the bushings (1).
● Drill the bushings (1) using the holes as a guide and
tighten the assembly with the screws (2) and nuts
(3).
● For screws and nuts references, refer to
the spare parts.
Step 3
1
2
3
4
4
3
Legend
1 Spoiler lower support
2 Front cross member
3 Screw
4 Nut
● Insert the spoiler lower support (1) into the front
cross member of the frame (2).
● Tighten with the screws (3) and the nuts (4).
● For screws and nuts references, refer to
the spare parts.
Step 4
1
2
3
4
4
3
Legend
1 Spoiler upper support
2 Lug
3 Screw
4 Nut
● Place the spoiler upper support (1) on the outer face
of the lug (2).
● Tighten with the screws (3) and the nuts (4).
● For screws and nuts references, refer to
the spare parts.
